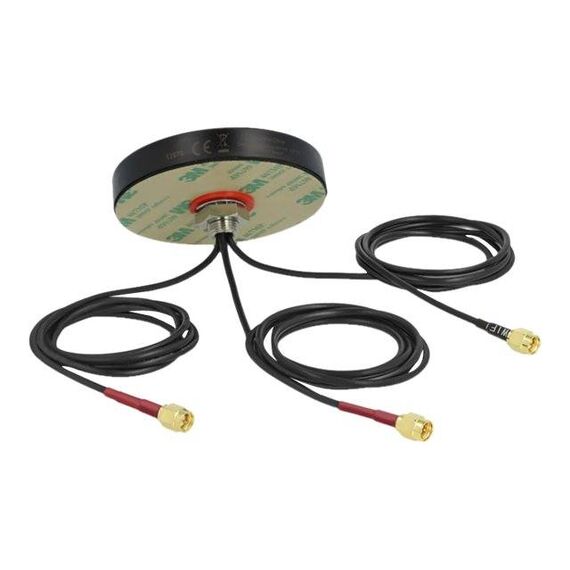

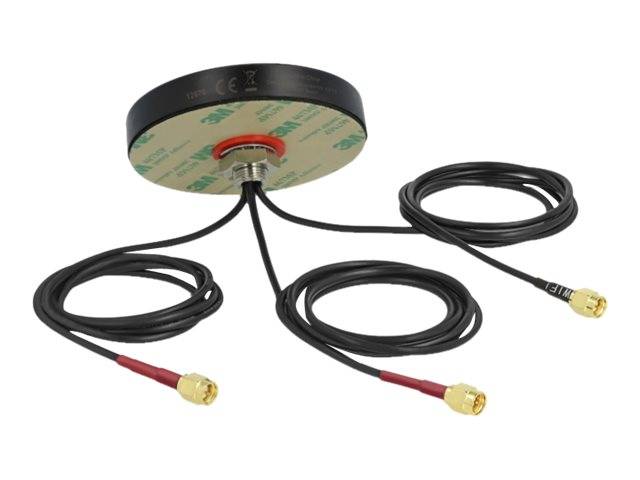

DeLOCK LTE MIMO Dual Band WLAN 802.11 ac/ax/a/h/b/g/n Antenna / Antenna / Smart Home / 3 dBi (for 2400 MHz / 2483 MHz), 3 dBi (for 4.9 / 5.825 GHz), 2 dBi (for 2.4 / 2.483 GHz), 2.5 dBi (for 4.9 / 5.825 GHz) / Indoor / Outdoor, screw mount / black | 12676
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Antenna |
| Product Material | Acrylonitrile butadiene styrene (ABS) |
| Width | 8.13 cm |
| Depth | 8.13 cm |
| Height | 1.63 cm |
| Cable Length | 1 m |
| Enclosure Colour | Black |
| Aerial | Aerial |
| Intended For | Navigation, cellular, Wi-Fi, Bluetooth, Smart Home |
| Aerial Placing / Mounting | Indoor / Outdoor, screw mount |
| Compatibility | DECT, UMTS, GSM, LTE, ISM, Bluetooth, ZigBee, Z-Wave, 802.11 a/b/g/n/ac, 802.11 h, LoRa, NB-IoT, 802.11 ax |
| Frequency Range | 4.9 - 5.825 GHz, 698 - 960 MHz, 1710 - 2690 MHz, 2400 - 2483 MHz |
| Gain | 3 dBi (for 2400 MHz - 2483 MHz), 3 dBi (for 4.9 - 5.825 GHz), 2 dBi (for 2.4 - 2.483 GHz), 2.5 dBi (for 4.9 - 5.825 GHz) |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 (for 2400 MHz - 2483 MHz), 2.0:1 (for 4900 MHz - 5825 MHz), 3.0:1 (for 698 MHz - 960 MHz), 3.0:1 (for 1710 MHz - 2690 MHz) |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Compliant Standards | RG-174 |
| Connector Provided | 1 x SMA plug ¦ 2 x SMA male |
| Miscellaneous | Miscellaneous |
| Features | IP67 protection, M12 thread, linear polarisation |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
Features - DeLOCK - 12676
More Details
Product Code
04:361158
EAN Code
4043619126767
Manufacturer
DeLOCK
