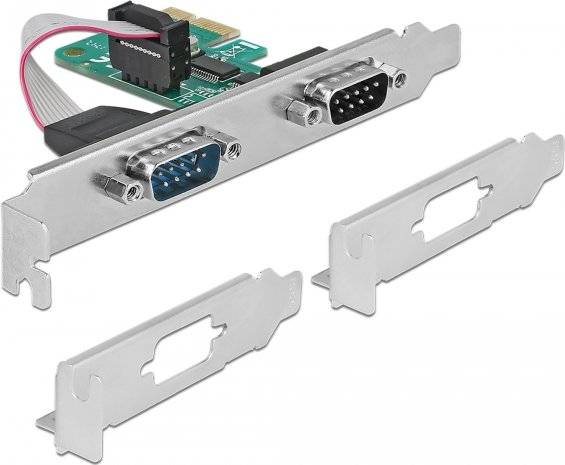

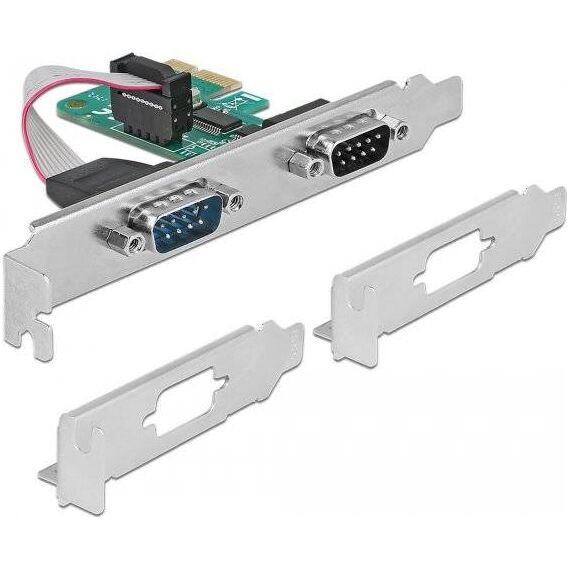

DeLock PCI Card / 2 x Serial RS-232 / PCIe | 89918
Please sign in so that we can notify you about a reply
Special Features
- FIFO 256-byte
- Ambient relative humidity maximum 95 % (non-condensing)
- 15 kV ESD protection for all signals
- I/O address and IRQ assigned by the system
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in module |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| Networking | Networking |
| Ports | RS-232 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 230.4 Kbps |
| Compliant Standards | 16C550 UART |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | Miscellaneous |
| Colour | Green |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits) |
Features - DeLOCK - 89918
More Details
Product Code
04:283547
EAN Code
4043619899180
Manufacturer
DeLOCK
