Delock PCI Express Card > 4 x Serial with voltage supply | 89306
89306
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Delock PCI Express Card > 4 x Serial with voltage supply | 89306
|

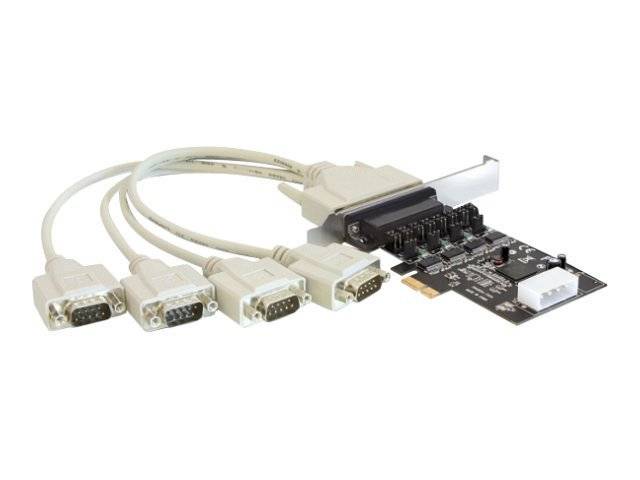

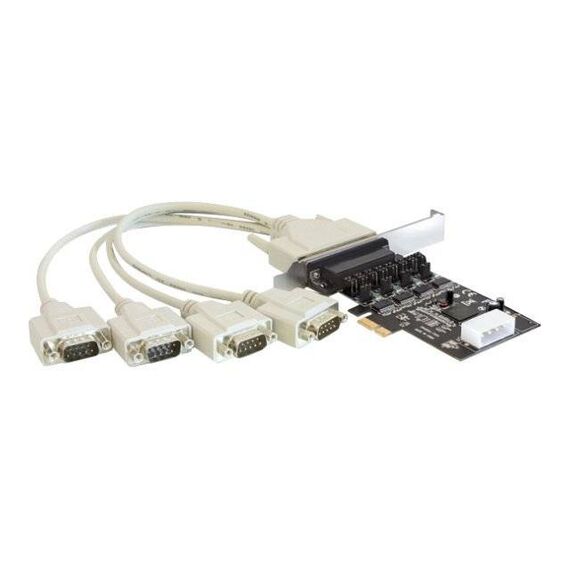

Description The DeLOCK PCI Express card expands your PC by four external serial ports. The serial ports support a voltage of 5 V and 12 V, which can be set through the jumper. Thus you do not require an additional power supply for the connected devices. Special Features
|
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 230.4 Kbps |
| Processor | 1 x OXPCIe954 - Oxford Semiconductor |
| Interfaces | 4 x RS-232 - 9 pin D-Sub (DB-9) ( on cable ) |
| Compatible Slots | 1 x PCI Express x1 |
| Included Accessories | Low-profile bracket |
| Cables Included | 1 x serial cable ( external ) |
| Package Type | Retail |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) |
Features - DeLOCK - 89306
More Details
Product Code
04:100154
EAN Code
4043619893065
Manufacturer
DeLOCK
