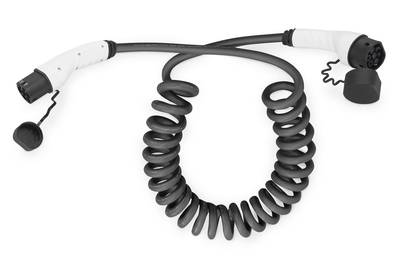

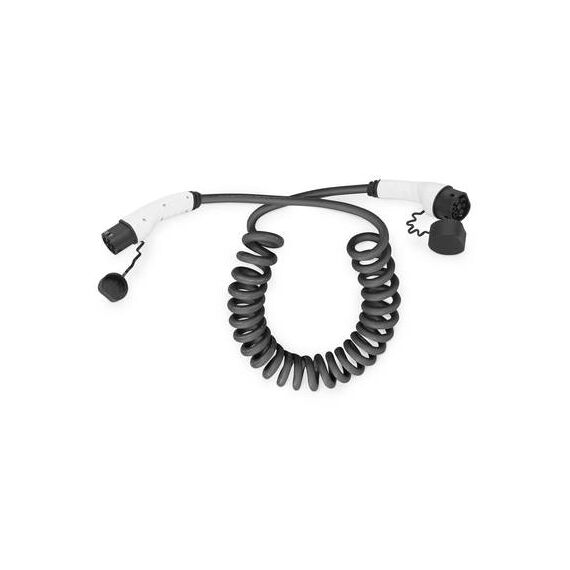

DIGITUS / Power extension cable / IEC 62196 Type 2 male protective cap to IEC 62196 Type 2 female protective cap / 10 m / black / three-phase, spiral | DK-3P32-S-100

Product Features

· Type: Spiral cable
· Length: 10 m
· Usuable length: 8 m
· Charging cable type: 5 x 6 mm² + 2 x 0,5 mm²
· Jacket: TPU
· Connector: EN 62196-2 Type 2
· Rated voltage: 400 V
· Rated power: 22 kW
· Rated current: 32 A
· Connection phases: 3
· Operating temperature: -30+50
· Protection class: IP55 (water-jet protected)

Special Features

· Easy plug and play in home wall box and also in public car charging stations
· Compact and Easy to carry - Lightweight and space-saving cable, easy to store in car boot or hang it in garage
· Safety and Durability - High quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
· Connectivity - Compatible with all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
· Charging - Supports charging processes up to max. 22 kW depending on charger device (3-phase up to max. 22kW)
· CE certified by TÜV

Product Specification

Cable Type	Power extension cable three-phase, spiral
Rated Current	32 A
Jacket Material	Thermoplastic polyurethane
Length	10 m
Recommended Use	Electric car
Features	Rated voltage: 400 V, up to max. 22 kW, 5 x 6 mm² + 2 x 0,5 mm
Colour	Black
Connectivity	Connectivity
Connector	IEC 62196 Type 2 - male - protective cap
Connector (Second End)	IEC 62196 Type 2 - female - protective cap
Miscellaneous	Miscellaneous
Compliant Standards	IP55, EN 62196-1:2014, EN 62196-2:2017
