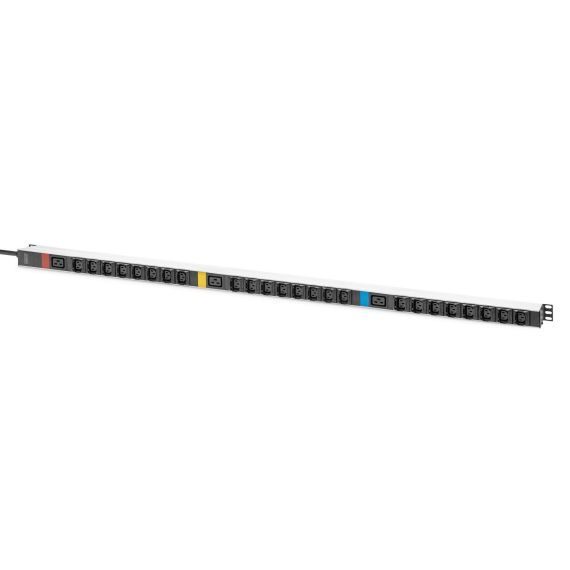

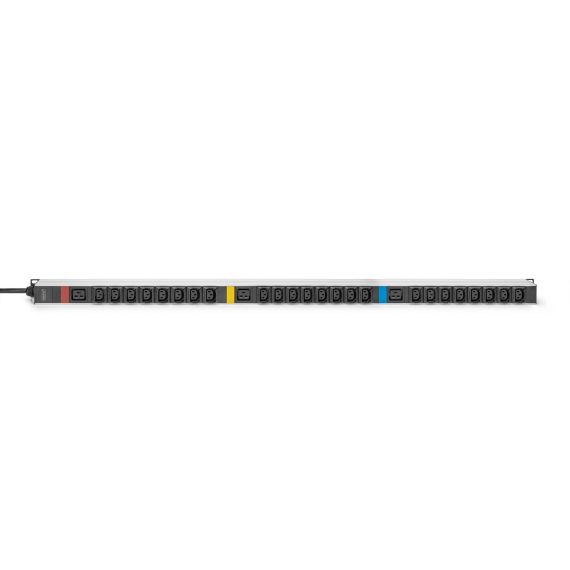

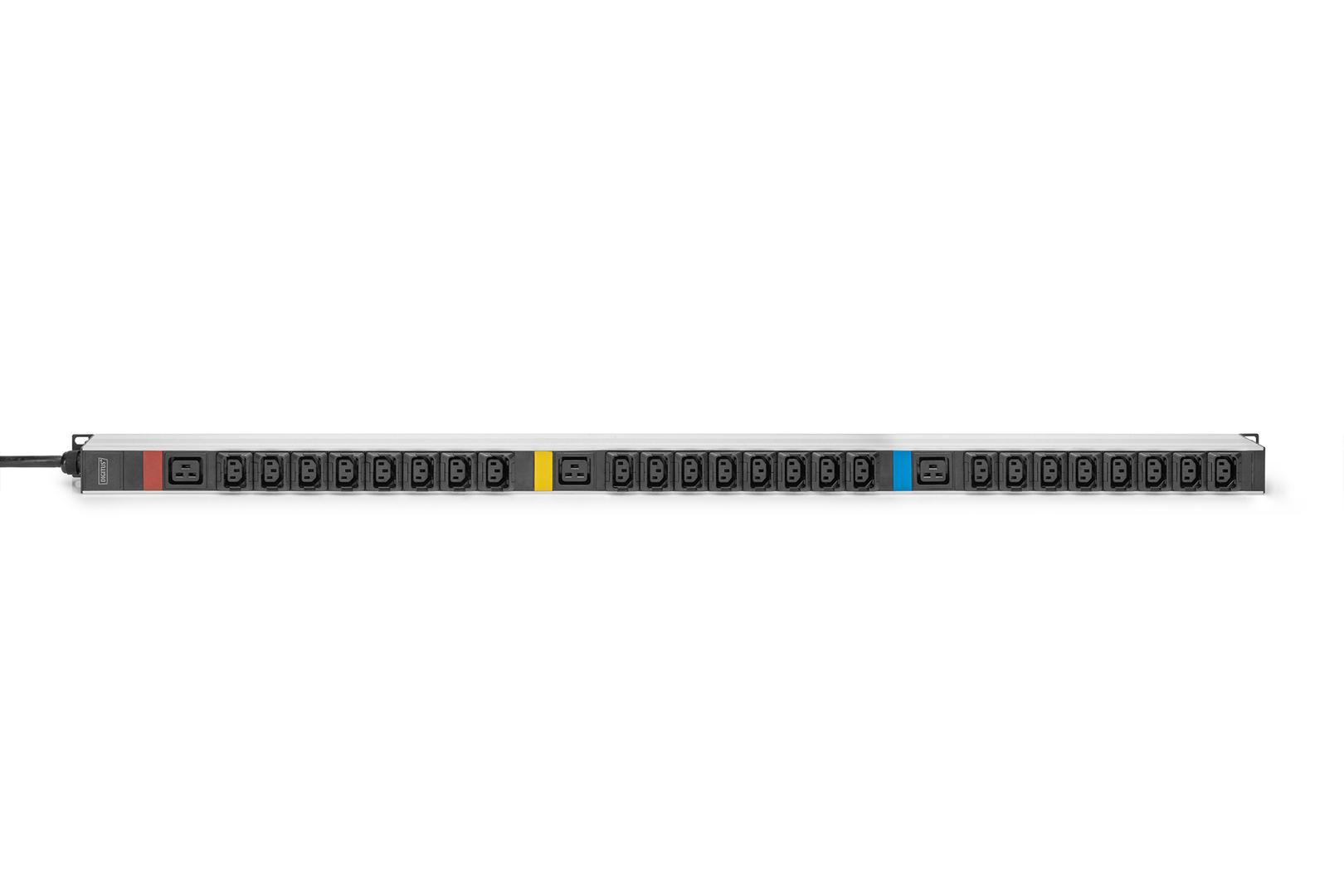

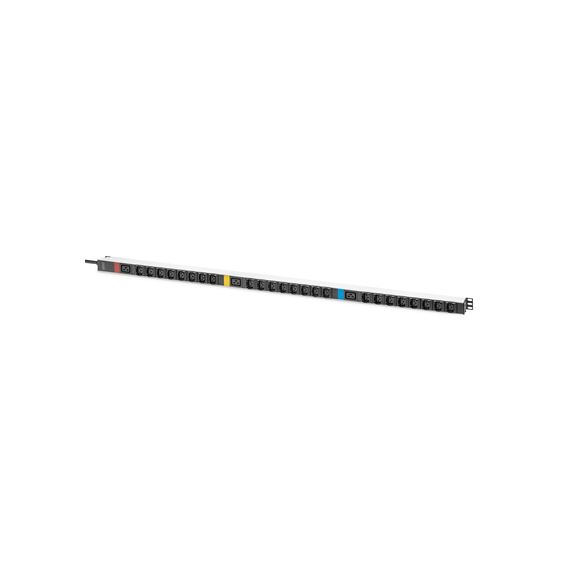

DIGITUS - Power distribution strip - 16A - AC 230 - 400 V - 4000 Watt - 11000 VA - 3-phase - input: IEC 60309 - output connectors: 27 (3 x IEC 60320 C19, 24 x IEC 60320 C13) - 0U - 19" - 3 m cord - black | DN-95452
DN-95452
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Extraction protection at each output (for C13 and C19 standard cables)· Vertical installation
· Housing: Aluminum
· Plastic components made of ABS UL-94V-0

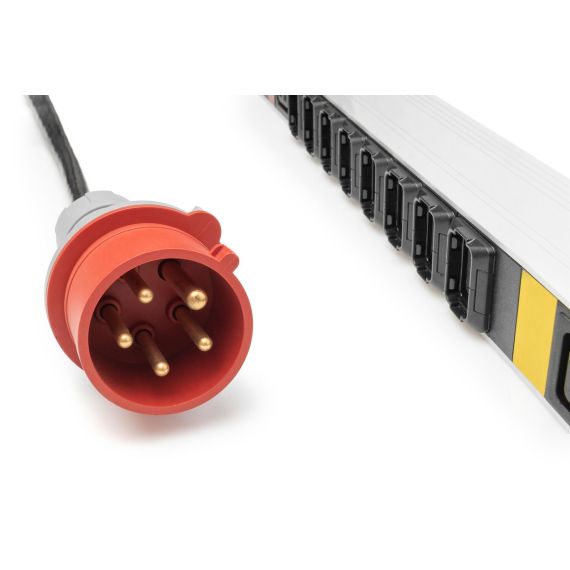

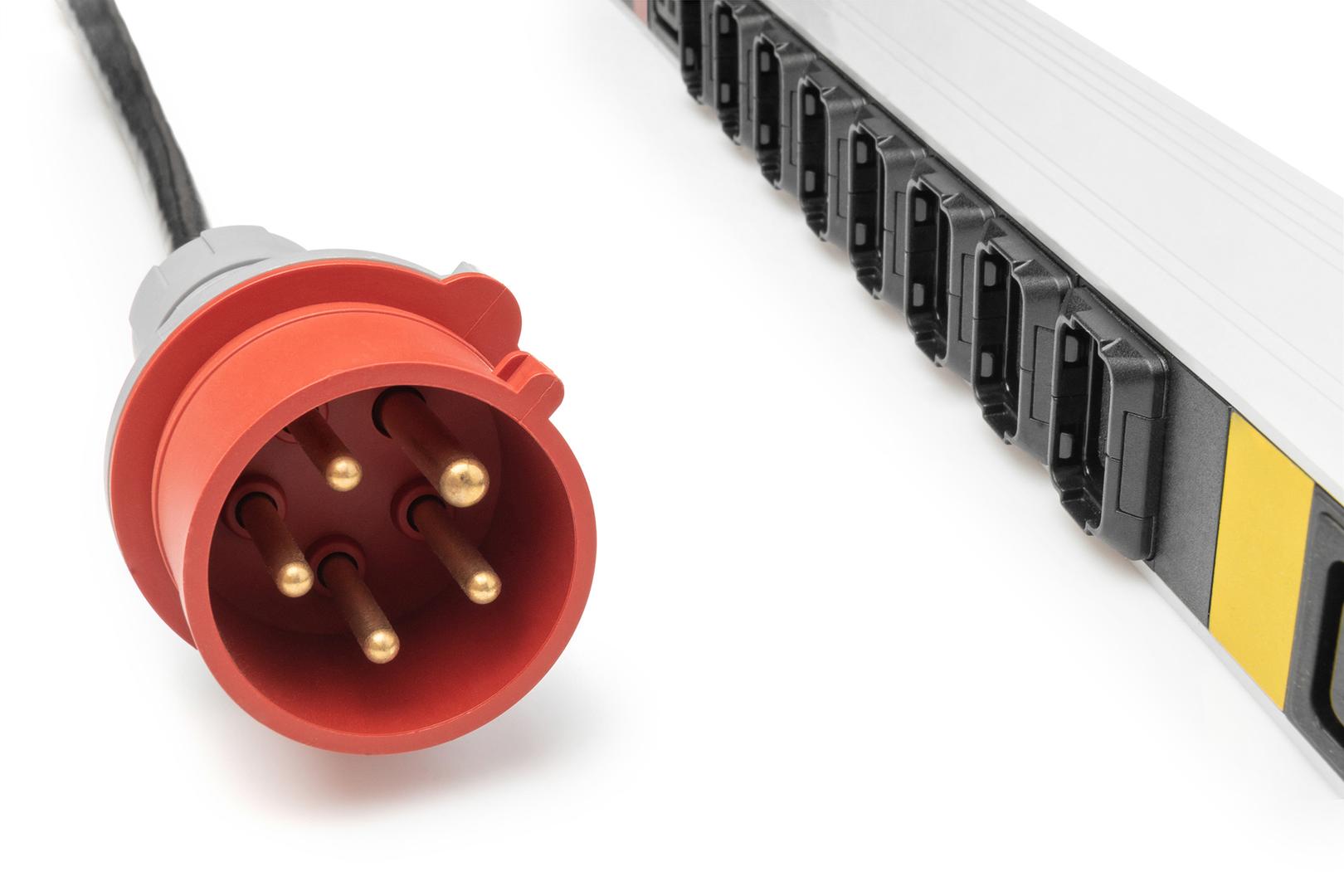

· Mains plug: IEC60309 3ph/N/PE 6h, 230 V / 16 A plug
· Cable: 3 m
· Max. Load: 4000 W / 250 V AC / 16 A (50/60Hz)

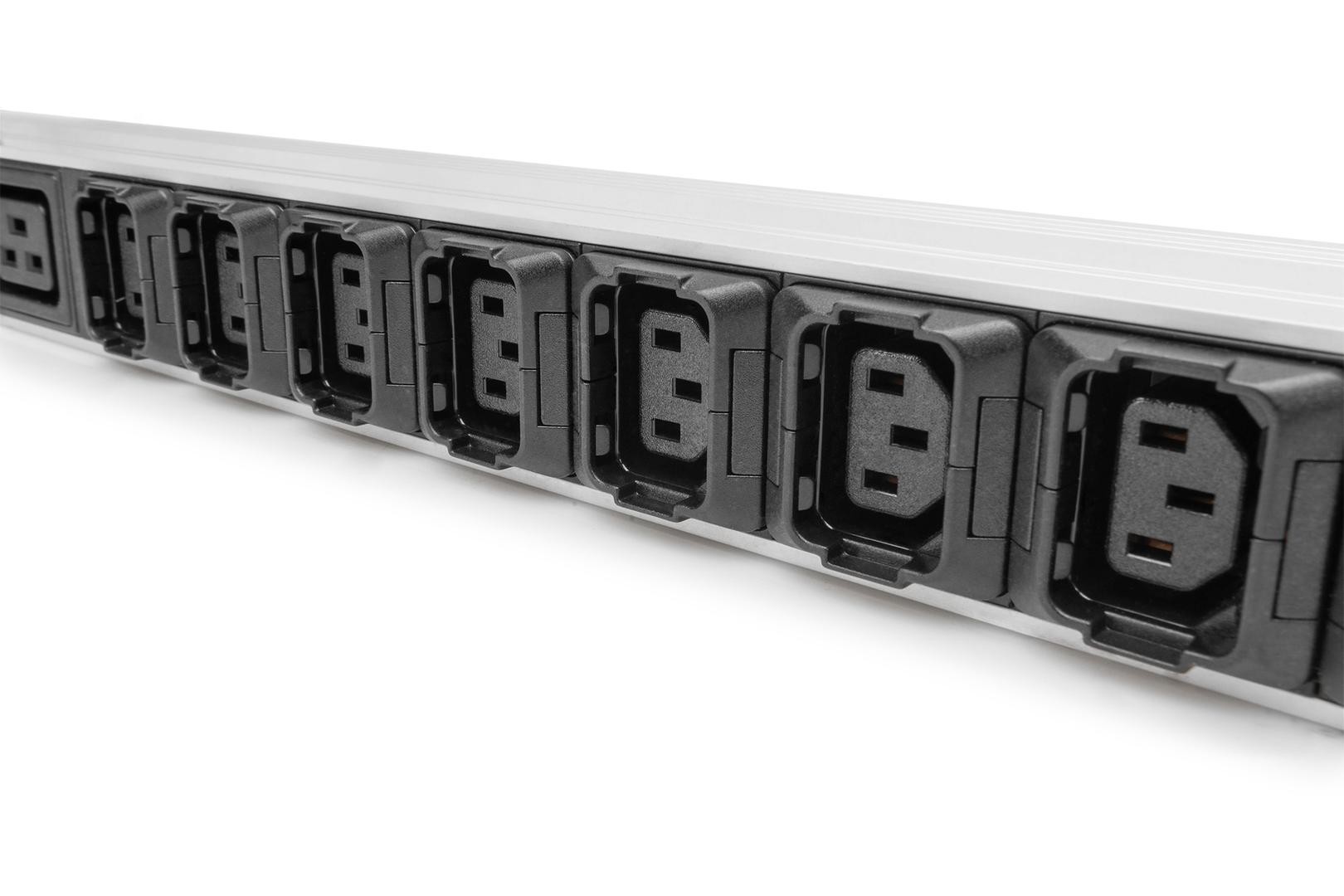

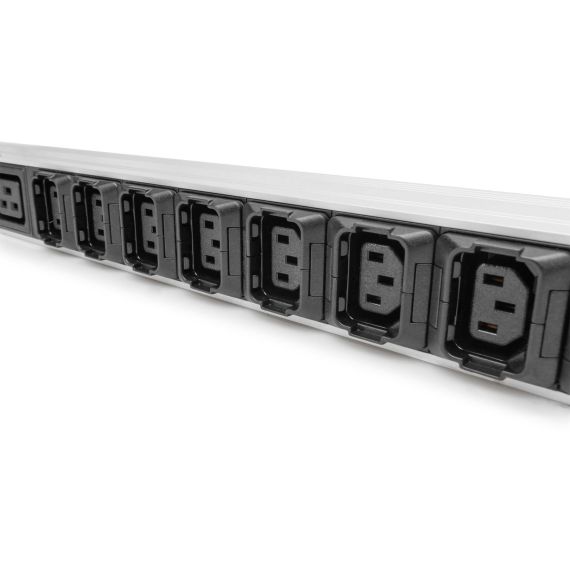

· Outlets: 24 x IEC60320 C13, 3 x IEC60320 C19
· Output power: C13 (10A), C19 (16A)
· Dimensions (L × W × D): 1288,5 x 45 x 60 mm
· Colour: Black
Special Fetures
· Optimal design for mounting in 19" racks· Reliable power distribution
· Excellent space management of the sockets

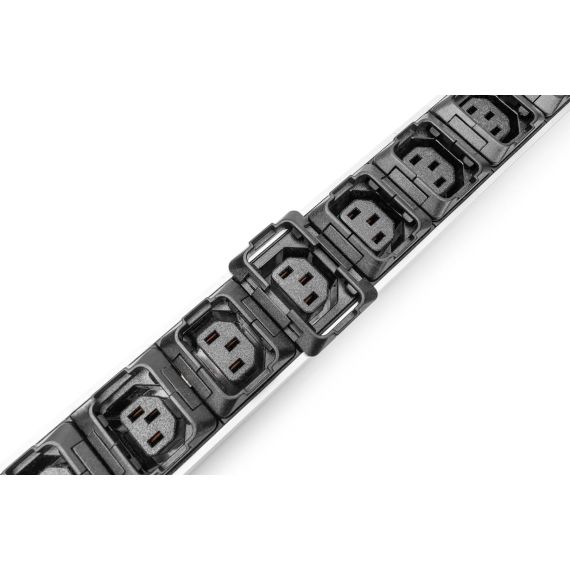

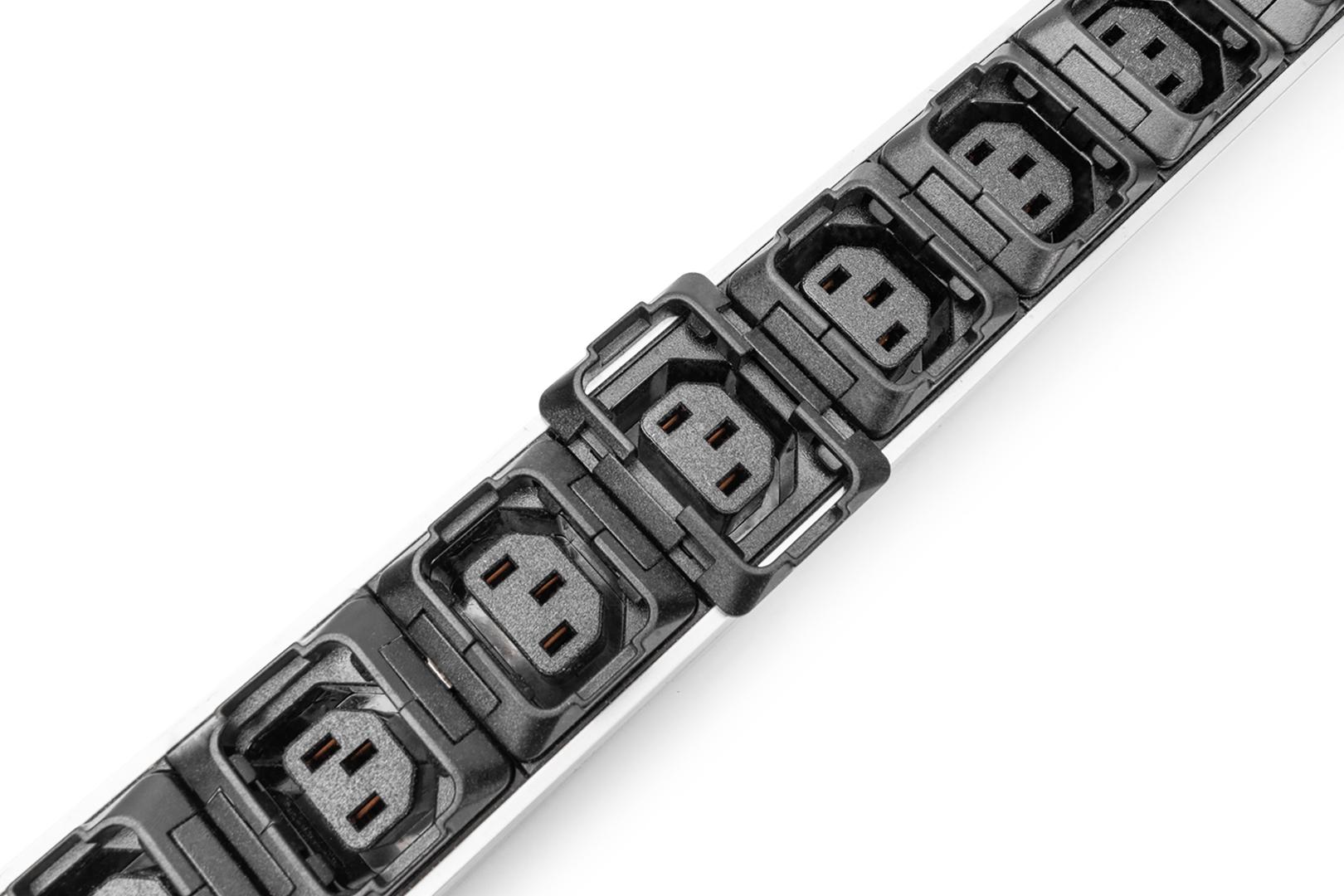

· Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging

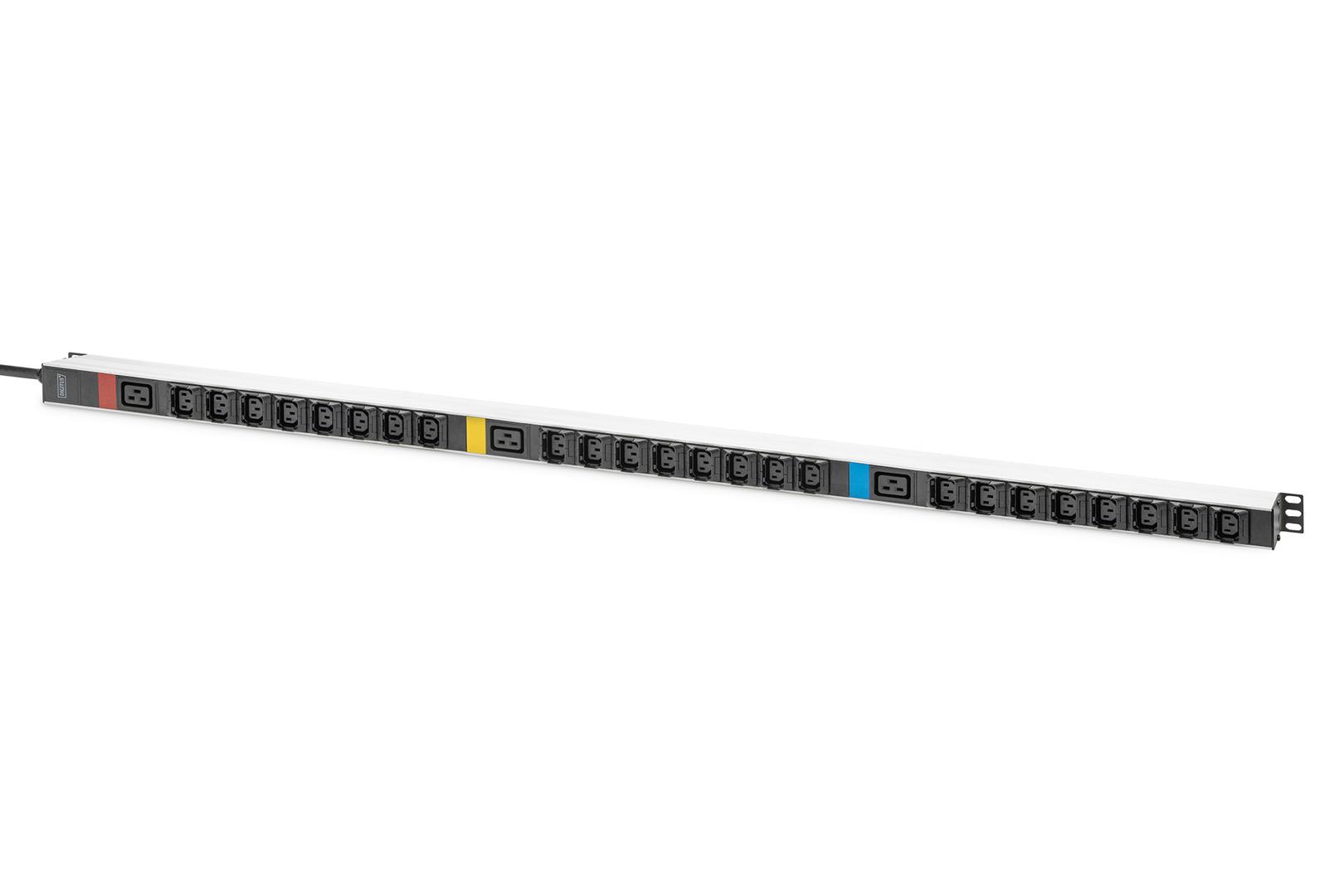

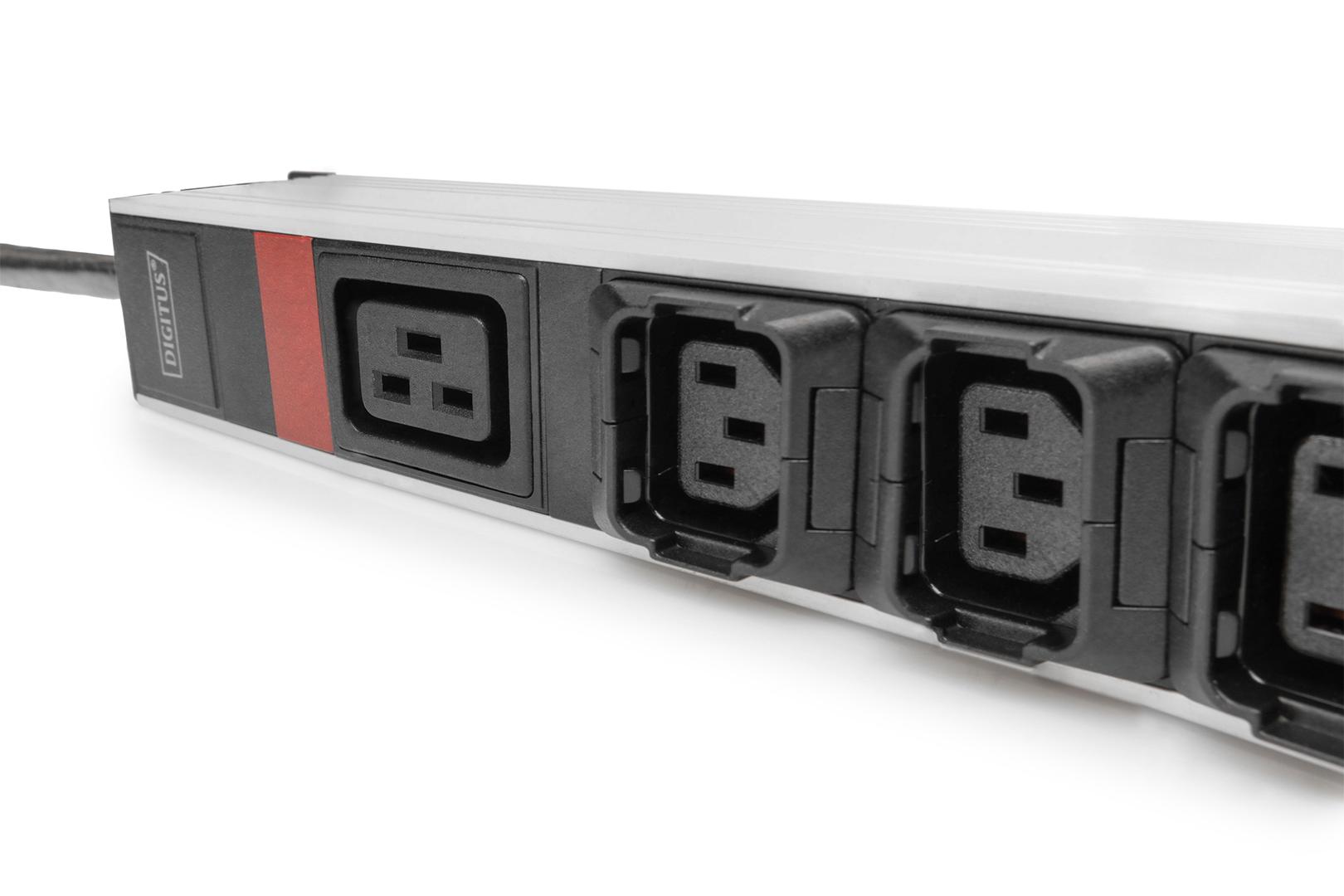

· Color indication for each phase
Product Specification
| Device Type | Power distribution strip |
| Height (Rack Units) | 0U |
| Rack Size | 19" |
| Cord Length | 3 m |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 230 - 400 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 |
| Power Output Connectors Details | 24 x power IEC 60320 C13 10 A ¦ 3 x power IEC 60320 C19 16 A |
| Output Voltage | AC 250 V 50/60 Hz |
| Max Electric Current | 16 A |
| Power Capacity | 4000 Watt / 11000 VA |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Features | Vertical orientation, colour indication for each phase, ABS plastic, aluminium enclosure, integrated extraction protection |
| Compliant Standards | UL 94V-0 |
| Dimensions & Weight | |
| Width | 4.5 cm |
| Depth | 6 cm |
| Height | 128 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14 cm |
| Shipping Depth | 7 cm |
| Shipping Height | 140 cm |
| Shipping Weight | 1.5 kg |
