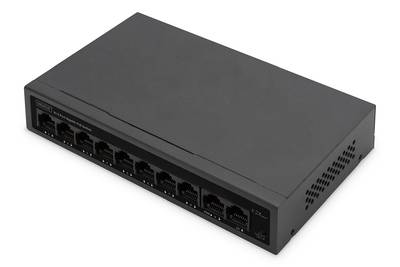

DIGITUS 8-Port Gigabit POE Network switch, Desktop, Unmanaged, 60W, af/at | DN-95357

Product Features

· Interface: 1010/100/1000Mbps auto-negotiation RJ45 port
· PoE standard: IEEE802.3af/at
· PoE port: 1~8
· PoE total: 60W
· Power supply: 65W
· Key function: CCTV
· PoE port output:Max 30W
· RJ45 PoE power supply: Mode A Anode1/2 Cathode3/6
· Indicator: PWRGreen, LNK/ACT GreenPoEOrange
· Network media: 10BASE-T: UTP category 3,4,5 cable 100m
· 100BASE-TX: UTP category 5, 5e cable 100m
· 1000BASE-T: UTP category 5, 5e cable 100m
· MAC Address Table: 2K, Automatic study, automatic updates
· jumbo frame: 9216Bytes
· Packet buffer: 2Mbit
· Transfer Mode: Store-and-forward
· Packet Forward Speed: 14.88Mpps
· Bandwidth: 20Gbps
· Device Dimension: 168*93*32mm
· green energy saving: Support IEEE802.3az
· mains input: 100~240V AC, 50/60Hz
· Operating Temperature: 0°C ~ 40 °C
· Storage Temperature: -40 °C ~ 70 °C
· Operating Humidity: 10% ~ 90% non-condensing
· Storage Humidity: 5% ~ 90% non-condensing
· Surge Protection: Common mode ±2KV, differential mode ±1KV
· MTBF: >50000 hour
· Electrostatic standard: Contact ±6KV, air ±8KV

Special Features

· Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
· Stand-up output power up to 30W
· Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control
· Panel lights to monitor working state and help fault analysis
· Perfect security mechanism
· Line-speed forwarding intelligent identification
· Support CCTV Function
· Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
· Support PD-ALIVE function

Product Specification

Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	10
Full duplex	Yes
MAC address table	2000 entries
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Power connector	AC-in jack
Power over Ethernet (PoE)	Yes
