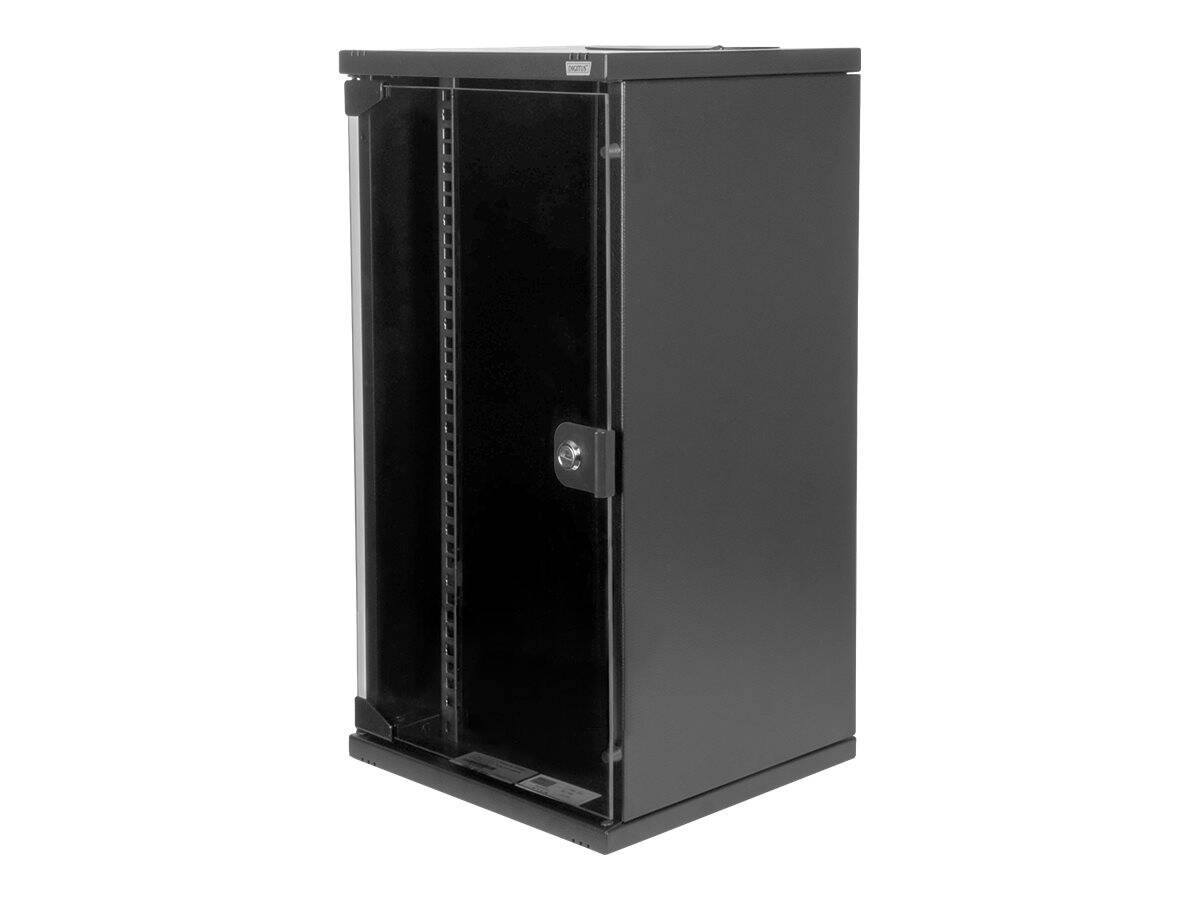

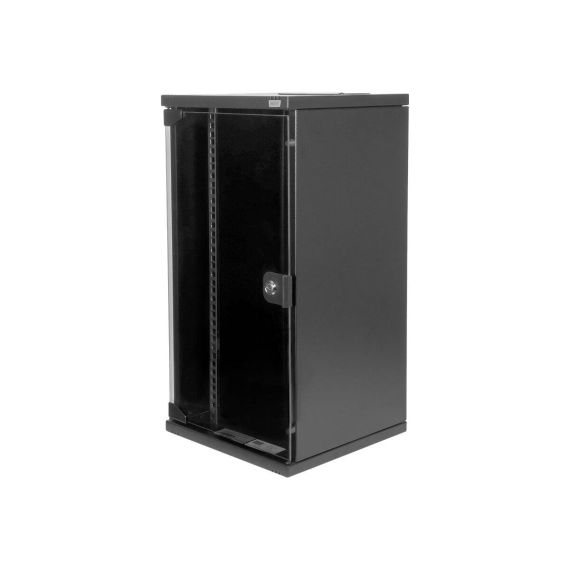

Digitus / Cabinet / wall mountable / black, RAL 9005 / 12U / 10" | DN-10-SET-3-B

Product Features

· Wall housing dimensions (H x W x D): 592 x 312 x 300 mm
· Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 4000W
· Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets
· Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
· Patch panel for applications up to 250 MHz, 1GBase-T
· Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A & B

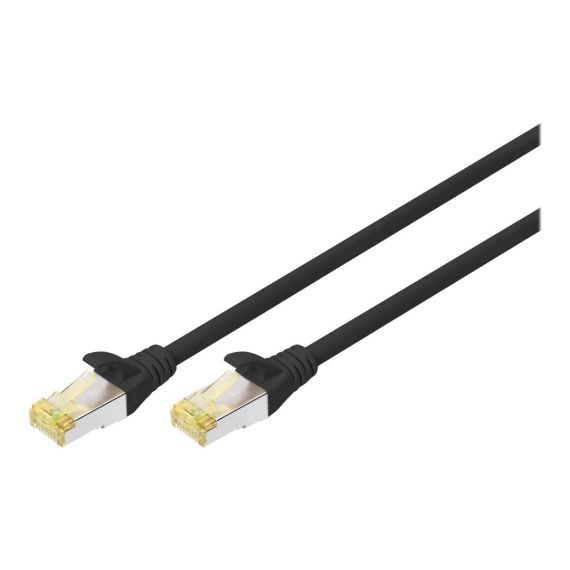

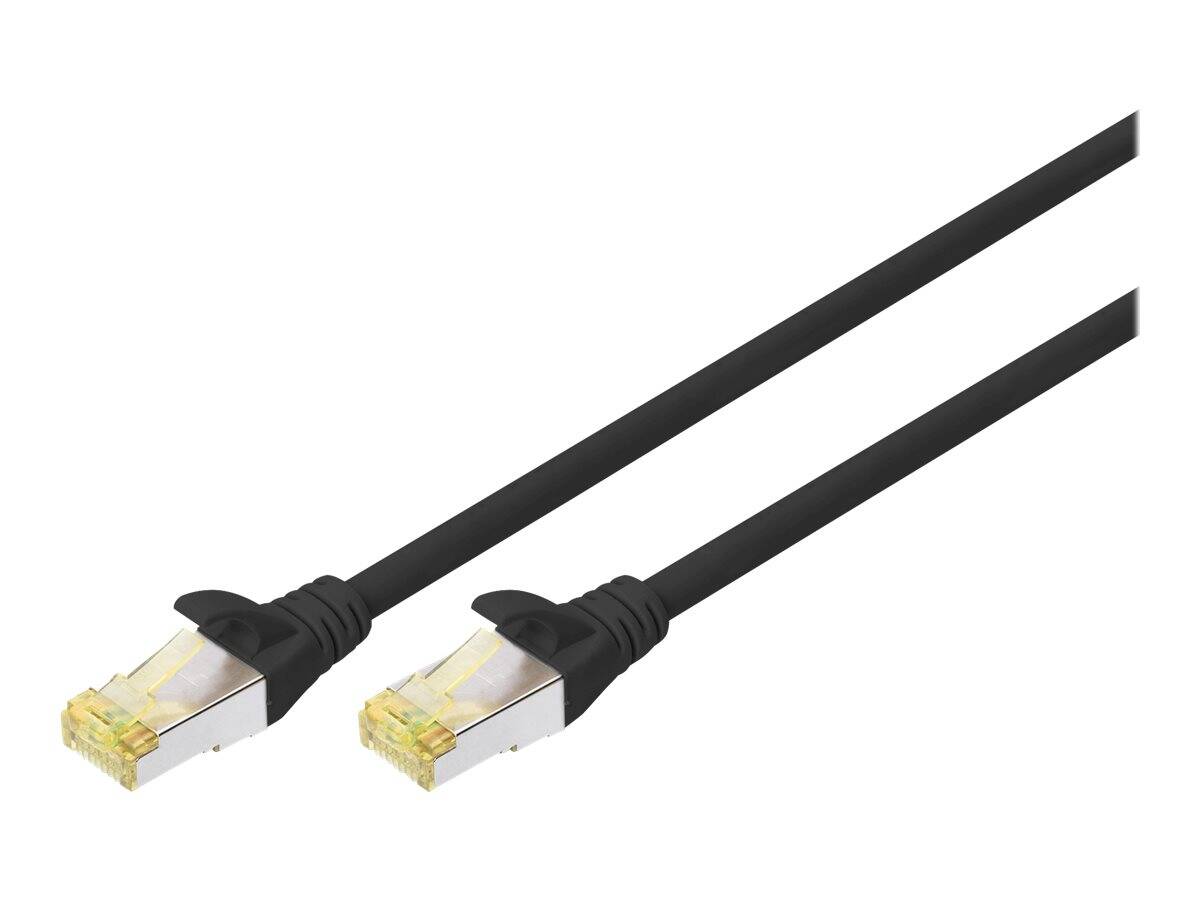

· CAT 6 S-FTP Patch Cable, Cu, LSZH AWG 27/7, Length 1 m, Color black
· 1 rack unit dummy cover plate, 45 x 255 x 10 mm, black (RAL 9005)
· 0.5 rack unit cable brush strip, 22 x 254 x 12 mm, black (RAL 9005)

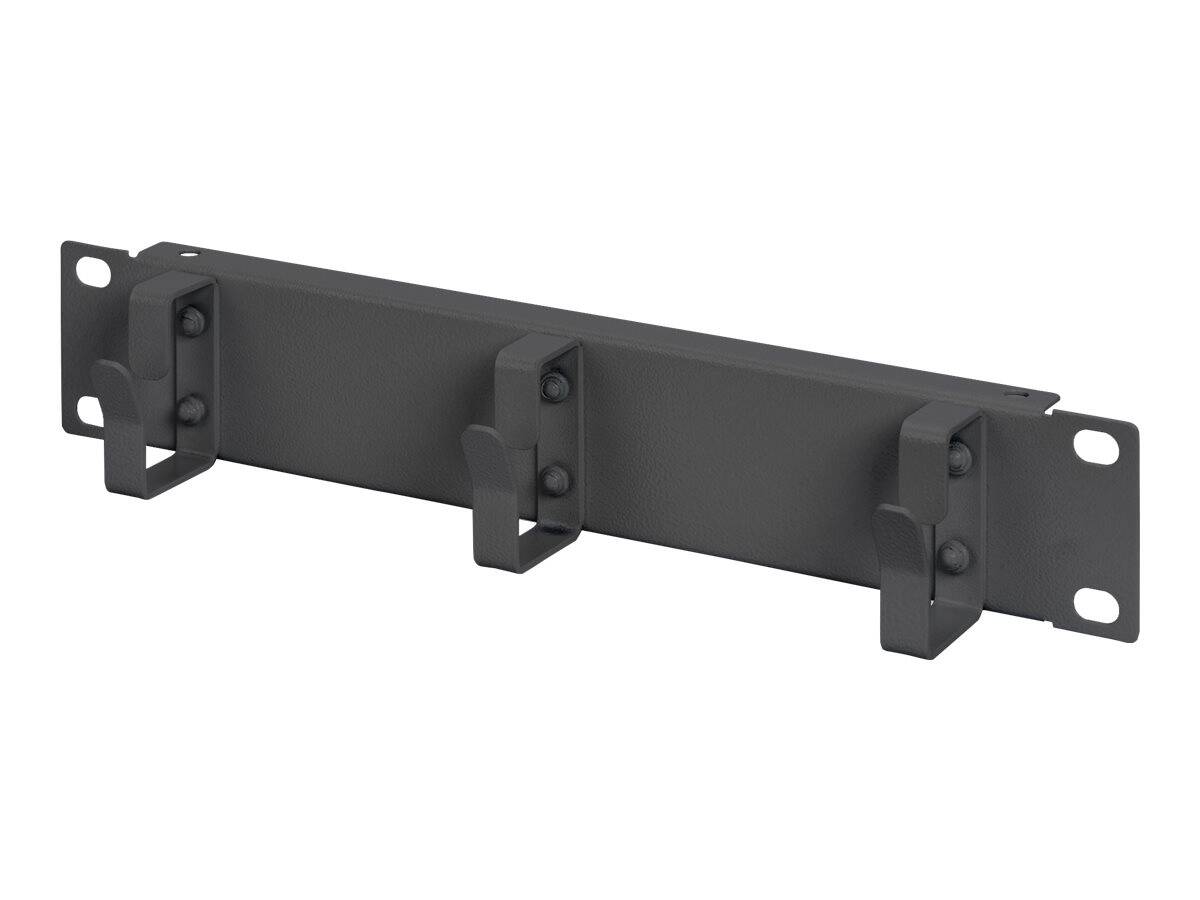

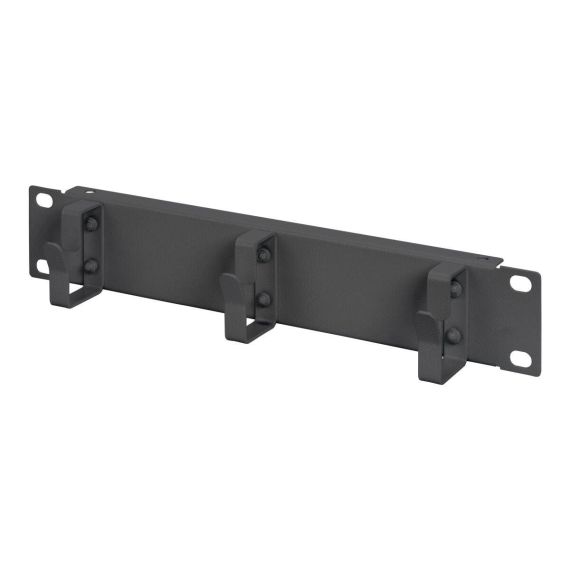

· 1 rack unit cable management panel, 3x cable rings, 44x254x60 mm, black (RAL 9005)

Special Features

· Including wall housing, 12HE, 592 x 312 x 300 mm (DN-10-12U-B)
· Including shelf, 1HE (DN-10 TRAY-1-B)
· Including power strip, 1HE, 3x safety socket (DN-95411)
· Including Gigabit Ethernet Switch, 8-port (DN-80114)
· Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S)
· Including 10 x CAT 6, Cable E, S-FTP patch cable, 1 m (DK-1644-010/BL)
· Including dummy cover, 1 rack unit (DN-10-BPN-01-B)
· Including cable brush strip (DN-10-ORG-1-2U-B)
· Including cable management panel (DN-10-ORG-1U-B)

Product Specification

Product Type	Cabinet
Placing / Mounting	Wall mountable

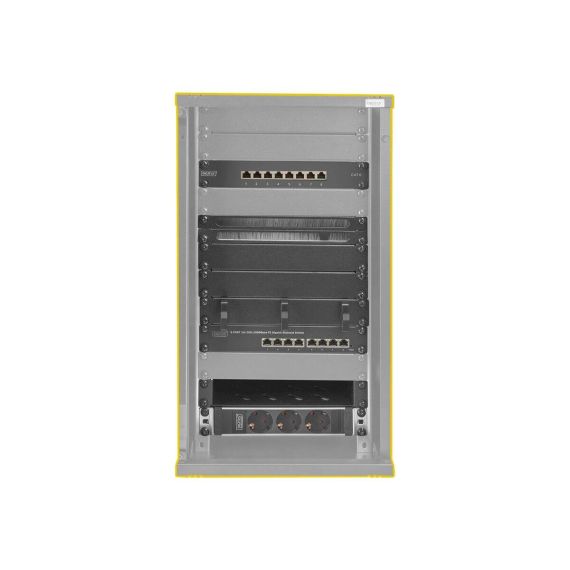

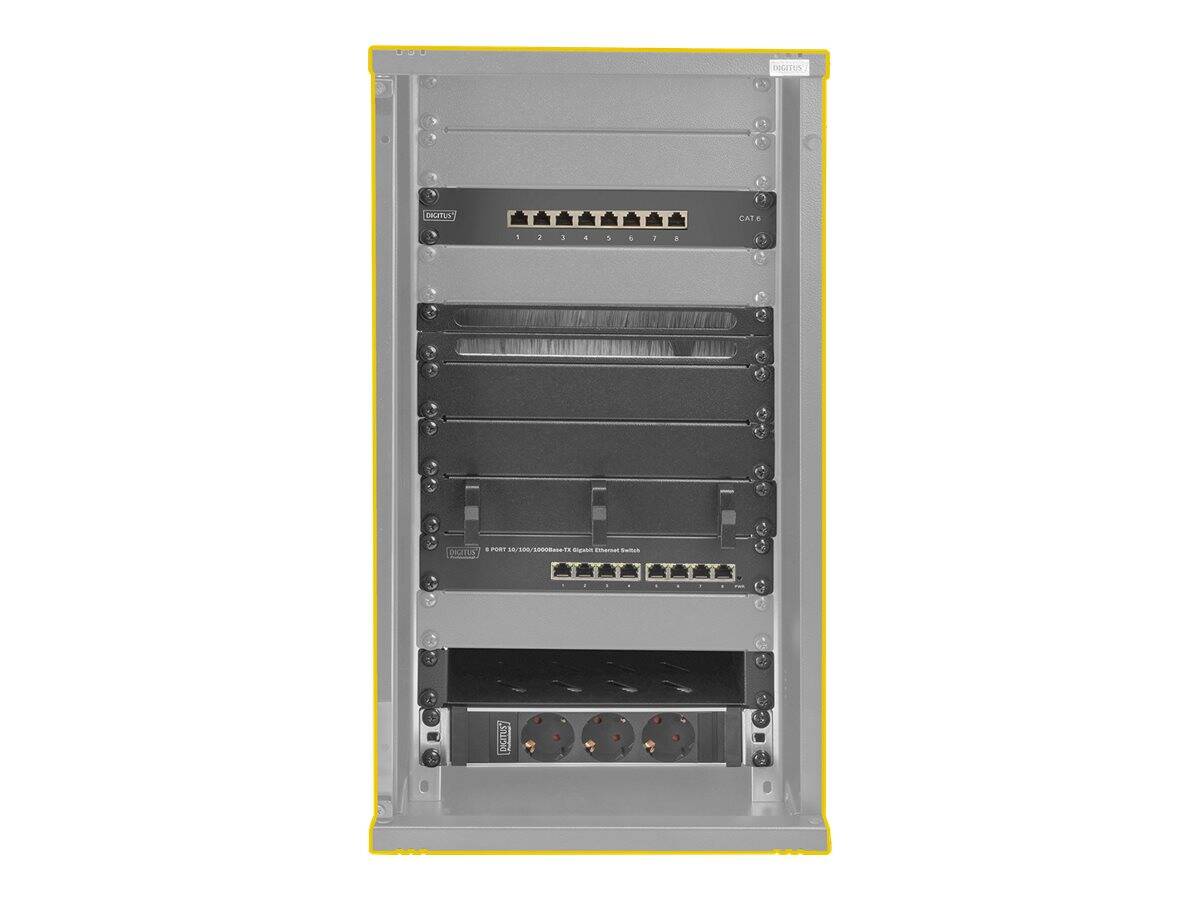

Package Content	Brush strip, network switch, power strip, rack shelf, rack cable management panel, dummy cover, patch panel (8 ports), 10 x Cat 6 patch cable
Rack Size	10"
Height (Rack Units)	12U
Width	31.2 cm
Depth	30 cm
Height	59.2 cm
Colour	Black, RAL 9005
Miscellaneous	Miscellaneous
Weight Limit	30 kg
Features	Glass front door, single opening
Compliant Standards	IP20, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
