Digitus / Cabinet / wall mountable / black, RAL 9005 / 9U / 10" | DN-10-SET-2-B
Product Features
· Wall housing dimensions (H x W x D): 464 x 312 x 300 mm
· Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 4000W
· Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets
· Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
· Patch panel for applications up to 250 MHz, 1GBase-T
· Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A & B

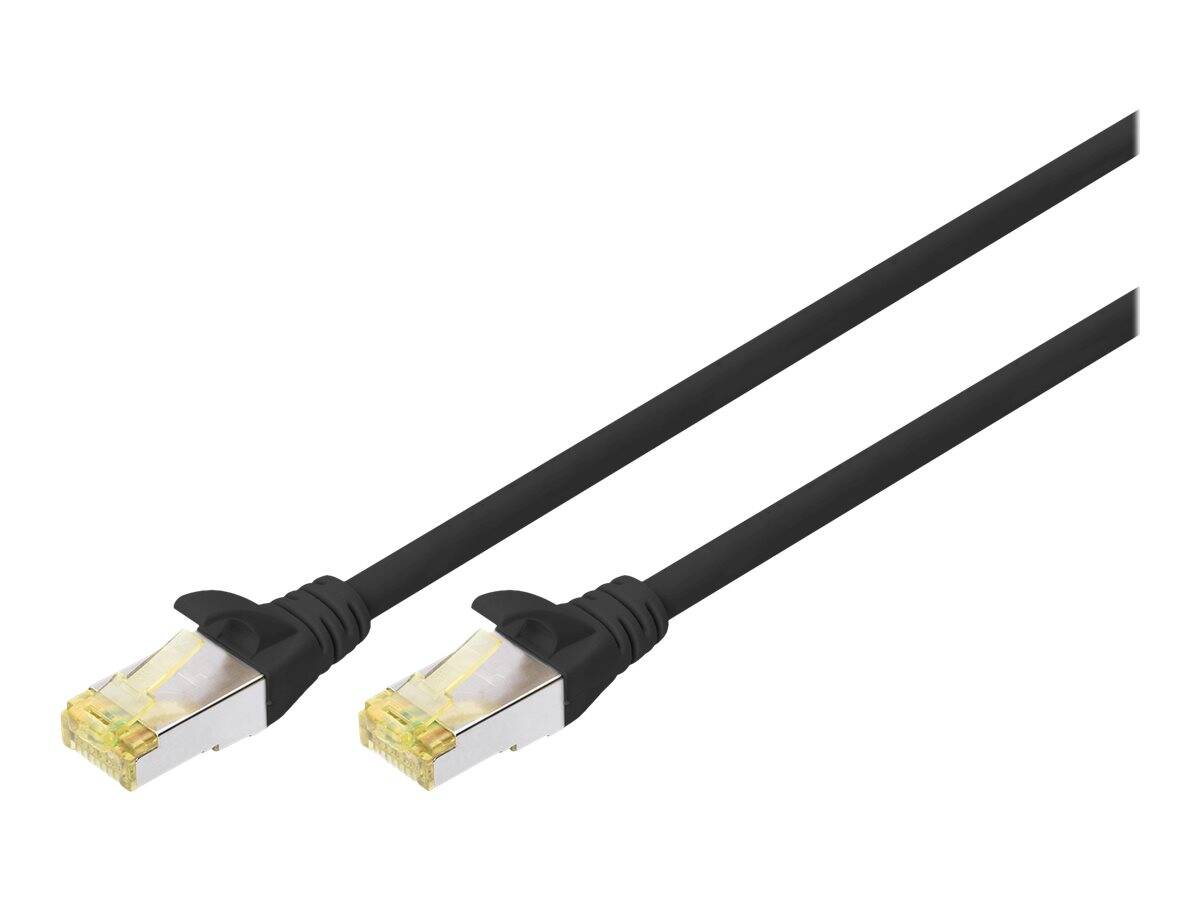

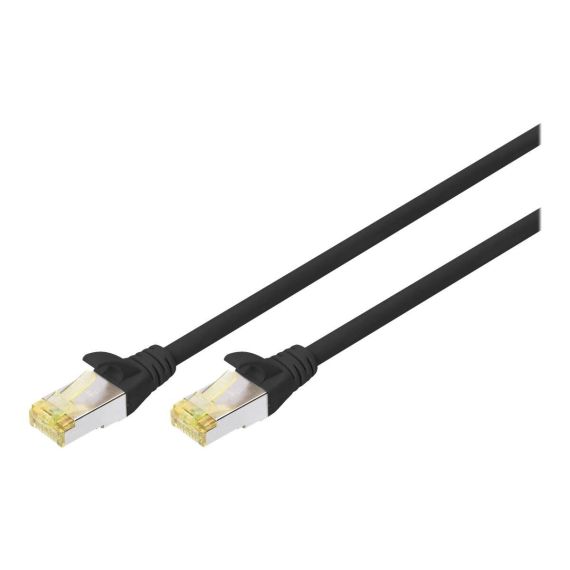

· CAT 6 S-FTP Patch Cable, Cu, LSZH AWG 27/7, Length 1 m, Color black
Special Features

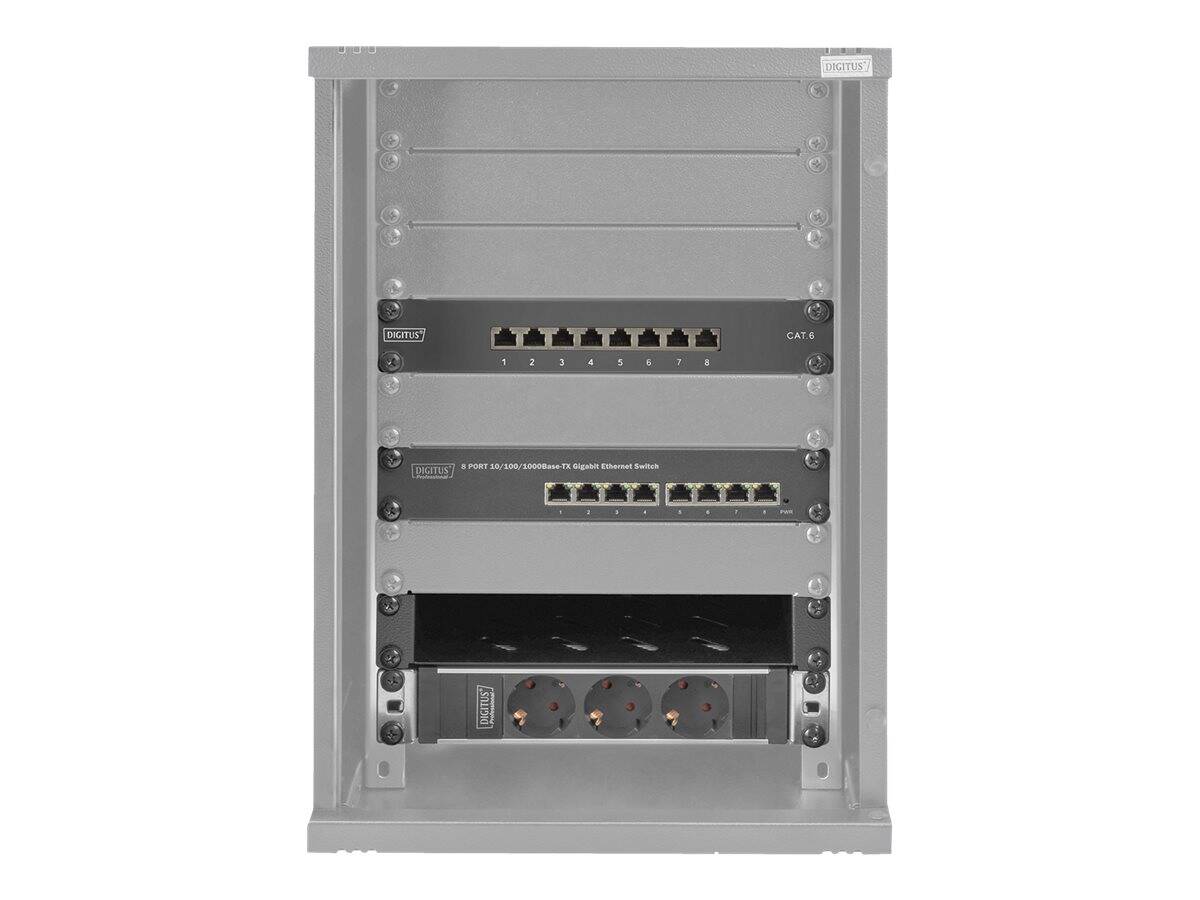

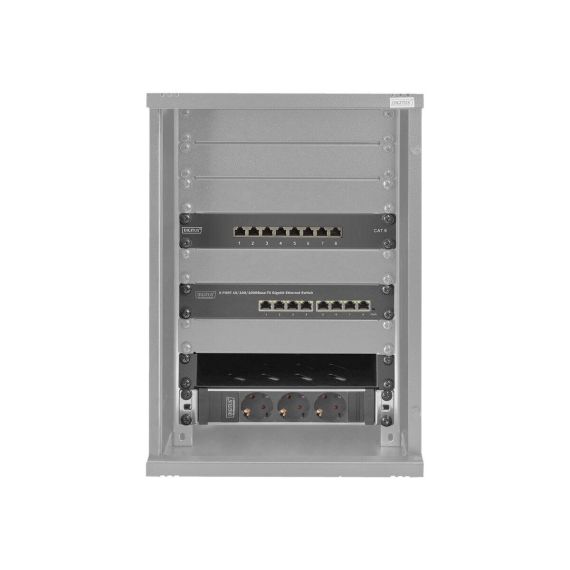

· Including wall housing, 9HE, 464 x 312 x 300 mm (DN-10-09U-B)
· Including shelf, 1HE (DN-10-TRAY-1-B)

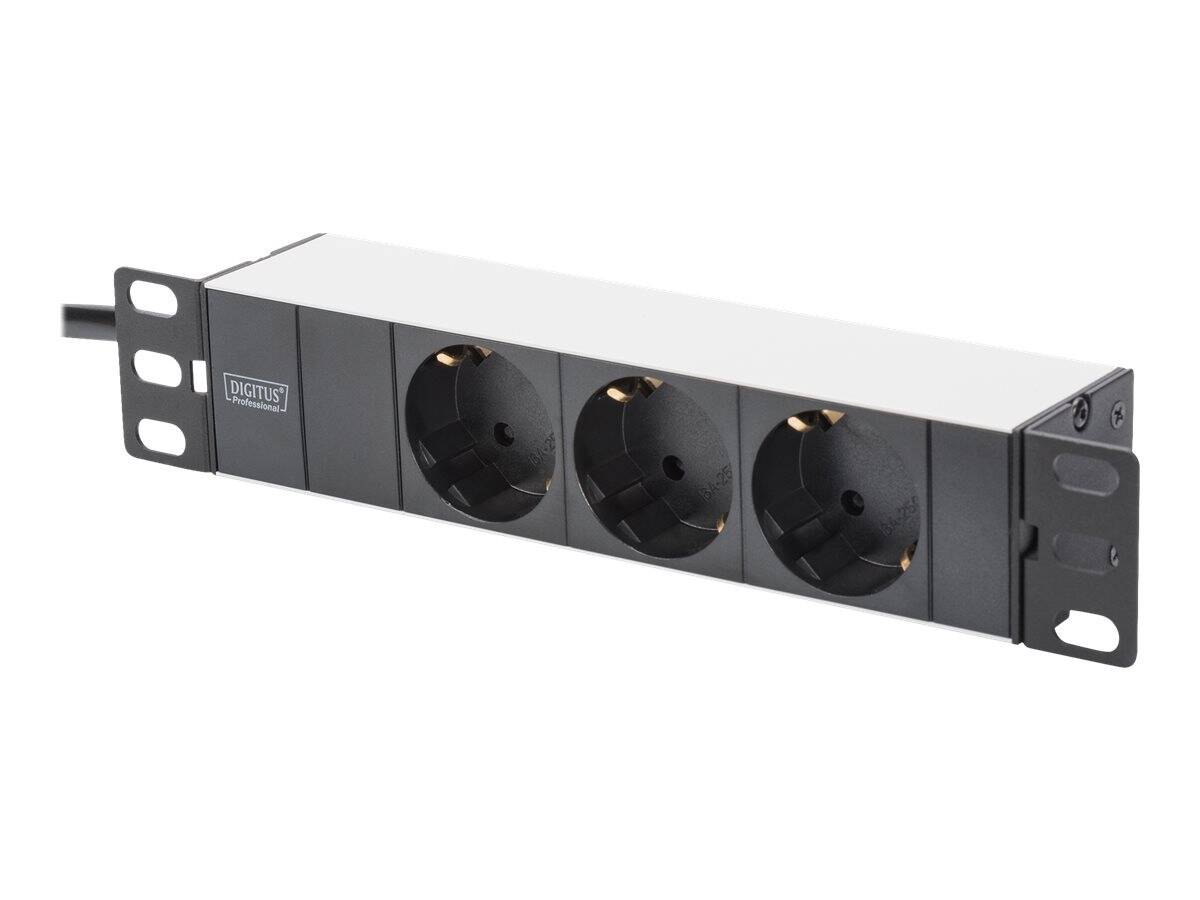

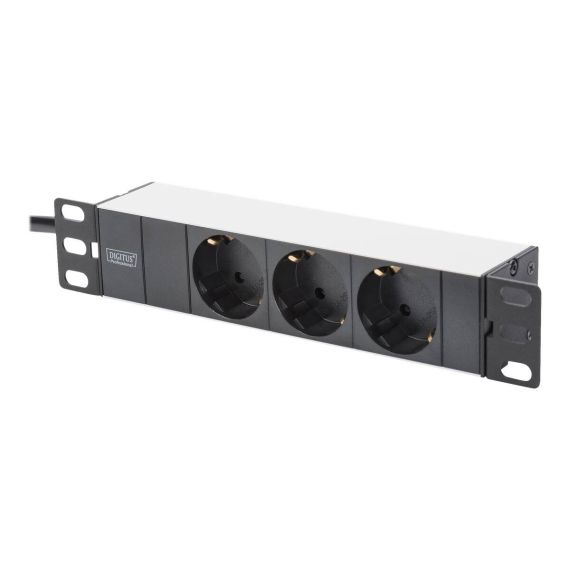

· Including power strip, 1HE, 3x safety socket (DN-95411)
· Including Gigabit Ethernet Switch, 8-port (DN-80114)

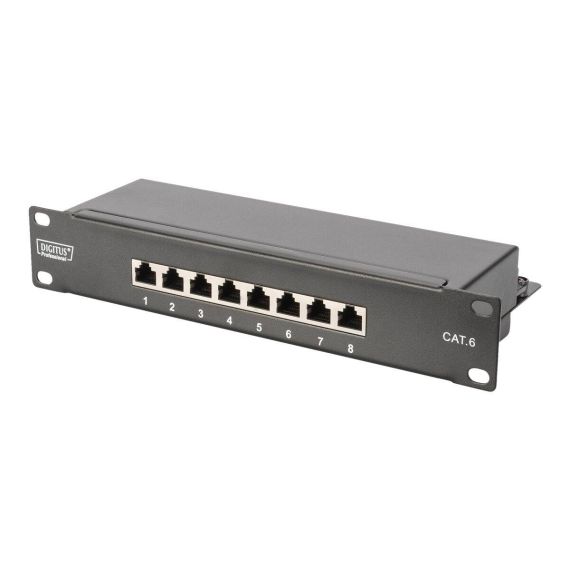

· Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S)
· Including 10 x CAT 6, Cable E, S-FTP patch cable, 1 m (DK-1644-010/BL)
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Package Content | Network switch, power strip, rack shelf, patch panel (8 ports), 10 x Cat 6 patch cable |
| Rack Size | 10" |
| Height (Rack Units) | 9U |
| Width | 31.2 cm |
| Depth | 30 cm |
| Height | 46.4 cm |
| Colour | Black, RAL 9005 |
| Miscellaneous | Miscellaneous |
| Weight Limit | 30 kg |
| Features | Glass front door, single opening |
| Compliant Standards | IP20, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
