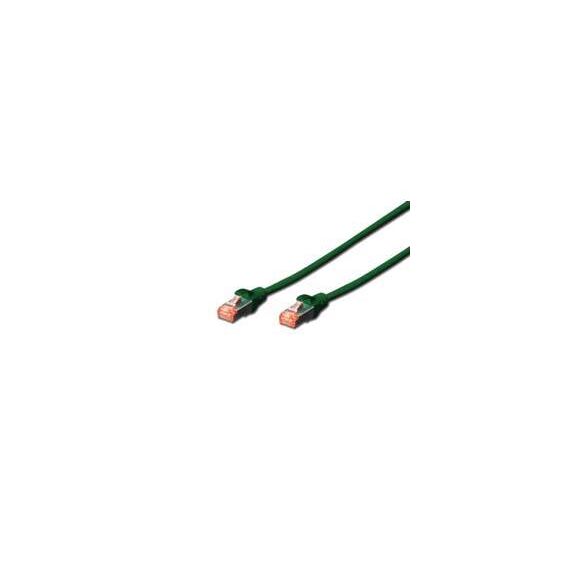

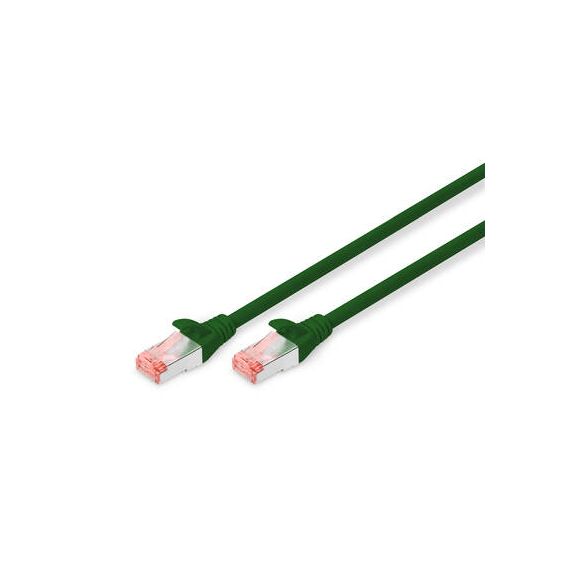

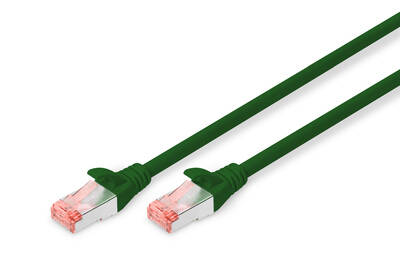

DIGITUS Professional - Patch cable - RJ-45 (M) to RJ-45 (M) - 3 m - SFTP, PiMF - CAT 6 - booted, halogen-free, snagless - green, RAL 6016 | DK-1644-030/G

Product Features

· 2x RJ45 (8P8C) connectors
· Boots with kink protection, strain relief and latch protection
· Length marking on boot
· Conductor: Copper (Cu)

Special Fetures

· With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
· Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)
· Conductor: Copper (Cu)
· PoE+ ready

Product Specification

Network Cable Type	Patch cable - CAT 6
Technology	SFTP, PiMF
Wiring Scheme	T568B
Shielding Material	Foil with braid
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	27/7
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Plated Connector	Gold
Features	Booted, halogen-free, snagless, latching connectors, flame retardant, strain relief
Length	3 m
Colour	Green, RAL 6016
Connectivity
Connector	RJ-45 - male
Connector (Second End)	RJ-45 - male
Miscellaneous
Compliant Standards	IEC 60332-1, ISO/IEC 11801, EN 50288-5-1 - up to 250 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
