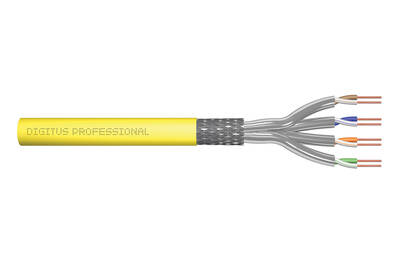

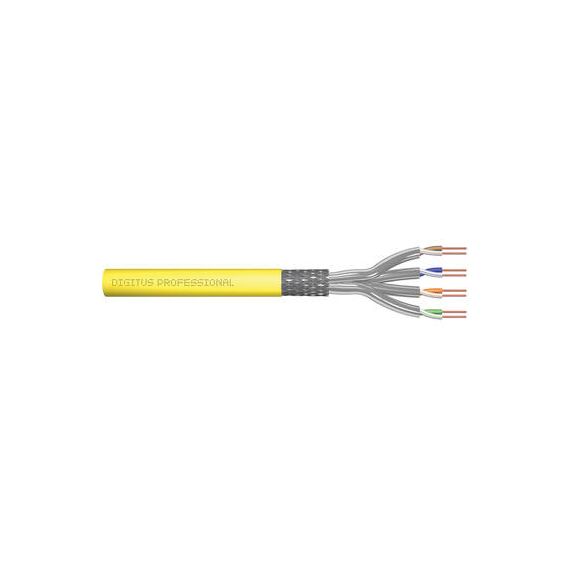

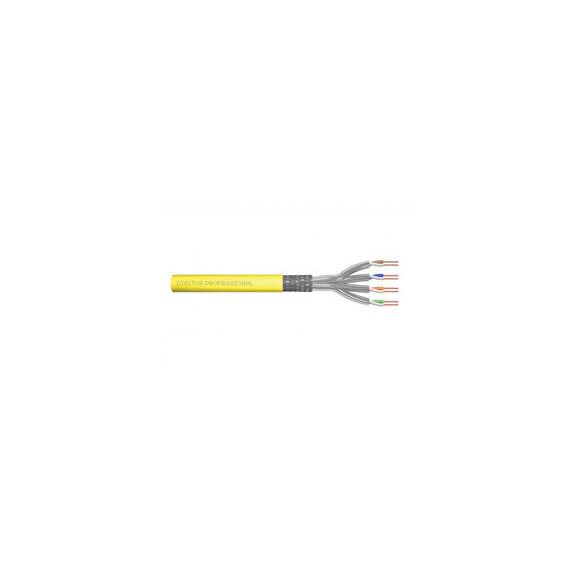

DIGITUS Professional Installation Cable - Bulk cable - 1000 m - SFTP - CAT 7a - halogen-free - yellow, RAL 1028 | DK-1744-A-VH-10-P

Product Features

· Physical properties
· Cable: Bare copper wire, AWG 22/1
· System/s of AVCP: AVCP 3
· Insulation: SFS-PE (foamed polyethylene sheath)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Shielding of the individual pairs: Aluminum-covered polyester film, 100% coverage
· Overall shielding: Copper mesh
· Outer sheath: Dca to CCA complies with EN 50575
· Outer sheath thickness (nominal): 0.60 mm (CCA)
· Outer sheath color: Sulfur yellow (RAL 1028)
· Mechanical properties
· Cable grip: 150 N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Transport and storage temperature range: -20 °C to +75 °C
· Operating temperature range: -20 °C to +60 °C
· Installation temperature range: 0 °C to +50 °C
· External diameter simplex (nominal): 8.0 mm (CCA)
· Weight (kg/km): 68.0 kg (CCA)
· Electrical properties
· Impedance: 100 ± 5 ohm @ 1-1000 MHz
· Capacity: 40 pF/m nominal @ 1 KHz
· Capacity unbalance (pair earth): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 Gohm x km min.
· DC resistance: 72 ohm/km max. (2% max. non-balanced resistance)
· Loop resistance: 147 ohm/km max. (2% max. non-balanced resistance)
· Operating voltage: 72 VDC max.
· Insertion loss: 80 dB
· Phase delay: 450 nS/100 m max.
· Signal delay: 10 nS/100 m max.
· Segregation classification: d in accordance with EN 50174-2
· NVP: 75%

Special Fetures

· 10 GBit Ethernet
· 1500 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· BauPVO category Cca-s1a d1 a1
· GHMT PVP certified

Product Specification

Network Cable Type	Bulk cable - CAT 7a
Technology	Shielded foiled twisted pair (SFTP)
Shielding Material	Aluminium foil with braid
Jacket Material	Low Smoke Zero Halogen (LSZH)/flame-retardant halogen-free PVC (FRNC)
American Wire Gauge (AWG)	22/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Features	Halogen-free, PoE ready
Length	1000 m
Weight	68 kg
Colour	Yellow, RAL 1028
Miscellaneous
Compliant Standards	ISO/IEC 11801, EN 50173, IEC 60332-3-24, EN 50288-9-1, EN 61034-2, EN 60754-1/2 - up to 1500 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
