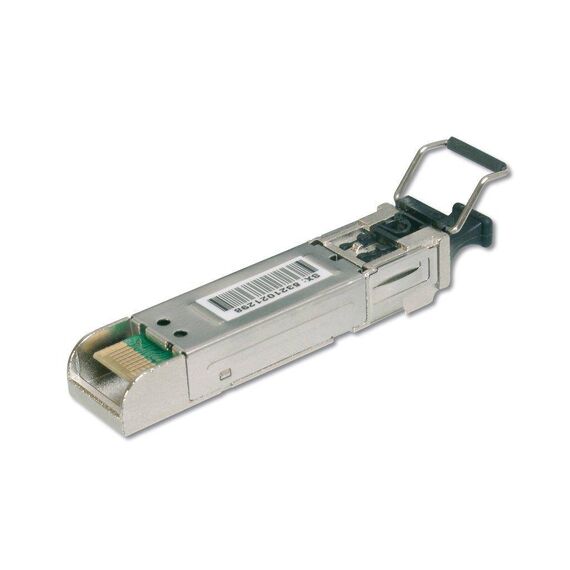

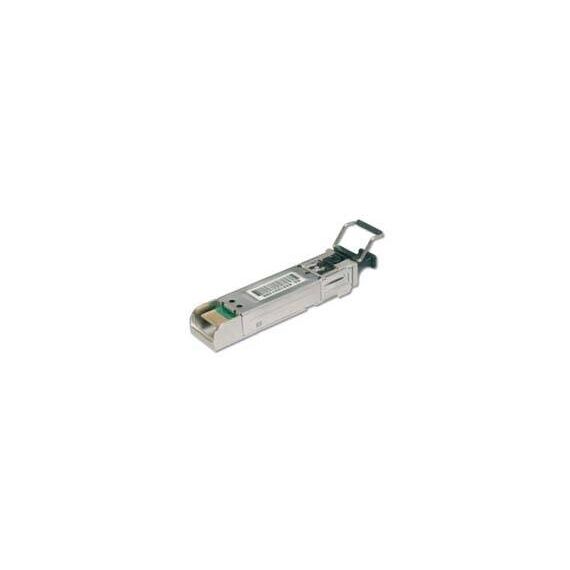

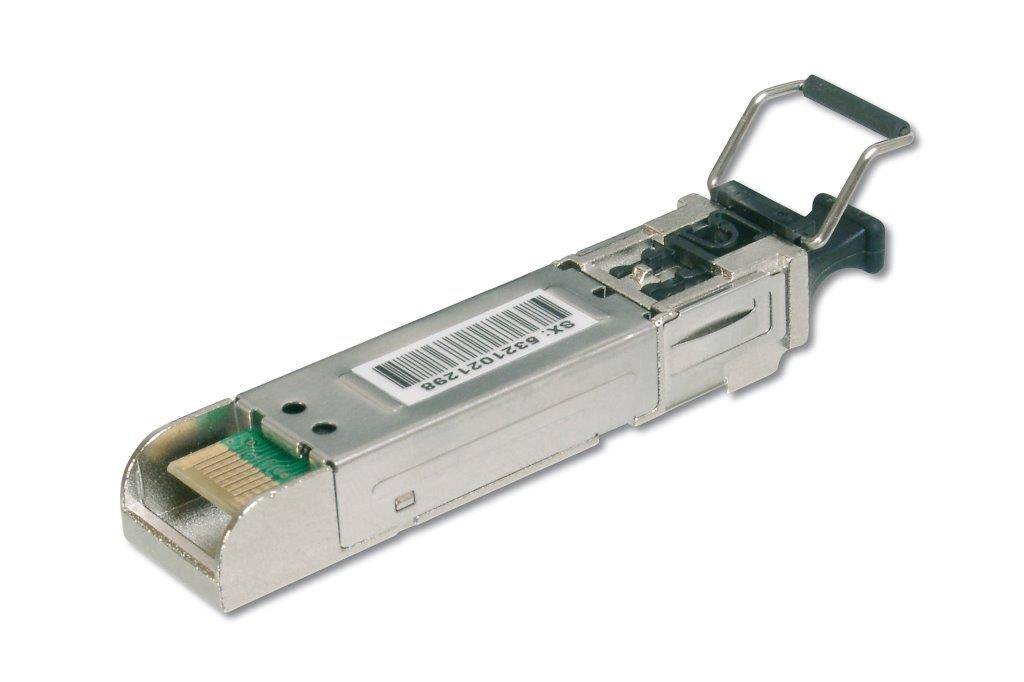

DIGITUS Professional DN-81000-02 / SFP (mini-GBIC) transceiver module / GigE / 1000Base-SX / LC multi-mode / up to 550 m / 850 nm | DN-81000-02

Product Features

· Cisco compatible
· Mini GBIC SFP (Small Form Factor Pluggable) module
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· Connector: 1x LC Duplex
· 1000Base-SX - For Short Haul
· Wavelength: 850nm
· Transmission power: minimum -8 dBm, maximum -3 dBm
· Sensitivity Receiving Power: Minimum -20 dBm
· For a Distance of up to 0.55km
· Suitable for 50/125µm and 62.5/125µm multimode fiber cables
· Safe fast-locking mechanism
· Operating temperature: 0 °C ~ 70 °C

Special Features

· The Plug & Play fiber optic link enables quick installation
· Sends data in high quality and additionally provides excellent reliability
· Distance up to 0,55km at a maximum data rate of 1.25Gbps
· Operating temperature: 0 °C ~ 70 °C

Product Specification

Device Type	SFP (mini-GBIC) transceiver module
Form Factor	Plug-in module
Networking	Networking
Connectivity Technology	Wired
Cabling Type	1000Base-SX
Data Link Protocol	GigE
Data Transfer Rate	1.25 Gbps
Optical Wave Length	850 nm
Max Transfer Distance	550 m
Features	Hot swap module replacement
Compliant Standards	IEEE 802.3z
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Ethernet 1000Base-SX - LC multi-mode x 2
Miscellaneous	Miscellaneous
Compliant Standards	Plug and Play, Laser Class 1, EN 60825-1, MSA
