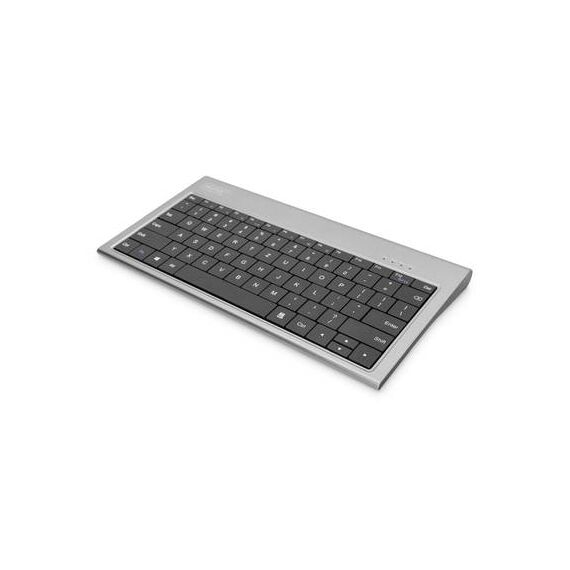

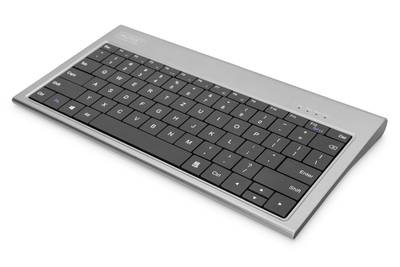

DIGITUS DA-70885 / Docking station / USB-C / VGA, HDMI / GigE | DA-70885

Product Features

· 1 x USB-C connection: USB 3.1 (Gen 2) 10 Gbps SuperSpeed+
· 1 x USB-C connection with Power Delivery 3.0 (charging adapter 100 W max.)
· 1 x HDMI® connection: UHD 4K / 30 Hz (1080p / 60Hz when used simultaneously with the VGA connection)
· 1 x VGA connection: Full HD 1080p / 60 Hz, 1080i, 720p
· 3 x USB 3.0: SuperSpeed 5 USB, downward compatible with USB 2.0
· 1 x Gigabit Ethernet connection: RJ45, 10/100/1000 Mbps
· 1 x SD- / MicroSD card reader: Supports cards up to 2 TB
· 1 x audio connection: 3.5 mm jack socket, stereo output and microphone input
· Keyboard layout: QWERTZ (compact, 78 keys)
· Supported operating systems: macOS 10.X or higher, Windows 10/8/7 (32 + 64Bit), iOS 3.0 or higher, Android 4.0 or higher
· Operating humidity: 10% - 90% RH (non-condensing)
· Operating temperature: 0°C ~ +45°C
· Feature displays: 4 x LED, white (lock, shift, scroll, power)
· Weight: 500 g
· Dimensions: L 28.7 x W 15 x H 1.9 cm
· Housing: Aluminum
· Manufacturers notice:
· SD and MicroSD card readers cannot be used simultaneously.
· Not all USB-C ports support all functions of the USB Type-C standard. Make sure that your notebooks USB-C port supports the DisplayPort Alternate Mode (DP Alt Mode) as well as USB Power Delivery (PD).
· The keyboard only works in conjunction with Windows and macOS

Special Features

· 10 additional interfaces for your notebook, MacBook or PC
· Supports resolutions up to UHD 4K / 30 Hz (HDMI®) or dual display with Full HD 1080p / 60 Hz (HDMI + VGA)
· Extended screen or duplicated screen display possible (extension / clone)
· Supports Power Delivery 3.0 (100 W max.) to quickly charge your notebook
· Plug and Play - no driver installation required
· Working with up to 3 monitors possible (incl. notebook display)
· Keyboard layout: QWERTZ (compact, 78 keys)
· High-quality aluminum housing

Product Specification

Product Type	Docking station
Width	28.7 cm
Depth	15 cm
Height	1.9 cm
Weight	500 g
Video	Video
Max Resolution Details	3840 x 2160 - 30 Hz (HDMI only) ¦ 1920 x 1080 - 60 Hz (VGA only) ¦ 1920 x 1080 - 60 Hz (HDMI and VGA simultaneously)
Networking	Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD
Interfaces	3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.1 Gen 2 - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm
Miscellaneous	Miscellaneous
Input Device	QWERTZ keyboard
Compliant Standards	Plug and Play
System Requirements	System Requirements
OS Required	Apple MacOS X 10.x or later, Microsoft Windows 7 / 8 / 10
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	32 cm
Shipping Depth	17 cm
Shipping Height	3.8 cm
Shipping Weight	550 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
