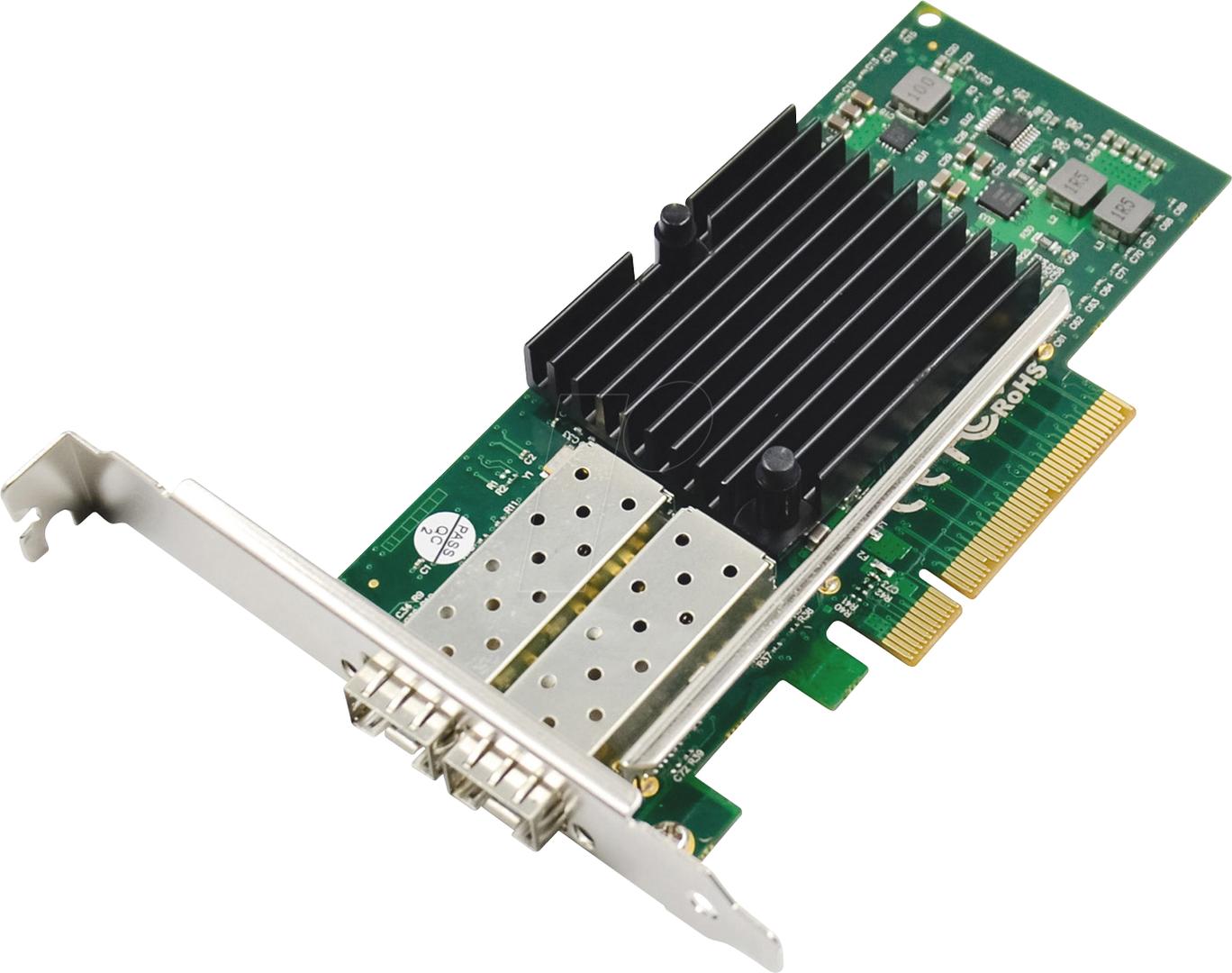

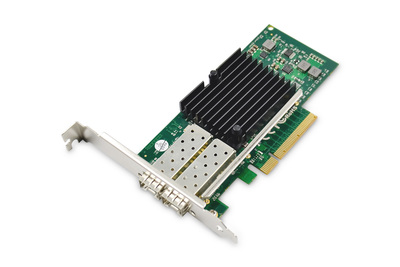

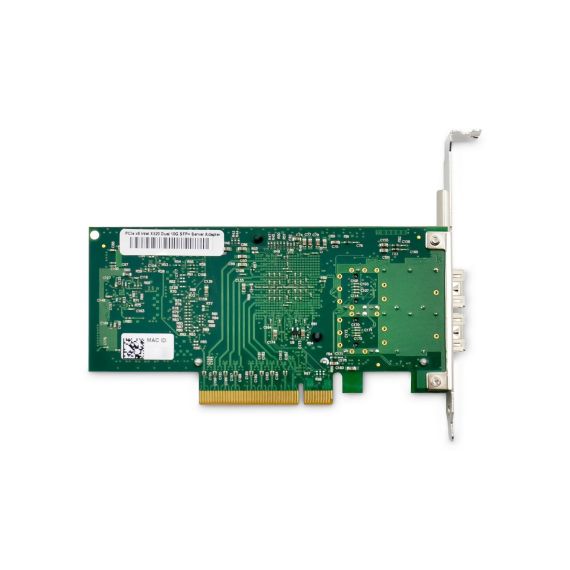

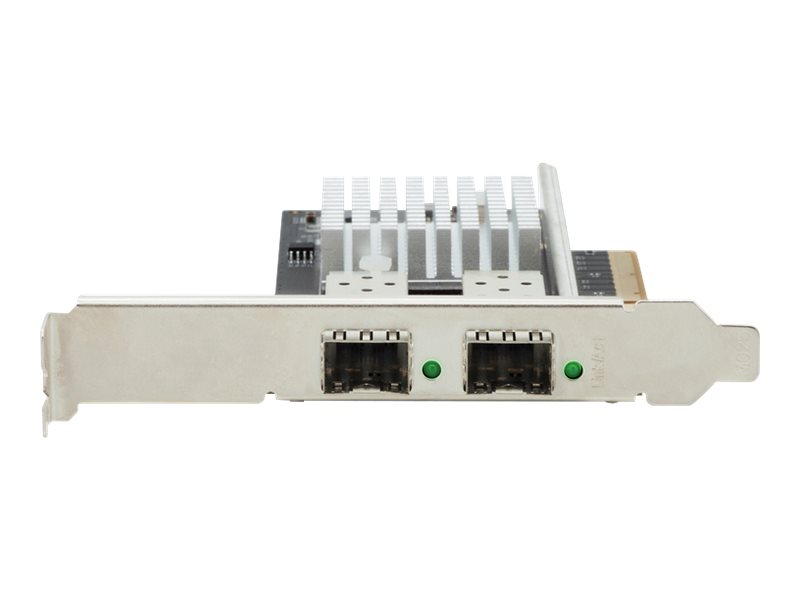

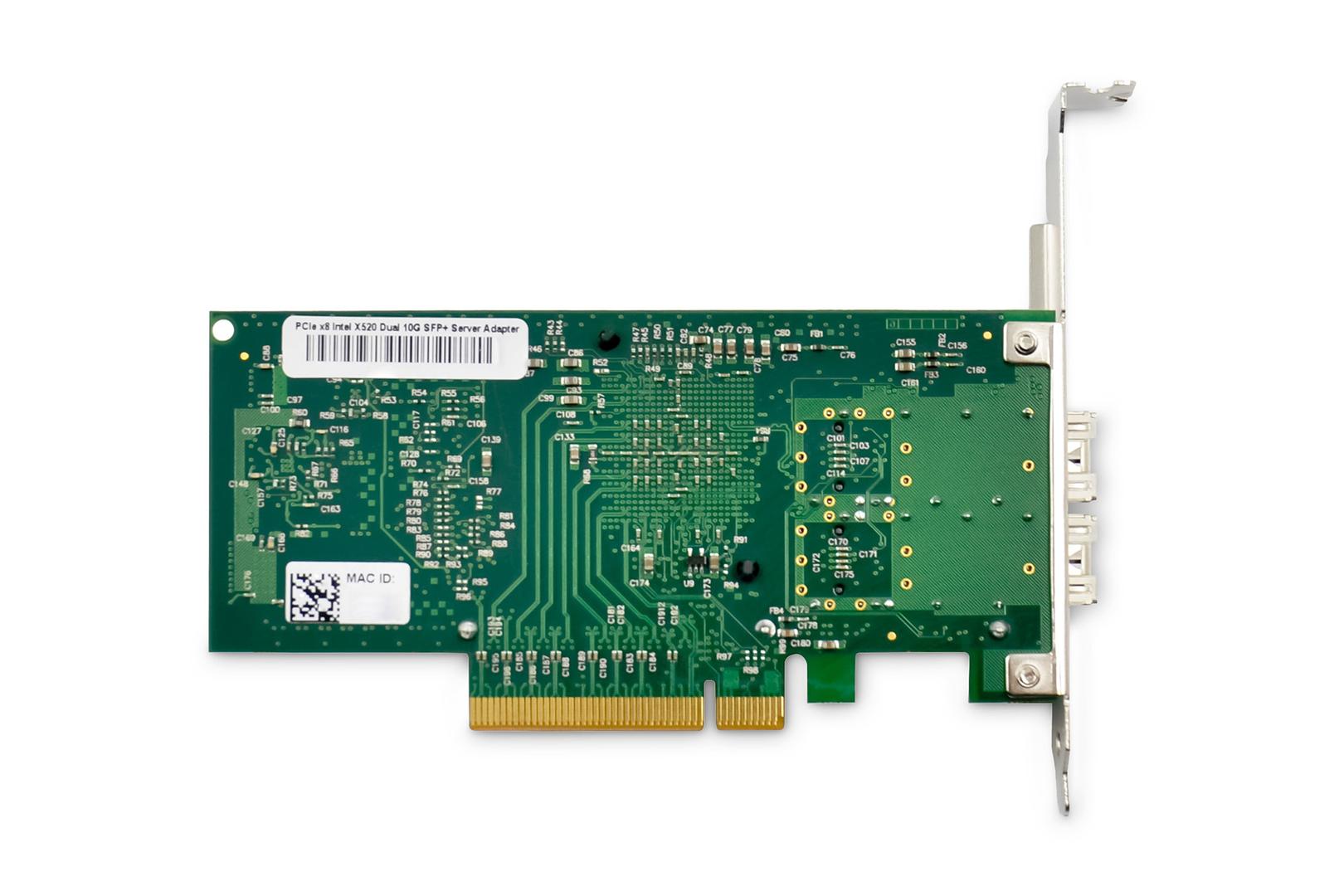

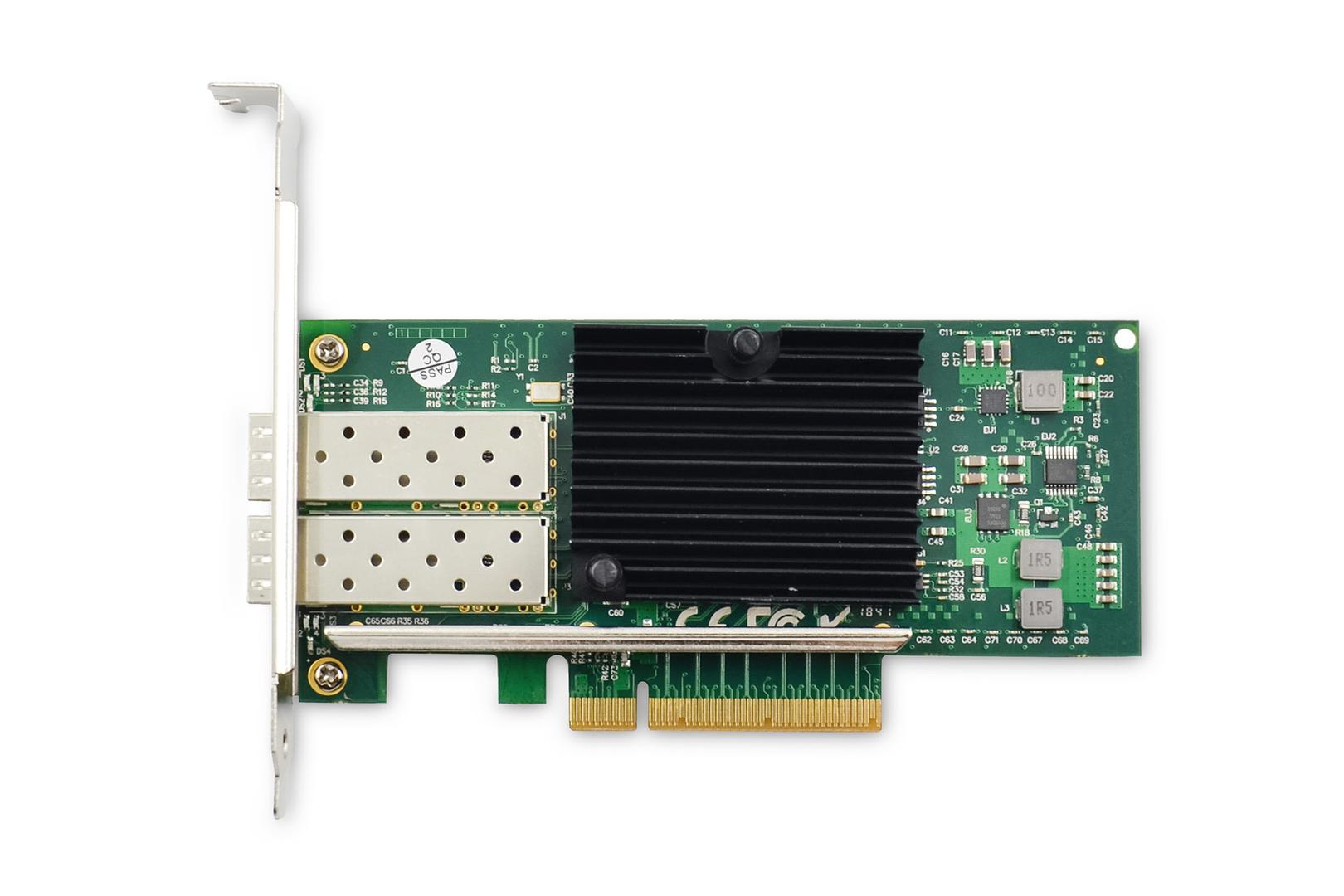

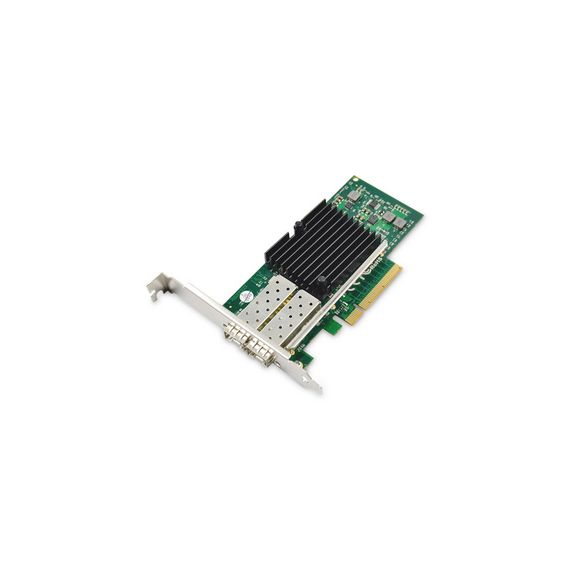

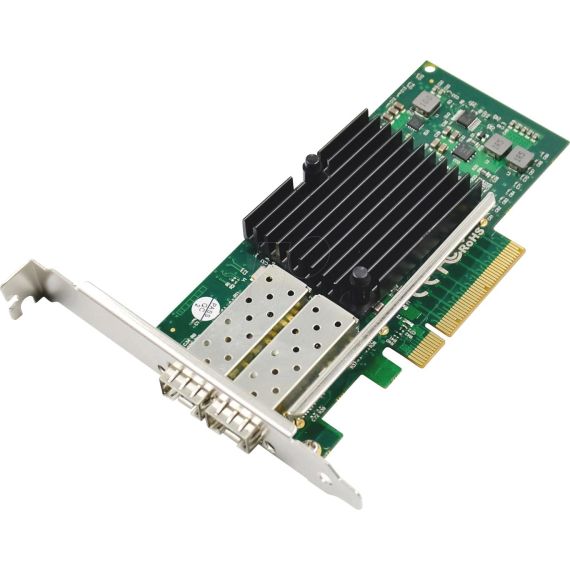

DIGITUS DN-10162 / Network adapter / PCIe 3.0 x8 low profile / 10 Gigabit SFP+ x 2 | DN-10162
DIGITUS DN-10162 / Network adapter / PCIe 3.0 x8 low profile / 10 Gigabit SFP+ x 2 | DN-10162
€326.21 inc. VAT
DN-10162
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Compatible with x8 and x16 PCIe slots· Supports 802.1Q VLAN tagging
· Supports 20G full duplex
· Up to 15K Jumbo Frames
· Supports 10G SFP+ optical and direct attached copper modules
· PCI Express specification revision 2.0
· IEEE 802.1Q Tagged VLAN
· Supports Win 7, 8.1, 10, Server 2008 R2, 2012, 2012 R2, Linux 2.6.x and later
· Chipset: Intel JL82599ES
Special Fetures
· Use the SFP+ tranceiver of your choice· Compatible with x8 and x16 PCIe slots
· Supports 802.1Q VLAN tagging
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |

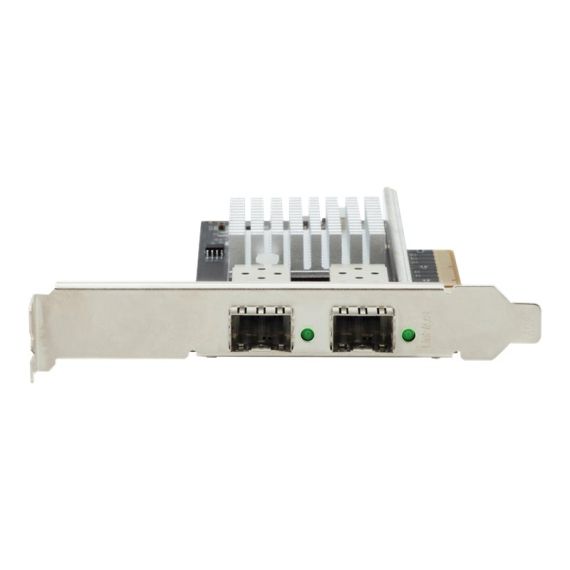

| Ports | 10 Gigabit SFP+ x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-X |
| Data Link Protocol | 10 Gigabit Ethernet |
| Features | IPv6 support, IPv4 support, tagged VLAN, 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.1Q |
| Processor / Memory | |
| Processor | Intel JL82599ES |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-X - SFP+ |
| Miscellaneous | |

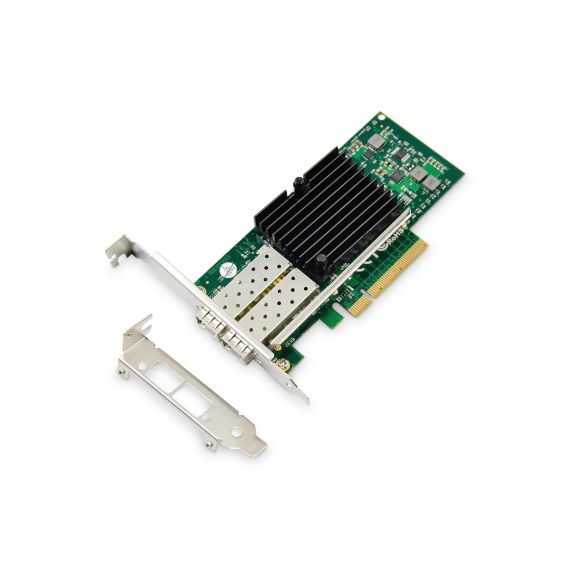

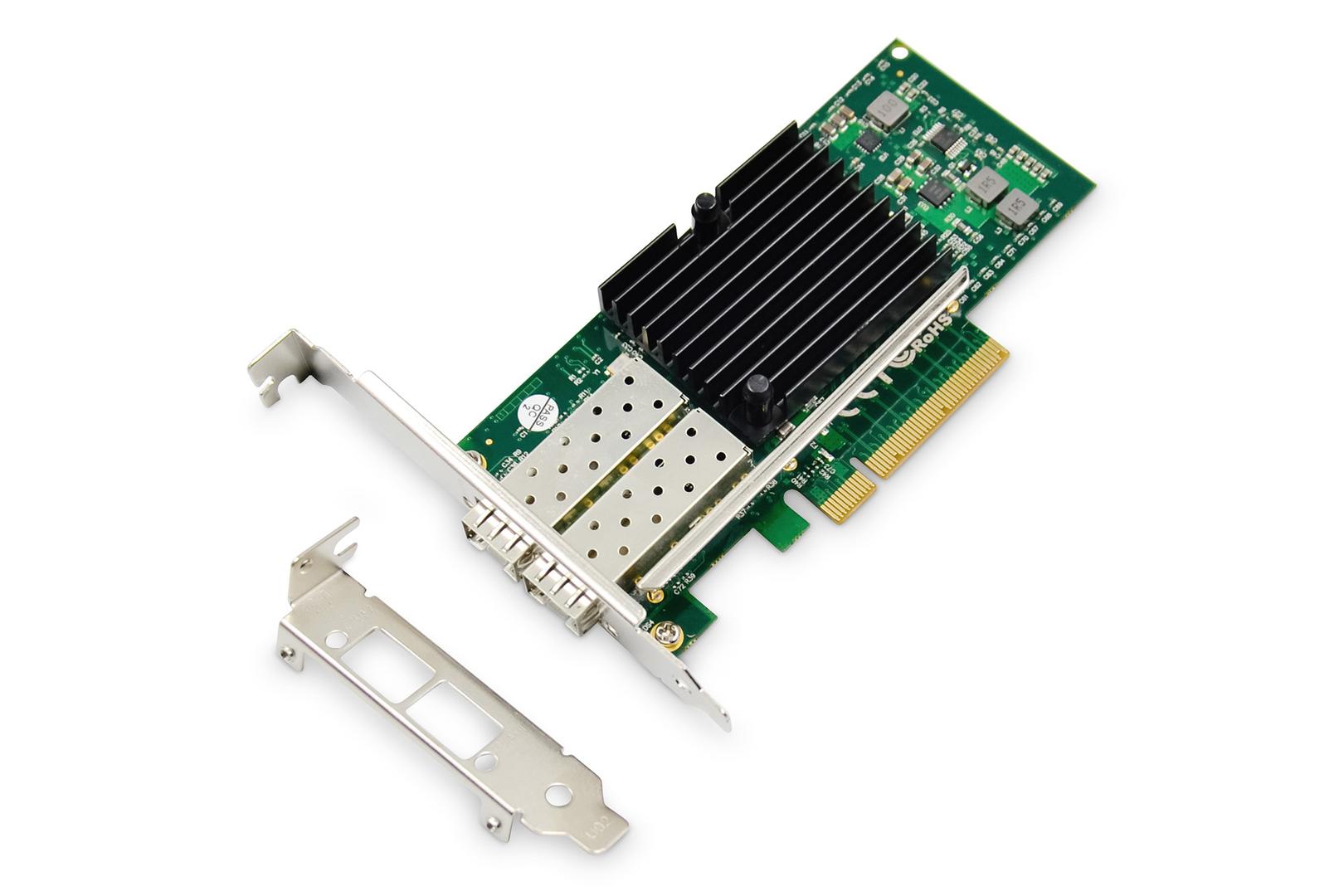

| Included Accessories | Low-profile bracket |
| Software / System Requirements | |
| Software Included | Driver |
| OS Required | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8.1 / 10 |
| Dimensions & Weight | |
| Width | 2.3 cm |
| Depth | 14.7 cm |
| Height | 12 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.5 cm |
| Shipping Depth | 21 cm |
| Shipping Height | 3.3 cm |
| Shipping Weight | 220 g |
Features - Digitus - DN-10162
More Details
Product Code
04:273020
EAN Code
4016032445197
Manufacturer
Digitus
