DIGITUS Professional DN-170074 - UPS - AC 230 V - 600 Watt - 1000 VA - 7 Ah - RS-232, USB - output connectors: 4 | DN-170074

Product Features

· Excellent micro process management guarantees a high reliability in case of electricity failure
· Auto restart while AC is recovering
· Cold start function

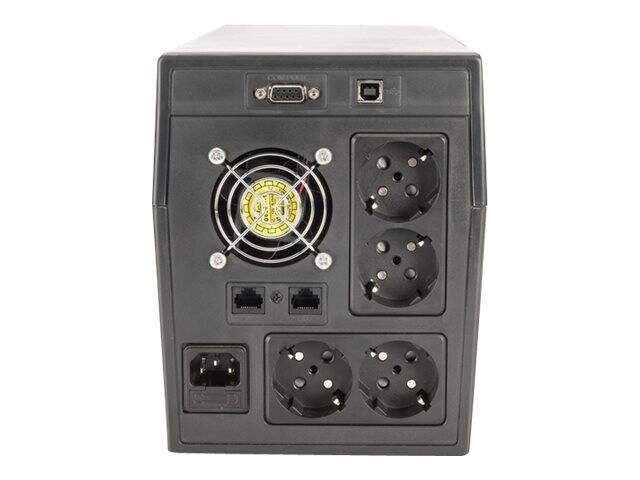

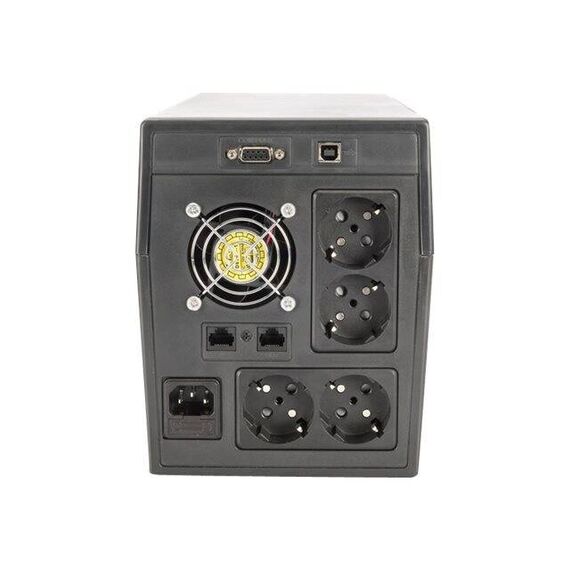

· Connection Type: 4x safety outlets, 2x RJ45, 1x RS232, 1x USB 2.0 type B
· Input voltage: 230 VAC
· Voltage range: 162-290 VAC
· Frequency range: 50 Hz (auto sensing)
· Output voltage: 230 VAC ± 10%
· AC voltage regulation (battery mode): 10%
· Capacity: 1000 VA/600 W
· Frequency range (battery mode): 50 Hz ± 1%
· Typical transfer time: 2-6 ms
· Waveform (battery mode): Simulated sine wave
· Battery: 12V/7Ah x 2
· Typical recharge time: 6-8 hours to recover 90% of capacity
· Alarm sounds: Battery mode (sounding every 10 sec.), low battery (sounding every second), overload (sounding every 0.5 seconds), fault (continously sounding)
· Humidity: 0-95% RH @ 0 °C to +40 °C (non condensing)
· Noise level: Less than 40 dB
· Boost and buck AVR for voltage stabilization
· LCD display
· With overload-, discharge-, and overcharge protection
· Dimensions (H x W x D): 162 x 150 x 338 mm
· Weight: 7.8 kg

Special Fetures

· Boost and buck AVR for voltage stabilization
· Fast bridging times in case of power blackout
· Compact enclosure for space saving installation in your IT infrastructure
· Quick charging time
· Produce a low noise level under 40 dB

Product Specification

Device Type	UPS - external
Power Device
UPS Technology	Line interactive
Input Voltage	AC 230 V
Input Voltage Range	AC 162 - 290 V
Frequency Provided	50 Hz ± 1%
Frequency Required	50 Hz
Power Output Connectors Details	4 x power CEE 7/7
Output Voltage	230 V ± 10% - 50 Hz
Power Capacity	600 Watt / 1000 VA
Dataline Surge Protection	Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Output Waveform	Sinewave
Surge Suppression	Yes
Battery
Quantity	2
Voltage Provided	12 V
Capacity	7 Ah
Recharge Time	6 hours
Transfer Time	2 ms
Networking
Remote Management Interface	RS-232, USB
Expansion / Connectivity
Interfaces	1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Features	Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, cooling fan, discharge protection, buck operation, auto restart
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 95% (non-condensing)
Sound Emission	40 dB
Dimensions & Weight
Width	15 cm
Depth	33.8 cm
Height	16.2 cm
Weight	7.8 kg
