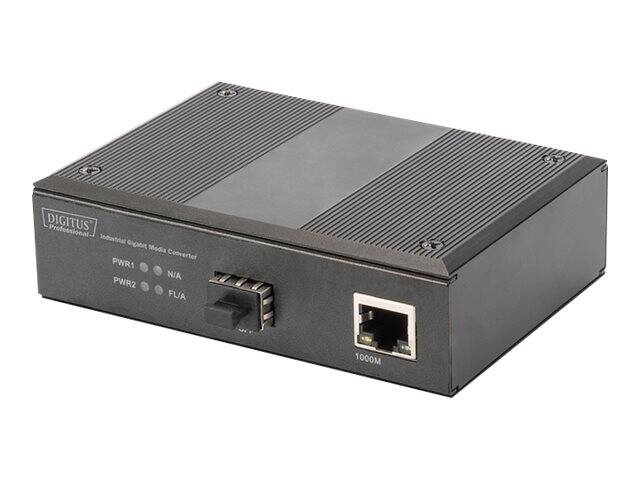

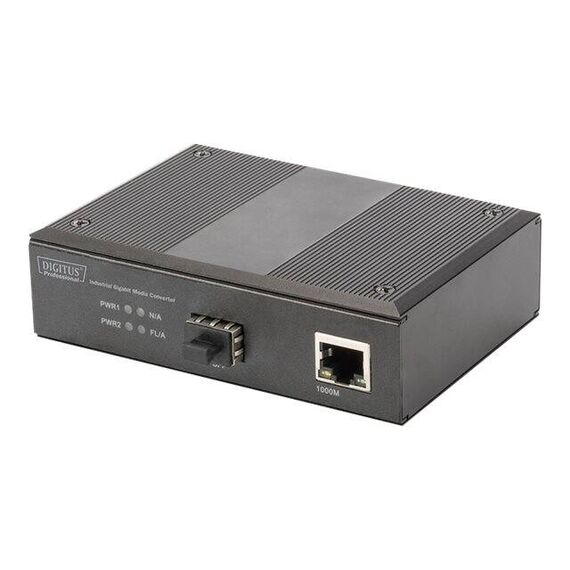

DIGITUS Professional DN-652103 - Fibre media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC) - up to 80 km | DN-652103-1
Please sign in so that we can notify you about a reply
Special Fetures
- Converts wire-based network signals into fiber optic signals
- High quality and high reliability
- 10/100/1000Base-TX to 1000Base-X
- Automatic cable detection - Auto MDI / MDI-X function
- Diagnostic LEDs for status and activity monitoring
- Compact, robust metal housing
- Excellent short circuit protection
- Lightning and overvoltage protection
- Removable terminal connection
- Protection class IP40
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 80 km |
| Features | Auto-uplink (auto MDI/MDI-X), wall mountable, DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 female - 30 W ¦ 1 x Ethernet 1000Base-X - SFP |
| Miscellaneous | |
| Compliant Standards | IP40 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 - 56 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
Features - Digitus - DN-652103-1
More Details
Product Code
03:220092
EAN Code
4016032488200
Manufacturer
Digitus
