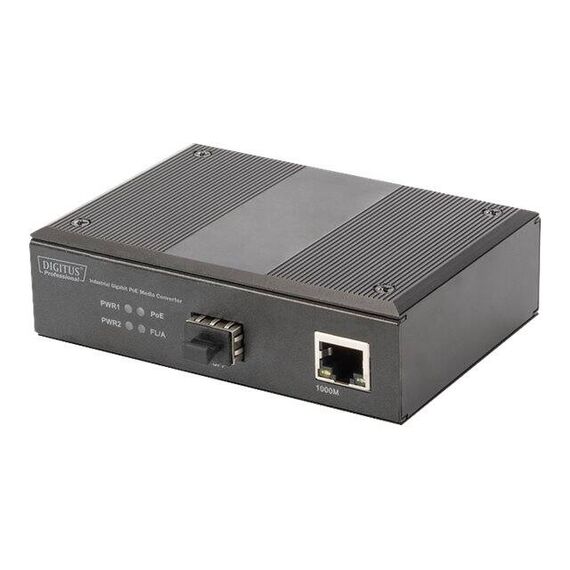

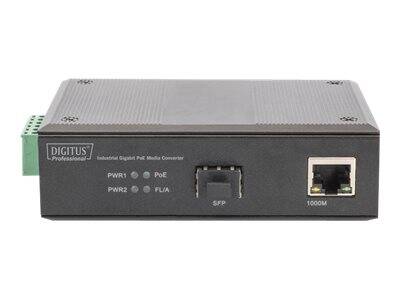

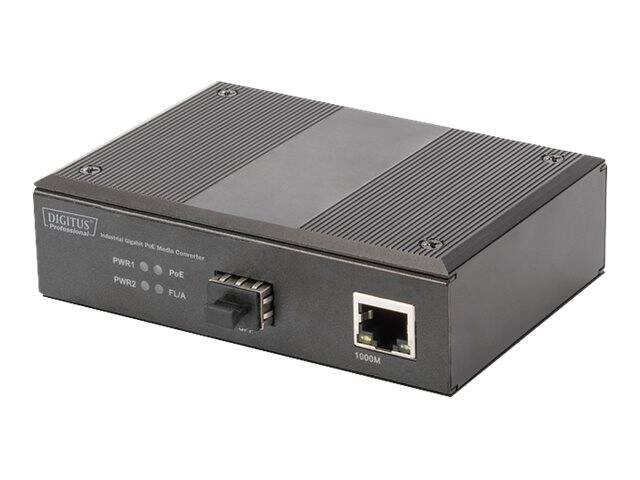

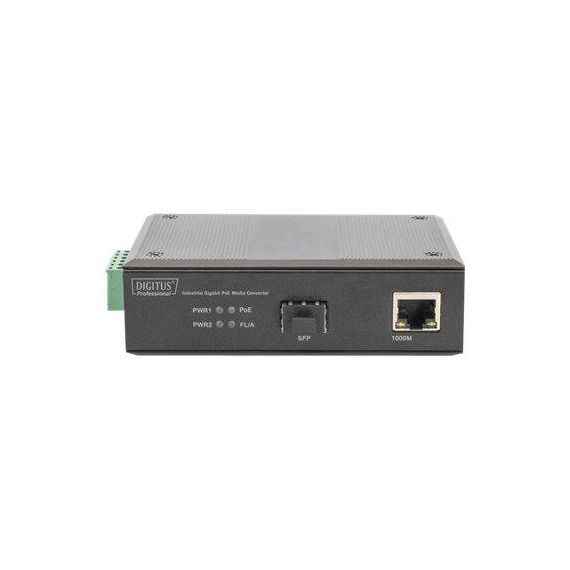

DIGITUS Professional DN-652104 - Fibre media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC) - up to 80 km | DN-652104-1
Please sign in so that we can notify you about a reply
Special Fetures
- Transforms wire based network media to fiber optic
- High quality and excellent reliability
- 30W PoE support
Product Specification
| Device Type | Fibre media converter |
| Form Factor | Wall / DIN rail mountable |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 80 km |
| Status Indicators | Power, PoE, link/activity |
| Features | Auto-negotiation, surge protection, wall mountable, short circuit protection, DIN rail mountable, lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 female - 30 W ¦ 1 x Ethernet 1000Base-X - SFP |
| Miscellaneous | |
| Compliant Standards | IP40 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Redundancy | Yes |
| Voltage Required | DC 12 - 56 V |
| Dimensions & Weight | |
| Width | 8 cm |
| Depth | 4 cm |
| Height | 12 cm |
| Weight | 300 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18 cm |
| Shipping Depth | 7 cm |
| Shipping Height | 22 cm |
| Shipping Weight | 400 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
Features - Digitus - DN-652104-1
More Details
Product Code
03:220093
EAN Code
4016032488217
Manufacturer
Digitus
