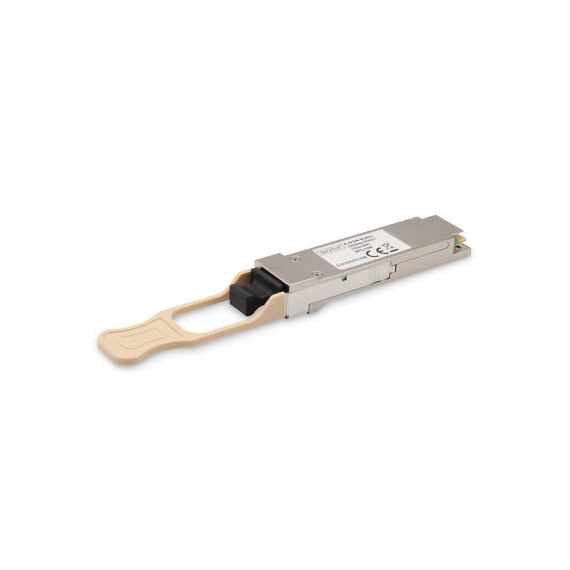

DIGITUS DN-81631 - QSFP28 transceiver module - 100 Gigabit Ethernet - 100GBase-SR4 - MTP/MPO multi-mode - up to 100 m - 850 nm | DN-81631

Product Features

· Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
· Low power consumption <3.5W
· Operating case temperature 0°C to +70°C
· 3.3V power supply voltage
· RoHS 6 compliant
· Hot Pluggable QSFP form factor
· MPO connector receptacle
· Built-in digital diagnostic function
· Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet,  Mikrotik , ENTERASYS, RIVERSTONE ,  Unifi, Ubiquiti, ZyXEL, ZTE

Special Fetures

· Four-channel full-duplex transceiver modules
· Transmission data rate up to 26Gbit/s per channel
· Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
· Low power consumption <3.5W
· Operating case temperature 0°C to +70°C
· 3.3V power supply voltage
· RoHS 6 compliant
· Hot Pluggable QSFP form factor
· MPO connector receptacle
· Built-in digital diagnostic function

Product Specification

Device Type	QSFP28 transceiver module
Form Factor	Plug-in module
Networking
Connectivity Technology	Wired
Cabling Type	100GBase-SR4
Data Link Protocol	100 Gigabit Ethernet
Data Transfer Rate	100 Gbps
Optical Wave Length	850 nm
Max Transfer Distance	100 m
Features	Digital Diagnostics
Compliant Standards	IEEE 802.3bm
Expansion / Connectivity
Interfaces	1 x Ethernet 100GBase-SR4 - MTP/MPO multi-mode female
Miscellaneous
Compliant Standards	RoHS, OM4, OM3
Power
Power Consumption Operational	3.5 Watt
Dimensions & Weight
Width	9 cm
Depth	1 cm
Height	2.9 cm
Weight	50 g
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
