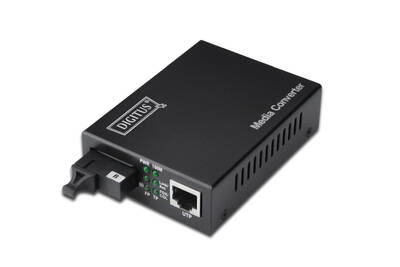

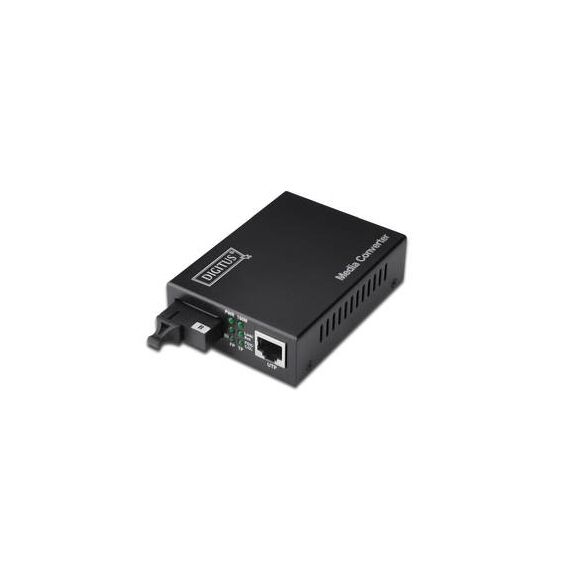

DIGITUS DN-82023 - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-TX - RJ-45 / SC single-mode - up to 20 km - 1550 (TX) / 1310 (RX) nm | DN-82023

Product Features

· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· 10/100Base-T and IEEE 802.3u compatible
· Connectors: 1x RJ45, 1x SC Simplex
· Distance up to 20km
· Wavelength: Tx 1550nm / Rx 1310nm
· Singlemode Single Fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex
· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 9/125µm Fiber Cables
· Transmission power: minimum -8 dBm, maximum -3 dBm
· Sensitivity Receiving Power: Minimum -36 dBm
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
· 128kB data buffer
· Operating temperature: 0 to 55°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply
· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
· Suitable Converter for Opposite Side: DN-82022

Special Fetures

· Distance up to 20km
· Sends data in high quality and additionally provides excellent reliability
· Wavelength: Tx 1550nm / Rx 1310nm

Product Specification

Device Type	Fibre media converter
Form Factor	External
Networking
Connectivity Technology	Wired
Cabling Type	10Base-T, 100Base-TX
Data Link Protocol	10Mb LAN, 100Mb LAN
Data Transfer Rate	100 Mbps
Optical Wave Length	1550 (TX) / 1310 (RX) nm
Max Transfer Distance	20 km
Status Indicators	Power, link/activity
Features	Auto-negotiation, auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP)
Compliant Standards	IEEE 802.3, IEEE 802.3u
Expansion / Connectivity
Interfaces	1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x network - SC single-mode female
Miscellaneous
Compliant Standards	FCC Part 15
Power
Power Device	External power adapter
Power Consumption Operational	2.5 Watt
Dimensions & Weight
Width	9.5 cm
Depth	7 cm
Height	2.6 cm
Weight	200 g
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	55 °C
