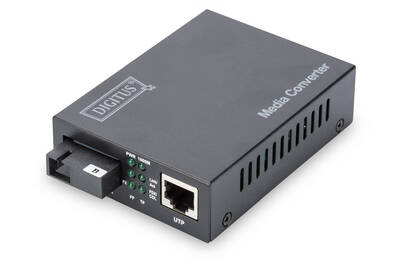

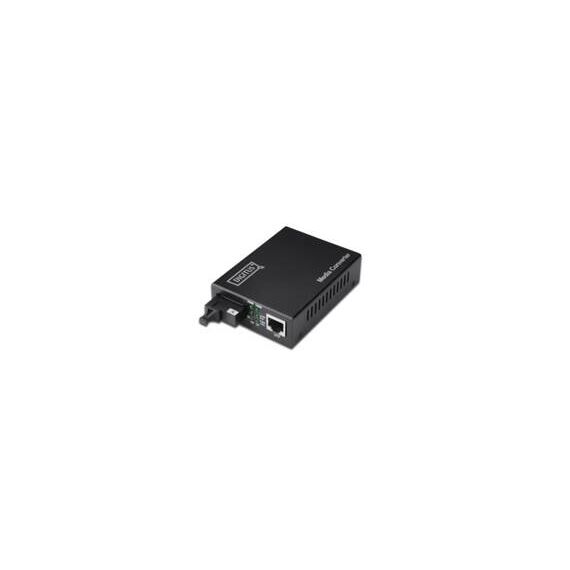

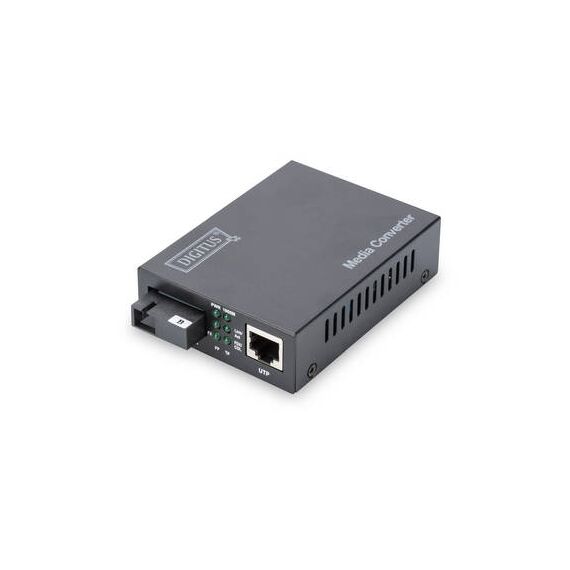

DIGITUS Professional DN-82123 - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 20 km - 1310 (TX) / 1550 (RX) nm | DN-82123

DN-82123
77.03
(91.67 inc. VAT)
Availability: 3 item(s)
Standard DeliveryStandard delivery within 3 to 8 business days.
Find similar
Delivery
Payment options
Product Code03:166695 EAN Code4016032307976 ManufacturerDigitus

Product Features

· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· 10/100/1000Base-TX to 1000Base-LX
· Connectors: 1x RJ45, 1x SC Simplex
· Distance up to 20km
· Wavelength: Tx 1550nm / Rx 1310nm
· Singlemode Single Fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex
· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 9/125µm Fiber Cables
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
· 2MB Data Buffer
· Operating Temperature: 0 to 60°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply
· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
· Suitable Converter for Opposite Side: DN-82122

Special Fetures

· Distance up to 20km
· Sends data in high quality and additionally provides excellent reliability
· A quick delivery is guaranteed in the gigabit range

Product Specification

Device TypeFibre media converter
Form FactorExternal
Networking
Connectivity TechnologyWired
Cabling Type10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T
Data Link Protocol10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate1 Gbps
Optical Wave Length1310 (TX) / 1550 (RX) nm
Max Transfer Distance20 km
Status IndicatorsPower, link/activity
FeaturesFlow control, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z
Expansion / Connectivity
Interfaces1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female
Power
Power DeviceExternal power adapter
Power Consumption Operational2.5 Watt
Dimensions & Weight
Width7 cm
Depth9.5 cm
Height2.6 cm
Weight200 g
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature60 °C

Features - Digitus - DN-82123

More Details
Product Code
03:166695
EAN Code
4016032307976
Manufacturer
Digitus
