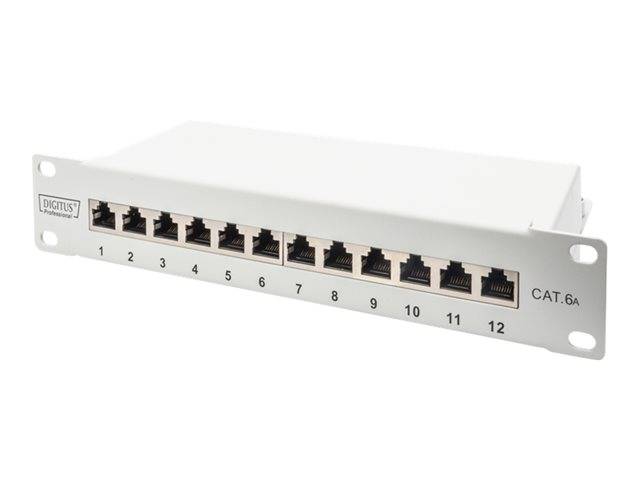

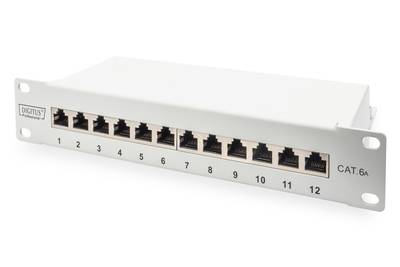

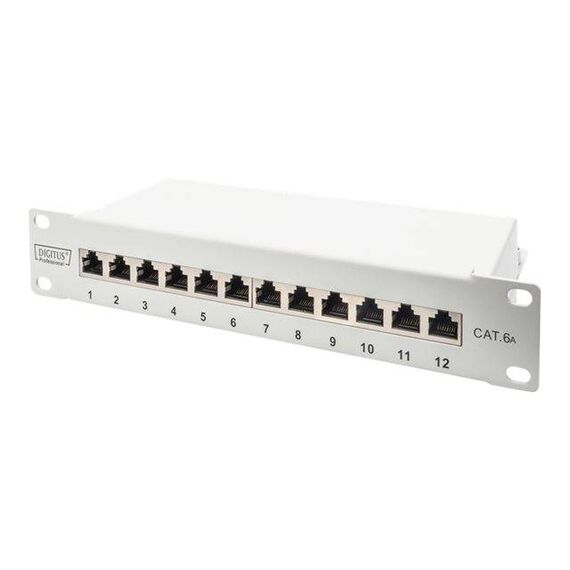

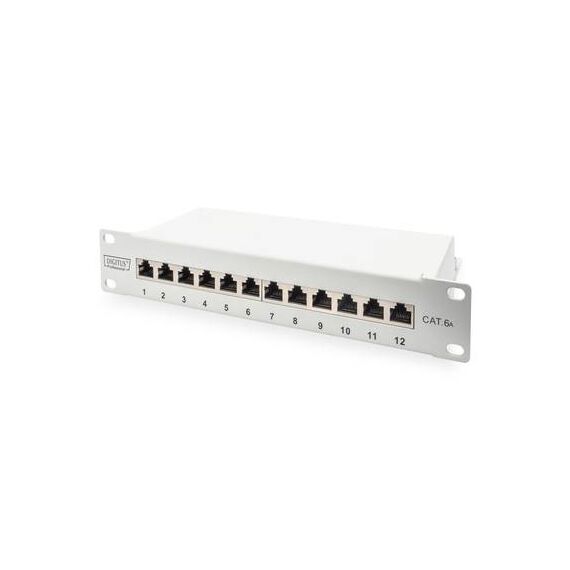

DIGITUS DN-91612S-EA-G / Patch panel / rack mountable / RJ-45 X 12 / grey, RAL 7035 / 1U / 10" | DN-91612S-EA-G
Please sign in so that we can notify you about a reply
DIGITUS DN-91612S-EA-G / Patch panel / rack mountable / RJ-45 X 12 / grey, RAL 7035 / 1U / 10" | DN-91612S-EA-G
Description
The CAT 6A patch panel offers sturdy design by its 1.5mm galvanic cold rolled steel. Perfect for 10" cabinet mounting. The fully shielded RJ45 sockets provide an optimal stability for your cables with great performances. The patch panel applies to 802.3at/af PoE standard. It is shielded electromagnetically and offers lost and interruption free forwarding of your data in your network. The 360 degree shielding at the contact points makes sure every single point of consolidation is shielded perfectly.
DIGITUS DN-91612S-EA-G / Patch panel | DN-91612S-EA-G
Special Features
- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact
- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500VDC
Product Specification
| Product Type | Patch panel - CAT 6a |
| Placing / Mounting | Rack mountable |
| Product Material | Cold-rolled steel |
| Height (Rack Units) | 1U |
| Width | 25.5 cm |
| Depth | 11 cm |
| Height | 4.4 cm |
| Enclosure Colour | Grey, RAL 7035 |
| Port Qty | 12 ports |
| Termination Type | IDC |
| Technology | Shielded twisted pair (STP) |
| Features | Gold-plated connectors, PoE+ support |
| Compliant Standards | IEEE 802.3af/IEEE 802.3at |
| Rack Size | 10" |
| Shipping Width | 26 cm |
| Shipping Depth | 12 cm |
| Shipping Height | 6 cm |
| Shipping Weight | 890 g |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
Features - Digitus - DN-91612S-EA-G
More Details
Product Code
03:165942
EAN Code
4016032454878
Manufacturer
Digitus
