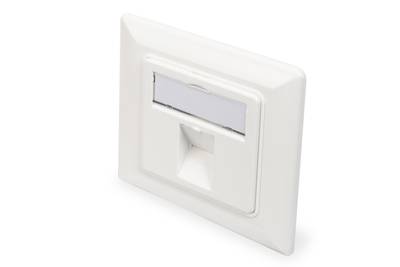

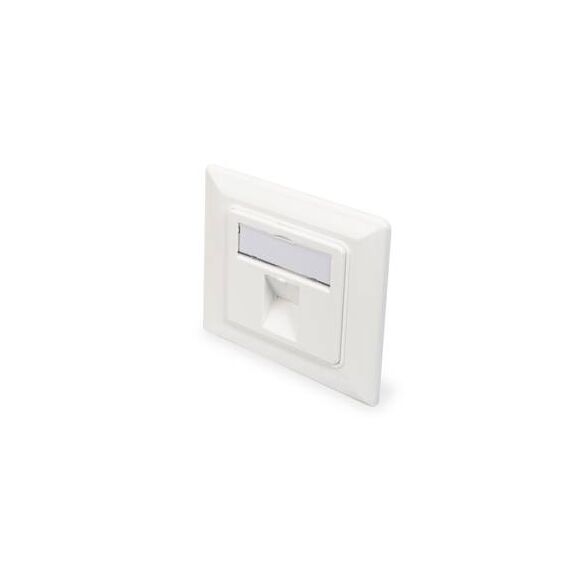

DIGITUS DN-93811 / Mounting plate / white, RAL 9010 / 1 port | DN-93811

Product Features

· Layout keystone entry: 45° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Central ground connection
· Integrated dust cover
· Plastic label field
· Design compatible with spacer ring to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Colour: White RAL9003

Special Features

• For connection of keystone jacks
• Connection way of the module is 45° vertical
• Shining structured surface parts
• Full shielded metal housing, usable as central grounding position

Product Specification

Product Type	Mounting plate
Width	8 cm
Height	8 cm
Enclosure Colour	White, RAL 9010
Cabling & Wiring	Cabling & Wiring
Port Qty	1 port
Miscellaneous	Miscellaneous
Features	Dust-resistant
