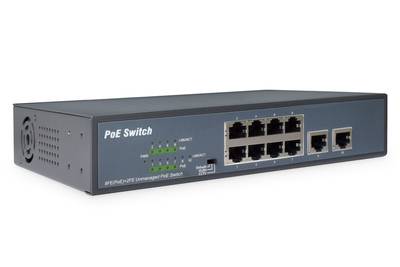

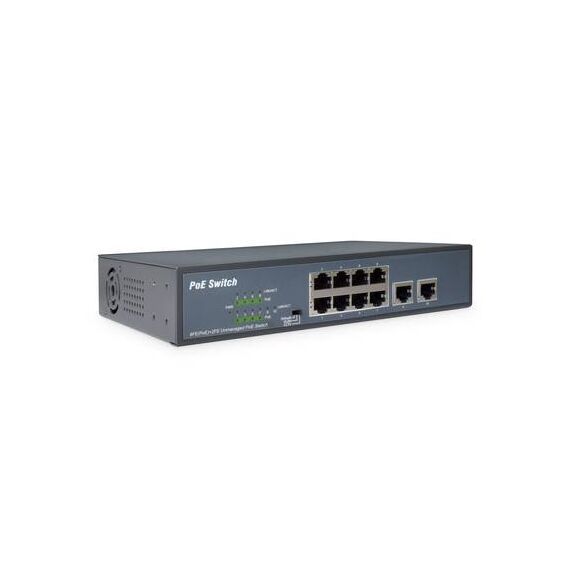

DIGITUS DN-95323-1 / Switch / unmanaged / 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) / desktop / PoE+ (120 W) | DN-95323-1
DIGITUS DN-95323-1 / Switch / unmanaged / 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) / desktop / PoE+ (120 W) | DN-95323-1
€108.92 inc. VAT
DN-95323-1
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
DIGITUS DN-95323-1 / Switch / unmanaged / 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) / desktop / PoE+ (120 W) | DN-95323-1
Description
Network switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks.
DIGITUS DN-95323-1 / Switch | DN-95323-1
Special Features
- 8-port 10/100Base-TX with PoE support
- 2-port Fast Ethernet uplink
- Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- With integrated DIP switch to enable VLAN or extensive mode
- Extensive mode for ranges up to 250 meters with a transmission rate of 10Mbps
- PoE current output 55 V DC, max. 30 W per port
- PoE power supply mode A, PIN 1/2(+), 3/6(-)
- Supports non-blocking, non-head-of-line forwarding
- Supports back pressure and bandwidth control in each port
- Store and forward technology for optimized data transfer
- Automatic speed and half/full duplex recognition/adjustment
- Auto MDI/MDI-X function
- Backplane with 2 Gbps
- Supports up to 8K MAC addresses
- Integrated power supply unit
- Maximum PoE power of 120 watts
- Maximum output line 125 watts
- Fanless design
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop 1U |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Backplane speed: 2 Gbps |
| MAC Address Table Size | 8K entries |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, bandwidth control, fanless, built-in DIP switch, Back Pressure Support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3q |
| Status Indicators | Power, PoE, link/activity |
| Interfaces | 8 x 100Base-TX RJ-45 PoE+ - 30 W ¦ 2 x 100Base-TX RJ-45 uplink |
| Power Device | Internal power supply |
| Width | 22 cm |
| Depth | 15 cm |
| Height | 4.4 cm |
| Weight | 120 g |
| Shipping Width | 31 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 8 cm |
| Shipping Weight | 180 g |
Features - Digitus - DN-95323-1
General
8-Port
More Details
Product Code
04:310146
EAN Code
4016032457862
Manufacturer
Digitus
