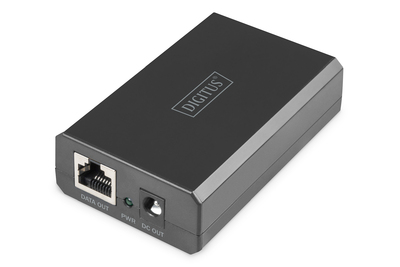

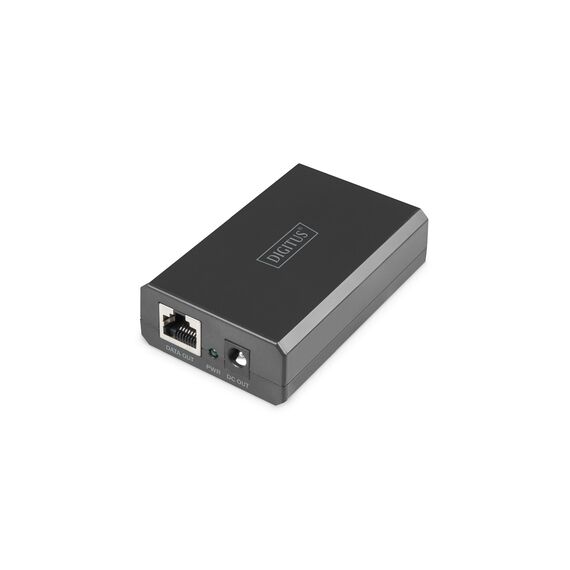

DIGITUS Gigabit Ethernet PoE splitter, 802.3bt, 51 W | DN-95211
Please sign in so that we can notify you about a reply
Product Features
· Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex· PoE standard: IEEE802.3at/bt

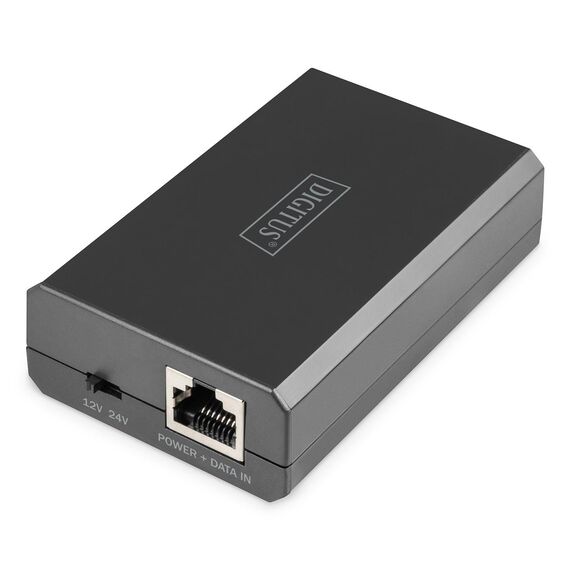

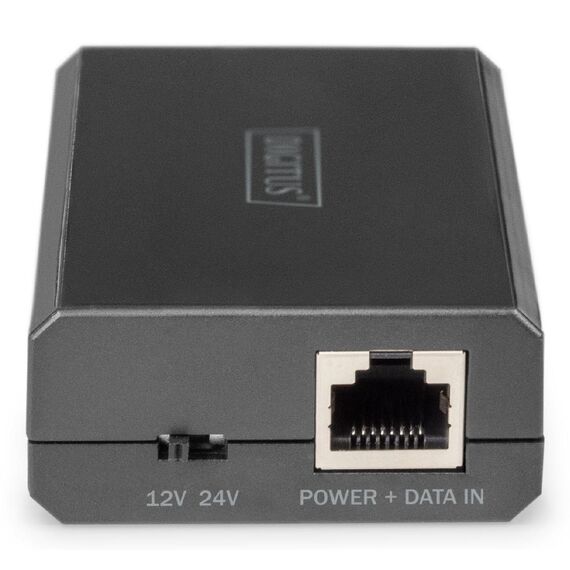

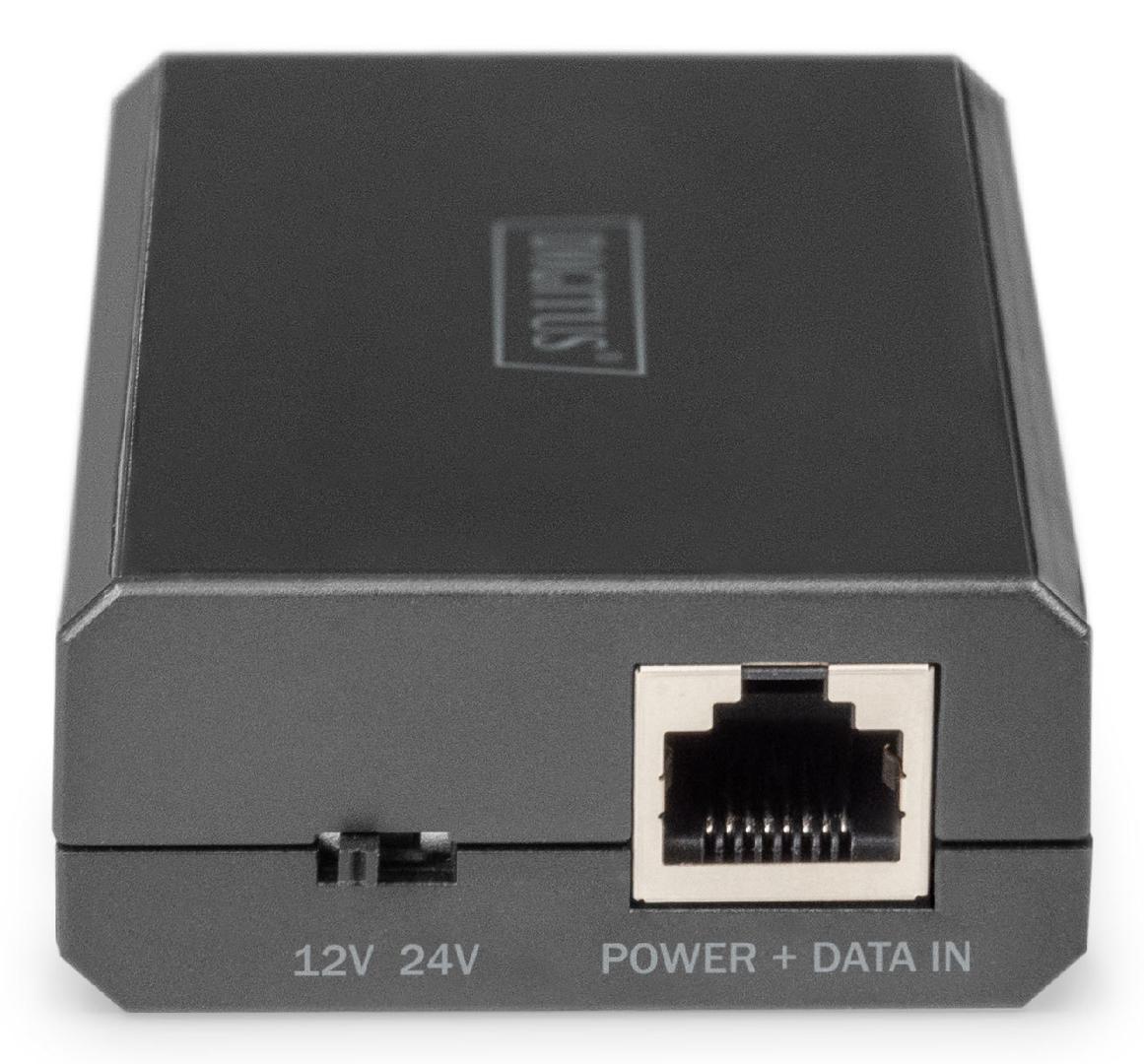

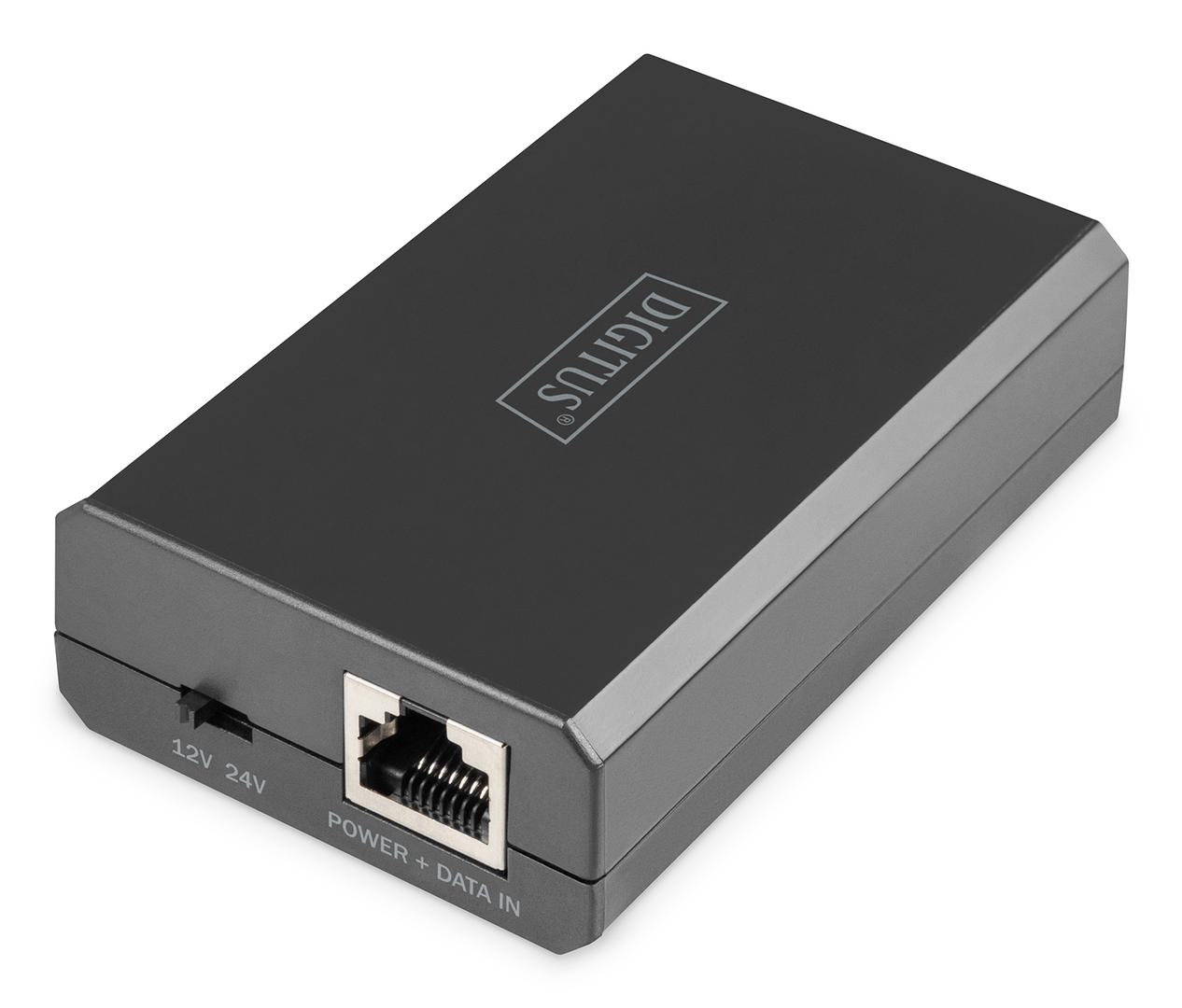

· Input: Power + data input (RJ45)

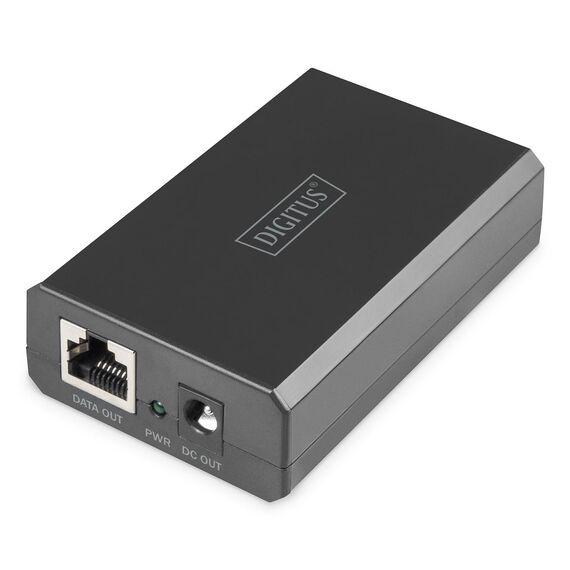

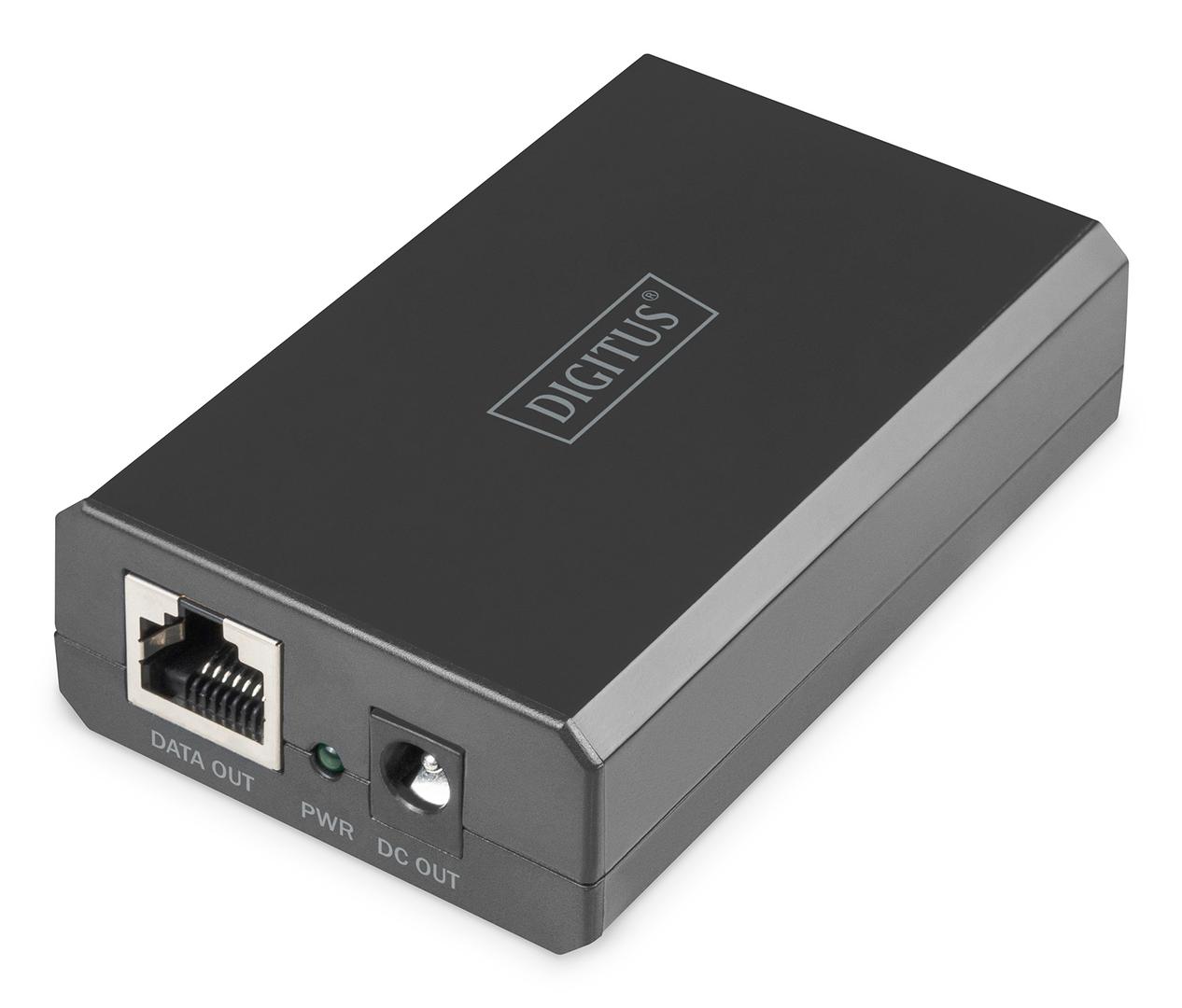

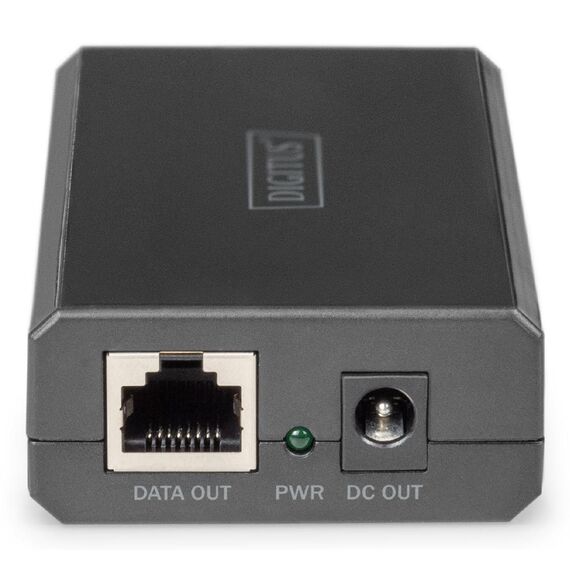

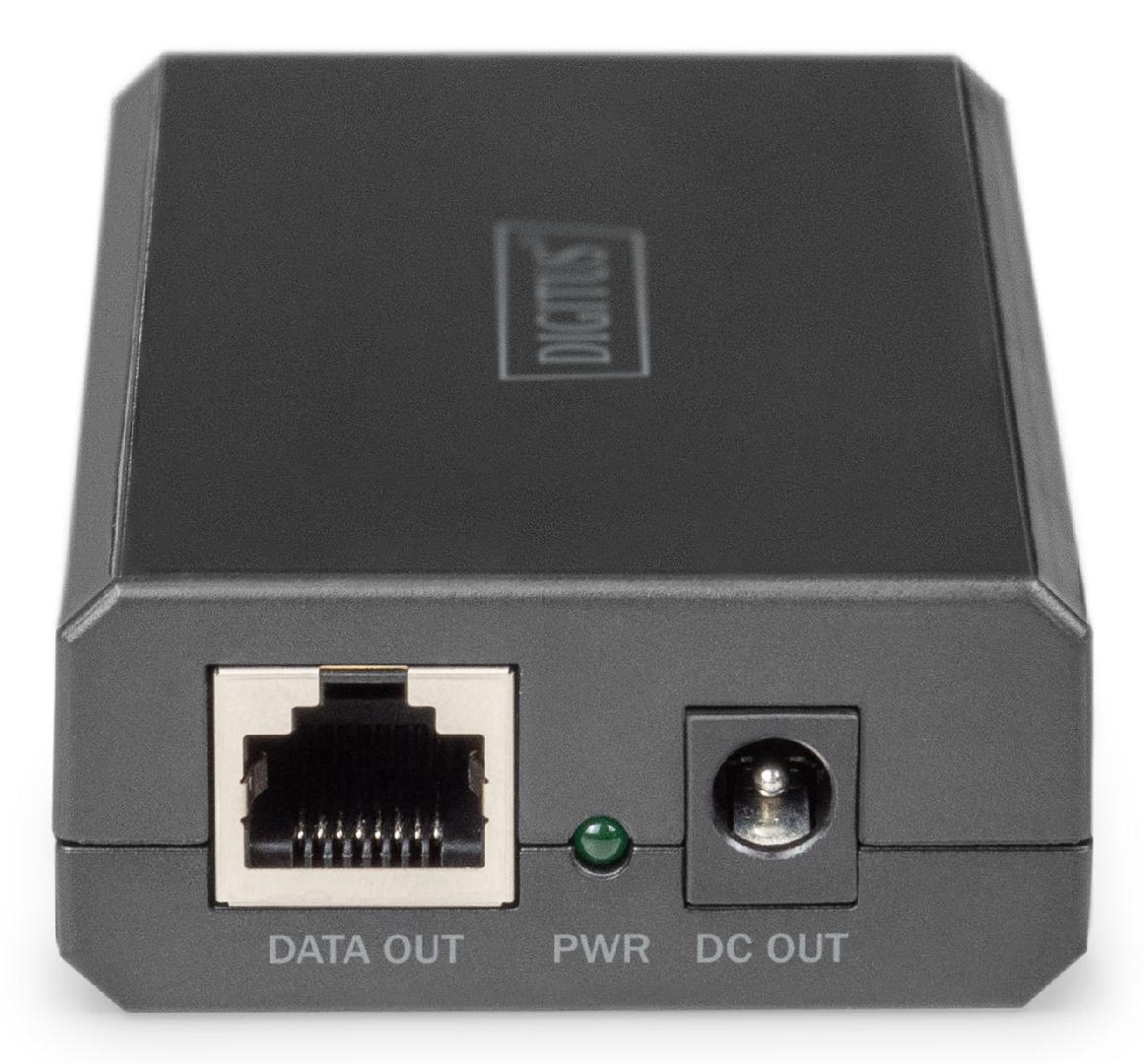

· Output: Data output (RJ45), DC output
· Plug-and-play installation - no configuration required
· Selectable output voltages: 12V/4.25A, 24V/2.125A
· Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable
· Status LED on the device (PoE ready/PoE in operation)
· Protection through insulation of the circuit
· Maximum output power up to 51W
· Supports a wide input voltage range from 36VDC to 57VDC
· Supports 5.5 mm and 3.5 mm DC connections
· Thermal shutdown
· Operating temperature: 0 to 40°C
· Dimensions (L x W x H): 80 x 55 x 23 mm
· Color: Black
· Weight: 80g
Special Fetures
· Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex· PoE standard: IEEE802.3at/bt
· Input: Power + data input (RJ45)
· Output: Data output (RJ45), DC output
· Plug-and-play installation - no configuration required
· Selectable output voltages: 12V/4.25A, 24V/2.125A,
· Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable
· Status LED on the device (PoE ready/PoE in operation)
· Protection through insulation of the circuit
· Maximum output power up to 51W
Product Specification
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3bt |
| Product colour | Black |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 51 W |
| Input voltage | 36 - 57 V |
| Width | 55 mm |
| Depth | 80 mm |
| Height | 23 mm |
| Package width | 105 mm |
| Package depth | 25 mm |
| Package height | 150 mm |
Features - Digitus - DN-95211
More Details
Product Code
04:488953
EAN Code
4016032495406
Manufacturer
Digitus
