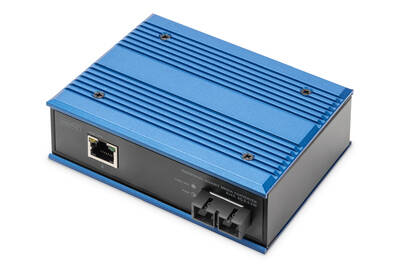

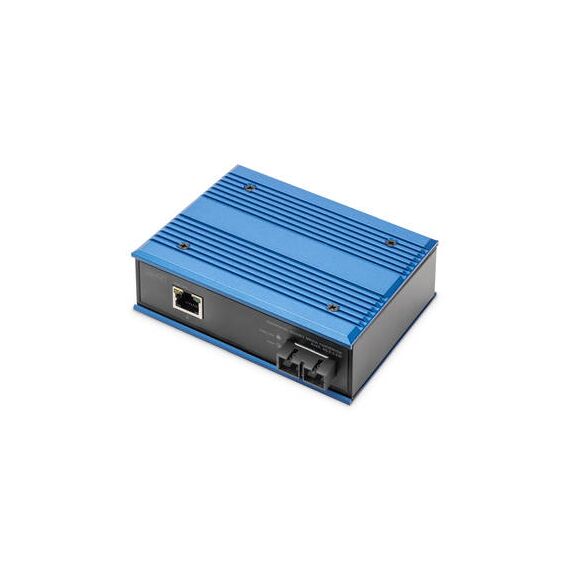

Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km / 1000 Mbit/s / 10Base-T / 1000Base-SX / SC / Wired / 500 m / 850 nm / Multi-mode / Activity / Black / Metal / 12 - 48 V / 3 W | DN-652101-1

Product Features

· Converts wire-based network signals into fiber optic signals
· High quality and the highest reliability
· 10/100/1000Base-TX to 1000Base-SX
· Ports: 1x RJ45, 1x SC duplex
· Range of up to 500 m
· Wavelength: 850nm
· Multimode dual fiber
· Automatic cable detection - Auto MDI / MDI-X function
· Diagnostic LEDs for status and activity monitoring
· Suitable for 50/125m and 62.5/125m, fiber optic cables (multimode)
· Compact, robust metal housing
· Excellent short circuit protection
· Lightning and overvoltage protection
· DIN rail (top hat rail)
· Redundant power supply: 12~48 V DC, redundant power supply with reverse polarity protection function
· Extended operating temperature range, -40 °C ~ +80 °C
· Protection class IP40
· Connector 1: RJ45
· Connector 2: SC
· Mode: Multimode
· Distance (km): 2
· Industrial usage: yes
· PoE injector: no
· Ethernet speed: Gigabit
· Dimensions: 118x 92.4 x 40 mm
· Power Consumption: <3W

Special Fetures

· Converts wire-based network signals into fiber optic signals
· High quality and the highest reliability
· 10/100/1000Base-TX to 1000Base-SX
· Ports: 1x RJ45, 1x SC duplex
· Range of up to 500m
· Wavelength: 850nm
· Multimode dual fiber
· Automatic cable detection - Auto MDI / MDI-X function
· Diagnostic LEDs for status and activity monitoring
· Suitable for 50/125m and 62.5/125m fiber optic cables (multimode)
· Compact, robust metal housing
· Excellent short circuit protection

Product Specification

Maximum data transfer rate	1000 Mbit/s
Converter input interface	10Base-T, 100Base-T, 1000Base-T
Converter output interface	1000Base-SX
Fiber optic connector	SC
Connectivity technology	Wired
Maximum transfer distance	500 m
Wavelength	850 nm
Fiber mode structure	Multi-mode
LED indicators	Activity, Status
Product colour	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption (typical)	3 W
