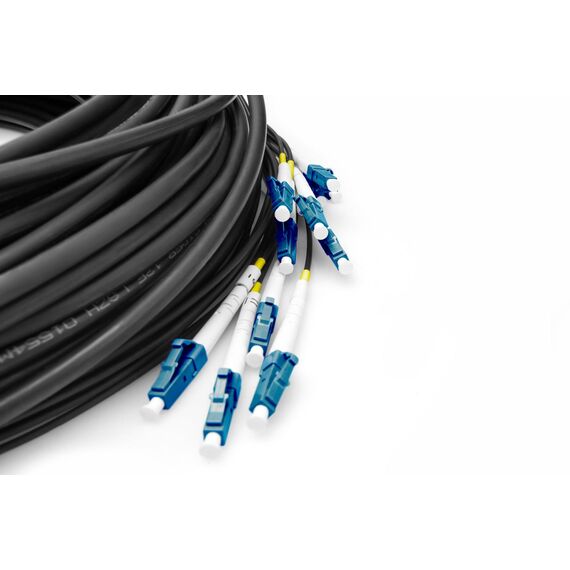

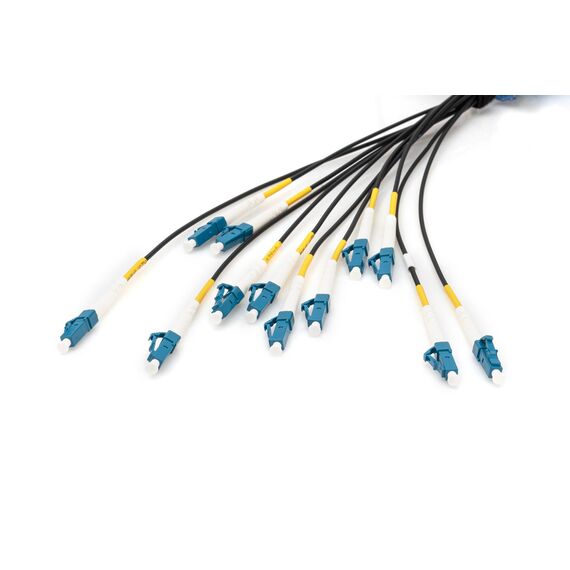

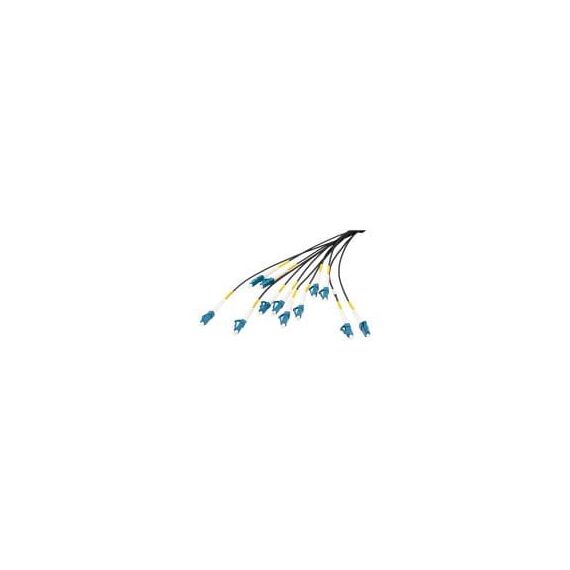

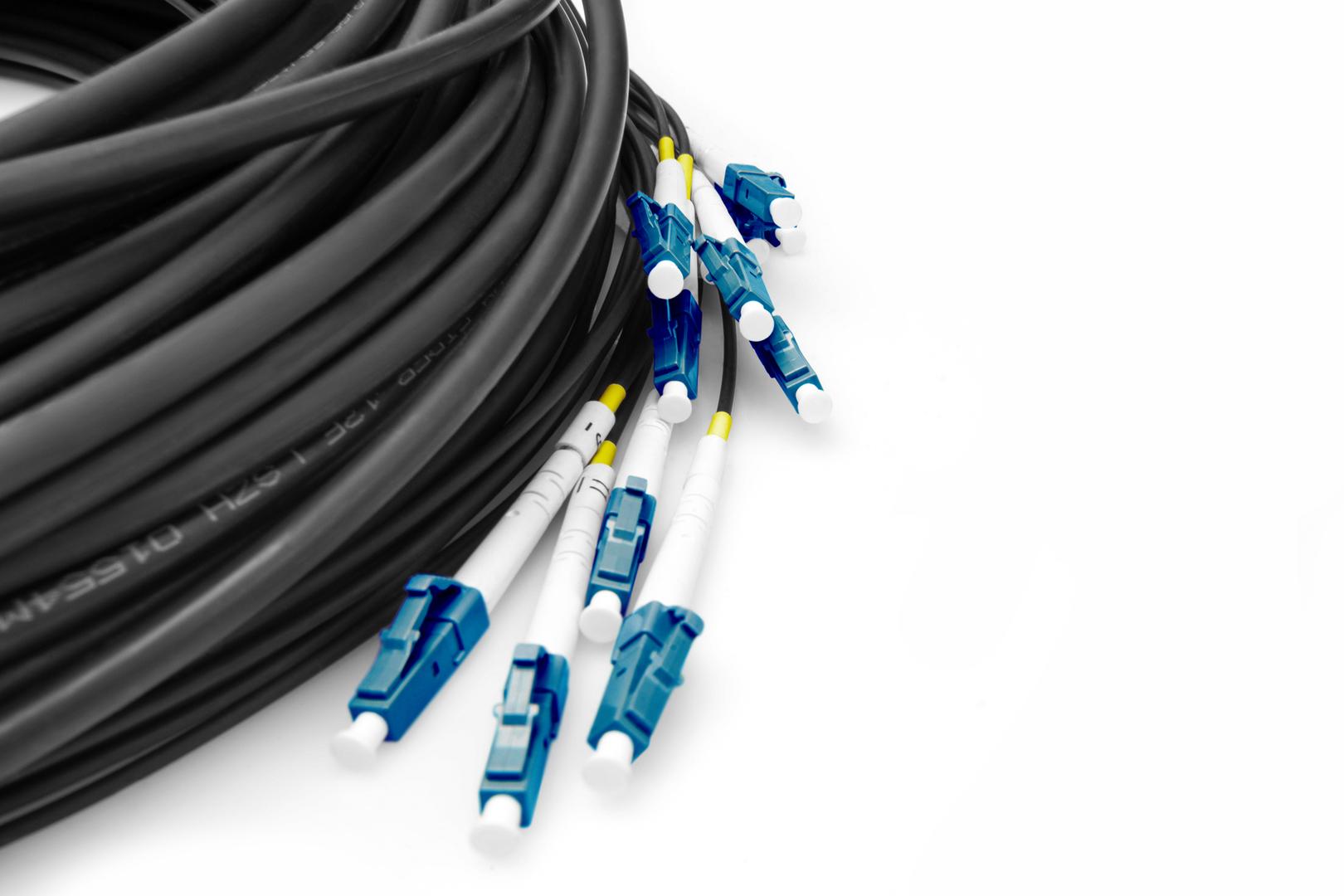

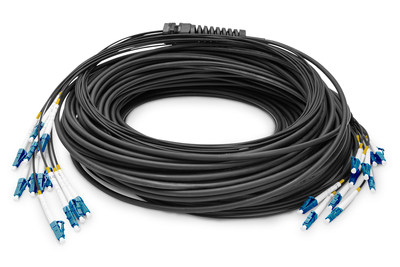

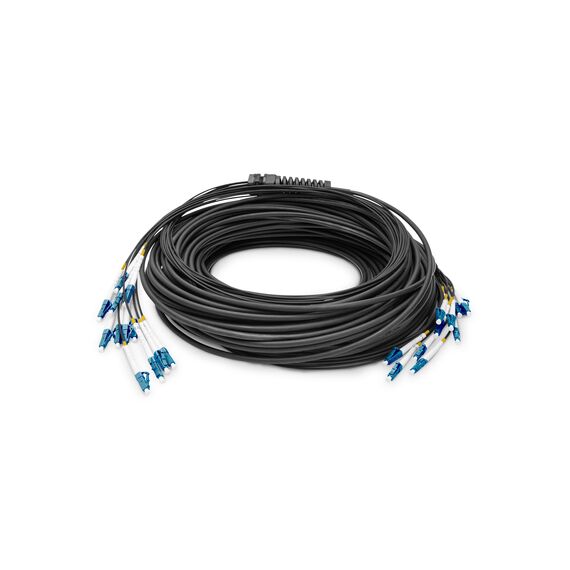

DIGITUS - Breakout cable - LC/UPC single-mode (P) to LC/UPC single-mode (P) - 75 m - fibre optic - 9 / 125 micron - G.657.A1/OS2 - halogen-free, indoor / outdoor - black | DK-2A33CU075BK-BBB
Please sign in so that we can notify you about a reply
Product Features
· Cable type: Breakout / Universal cable (I/A-DQ (ZN) BH X E 9/125µm)· Fiber category: Single mode
· Fiber type: OS2 G.657.A1 9/125
· Number of strands: 12
· Length: 75

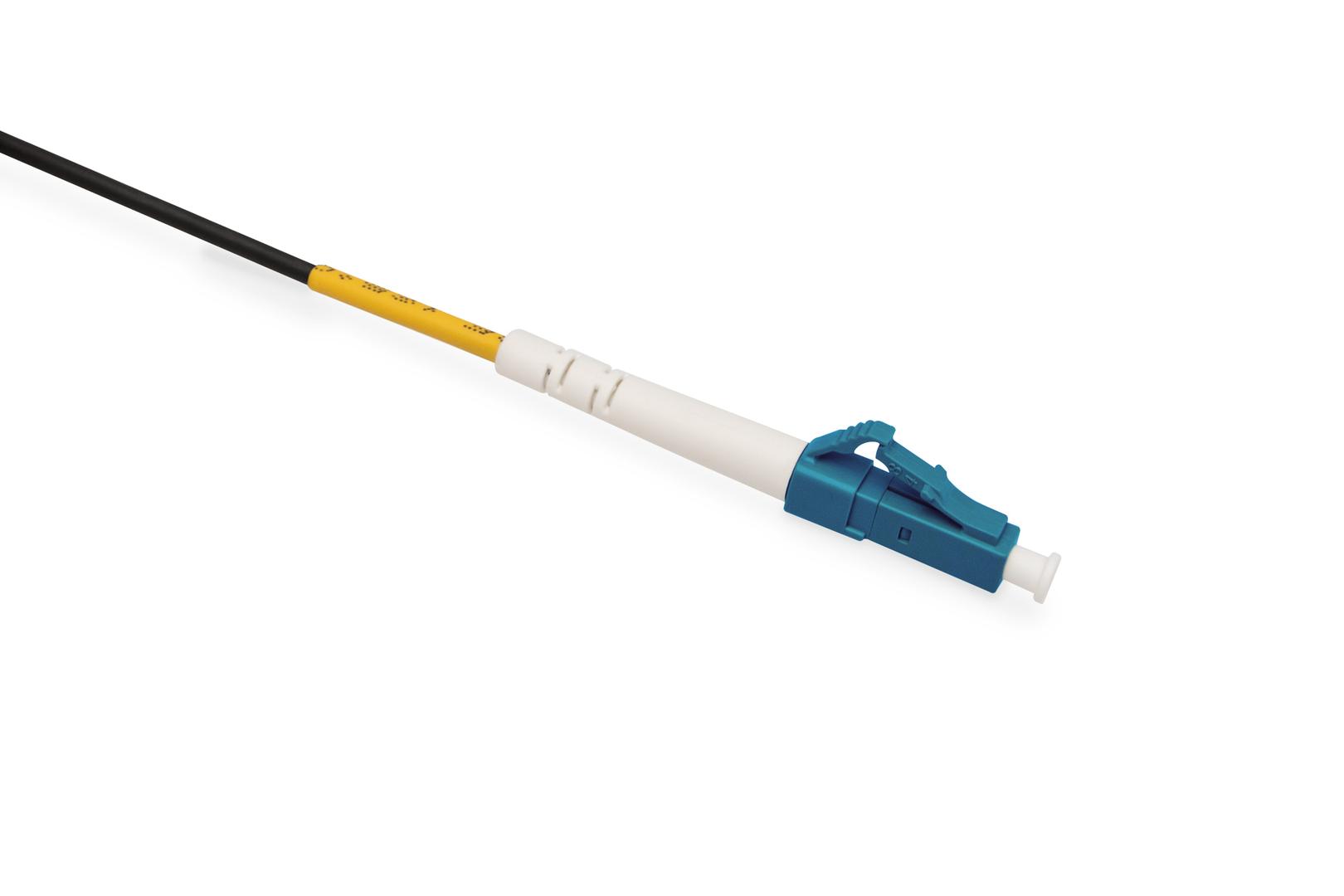

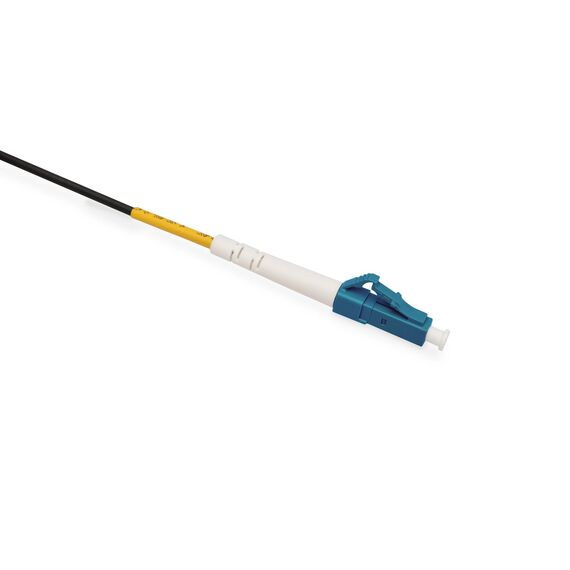

· Plug connection 1: LC/UPC
· Plug connection 2: LC/UPC
· Sheath material: Dca
· Color of outer sheath: Black
· Halogen-free (in accordance with EN 50267-2-3): Yes
· IL in multi mode: max. 0.3 dB
· IL in single mode: max. 0.3 dB
· RL in multi mode: min. 30 dB
· RL in single mode: min. 50 dB
· Operating temperature: -20 to 70
· Storage temperature: -20 to 70
· Two-sided insertion tool
Special Fetures
· Pre-assembled· High-quality plugs, factory-mounted
· Ready for immediate use without additional splicing work
· Standard lengths available from the warehouse
· High-quality components and construction
· Applications can be used indoors and outdoors
· Connection of network cabinets without potential differences
· Individual mechanically protected fibers
· Robust cable construction

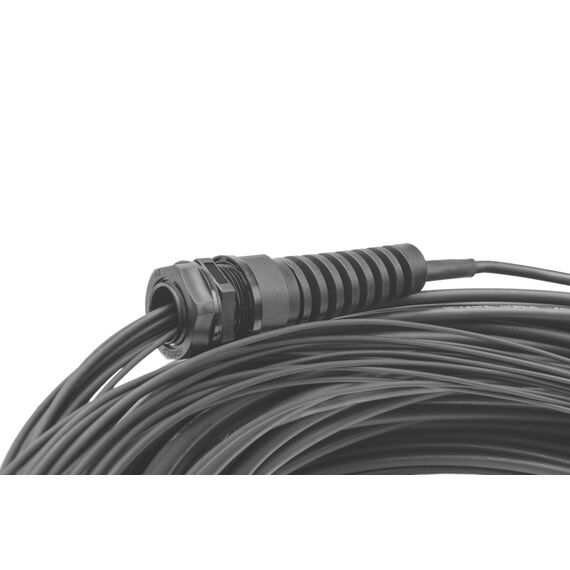

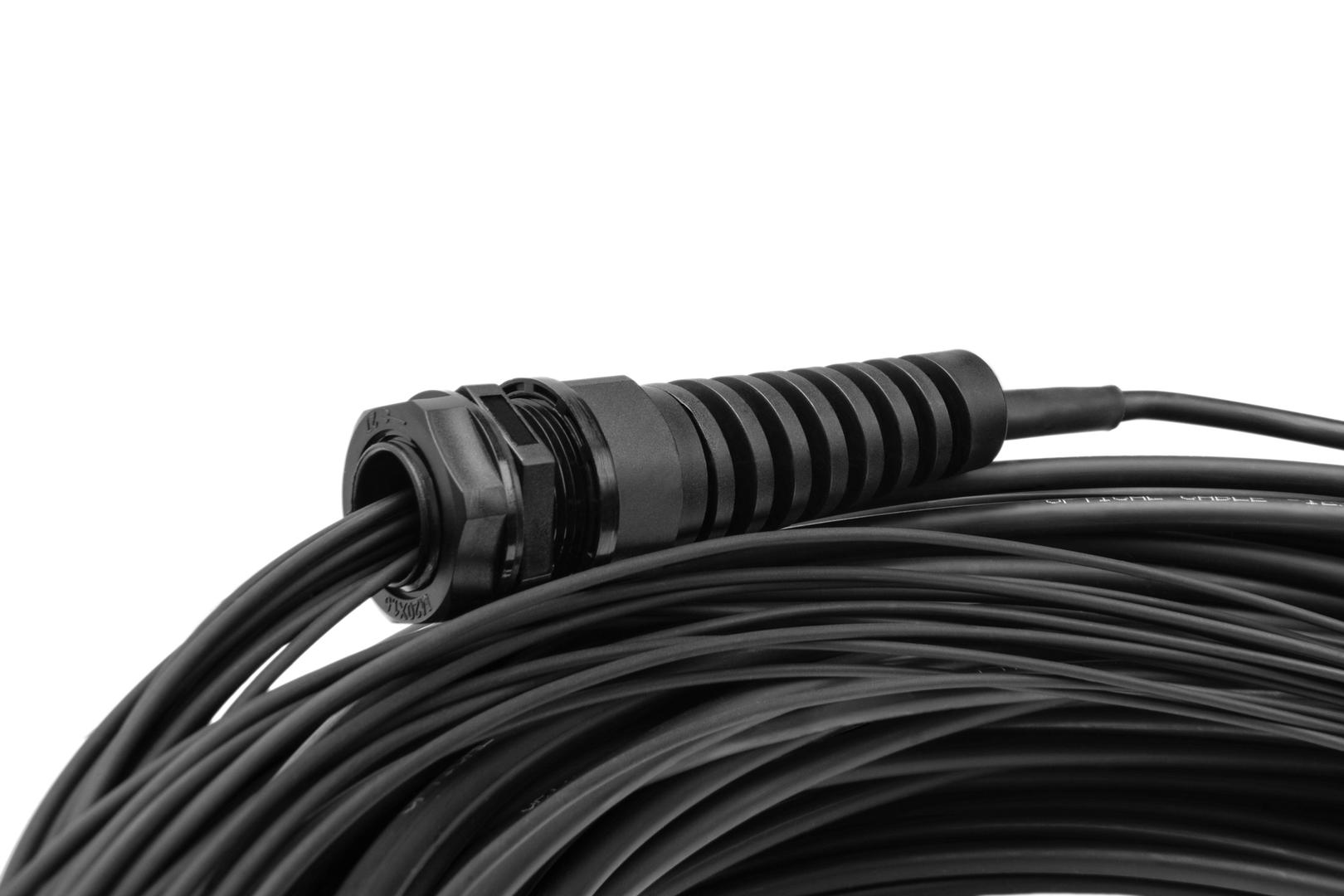

· Two-sided insertion tool for secure installation
Product Specification
| Network Cable Type | Breakout cable - G.657.A1/OS2 |
| Technology | Fibre optic |
| Type of Fibre Optics | Singlemode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Fibre Qty | 12 |
| Core / Cladding Diameter | 9 / 125 micron |
| Features | Halogen-free, indoor / outdoor, breakout, pre-assembled |
| Length | 75 m |
| Colour | Black |
| Connectivity | |

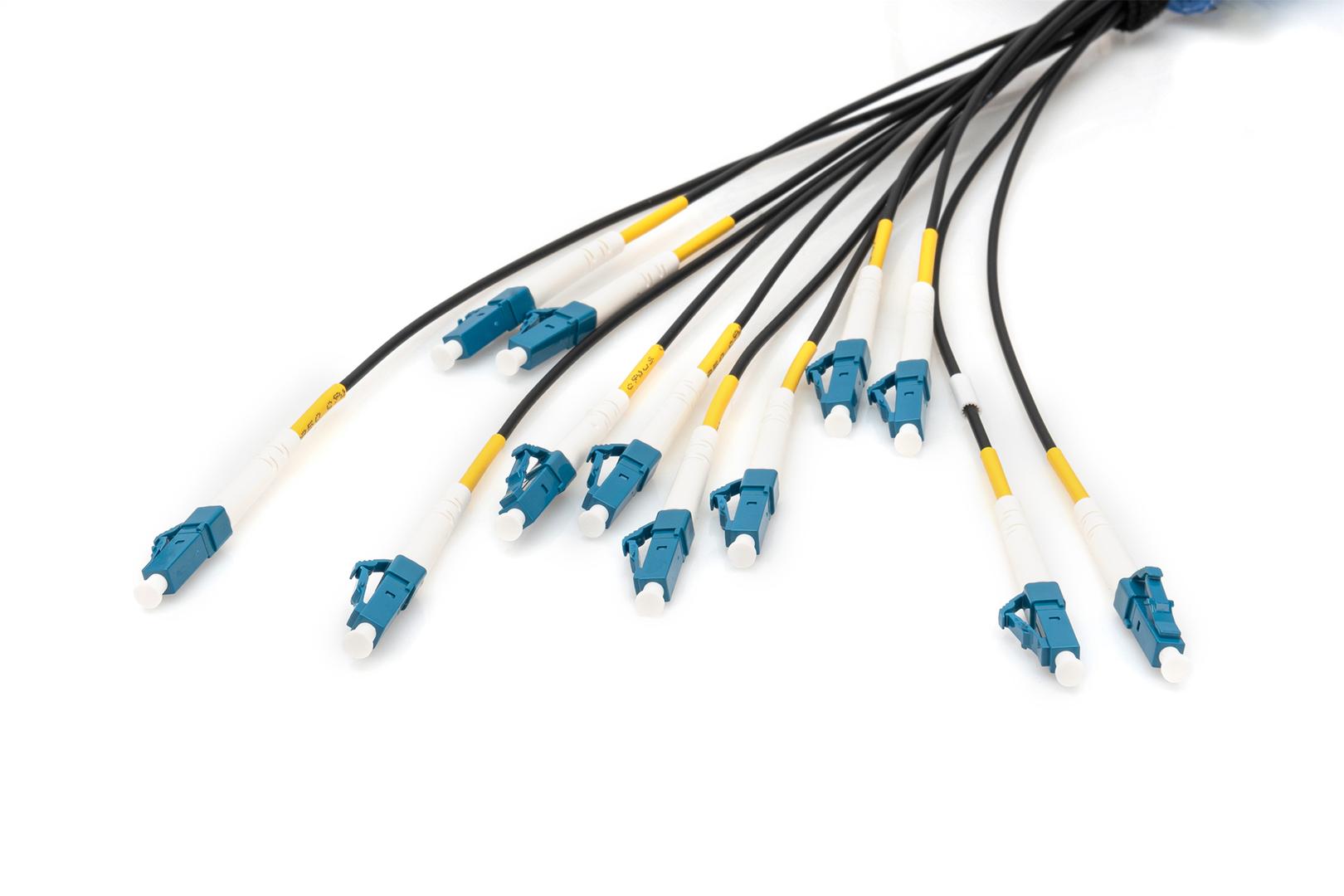

| Connector | 12 x LC/UPC single-mode - plug |
| Connector (Second End) | 12 x LC/UPC single-mode - plug |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.02 kg |
| Manufacturer Warranty | |
| Service & Support | 25 years warranty |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
Features - Digitus - DK-2A33CU075BK-BBB
More Details
Product Code
03:209860
EAN Code
4016032484080
Manufacturer
Digitus
