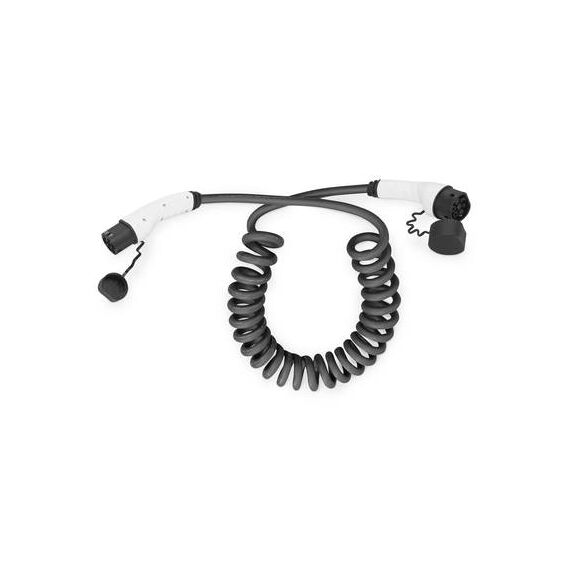

DIGITUS / Power cable / Type 2 female to Type 2 male / 7.5 m / spiral, single-phase | DK-1P32-S-075
DIGITUS / Power cable / Type 2 female to Type 2 male / 7.5 m / spiral, single-phase | DK-1P32-S-075
€268.95 inc. VAT
DK-1P32-S-075
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Type: Spiral cable· Cable length: 7,5 m
· Usuable length: 6 m
· Charging cable type: 3 x 6 mm²+ 2 x 0,5 mm²
· Color: Black
· Jacket: TPU
· Connector: EN 62196-2 type 2
· Rated voltage: 230 V
· Rated power: 7,4 kW
· Rated current: 32 A
· Connection phases: 1
· Operating temperature: -30+50
· Protection class: IP55 (water-jet protected)
Special Features
· Easy plug and play in home wall box and also in public car charging stations· Compact and Easy to carry - lightweight and space-saving cable, easy to store in car boot or hang it in garage
· Safety and durability - high quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
· Connectivity - compatible with all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
· Charging - supports charging processes up to max. 22 kW depending on charger device (1-phase up to max. 7,4 kW)
· CE certified by TÜV
Product Specification
| Cable Type | Power cable spiral, single-phase |
| Rated Current | 32 A |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Length | 7.5 m |
| Recommended Use | Electric car |
| Connectivity | Connectivity |
| Connector | Type 2 - female |
| Connector (Second End) | Type 2 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL 94 V-0, IP55, EN 62196-1:2014, EN 62196-2:2017 |
Features - Digitus - DK-1P32-S-075
More Details
Product Code
04:411108
EAN Code
4016032481485
Manufacturer
Digitus
