DIGITUS Professional - Bulk cable - 500 m - SFTP - CAT 7a - IEEE 802.5/IEEE 802.3 - halogen-free, solid - orange, RAL 2000 | DK-1744-VH-5
DIGITUS Professional - Bulk cable - 500 m - SFTP - CAT 7a - IEEE 802.5/IEEE 802.3 - halogen-free, solid - orange, RAL 2000 | DK-1744-VH-5
€644.27 inc. VAT
DK-1744-VH-5
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We’ll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features

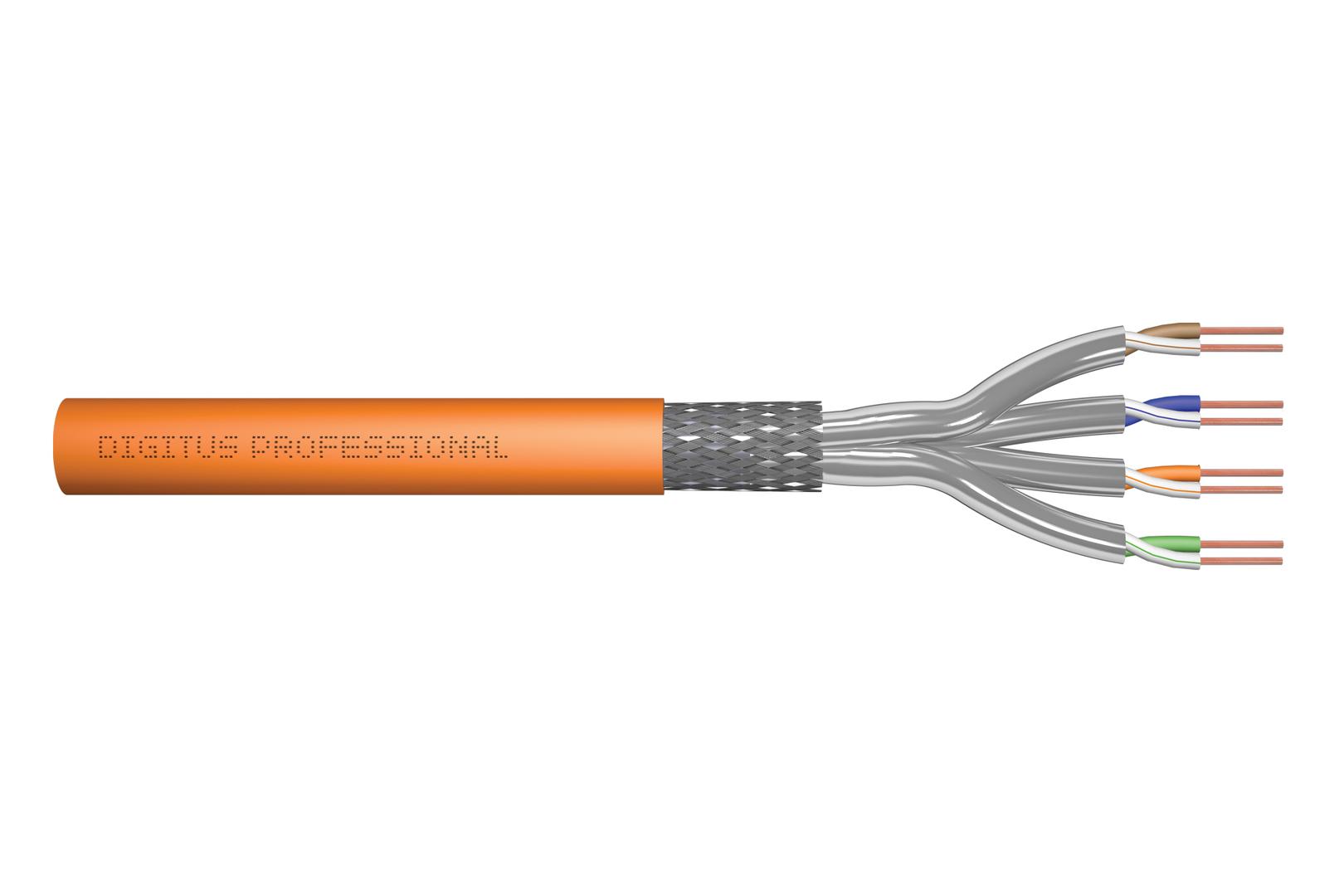

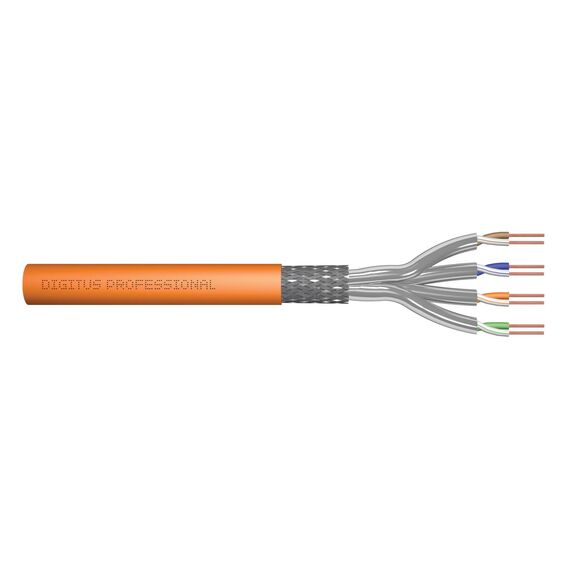

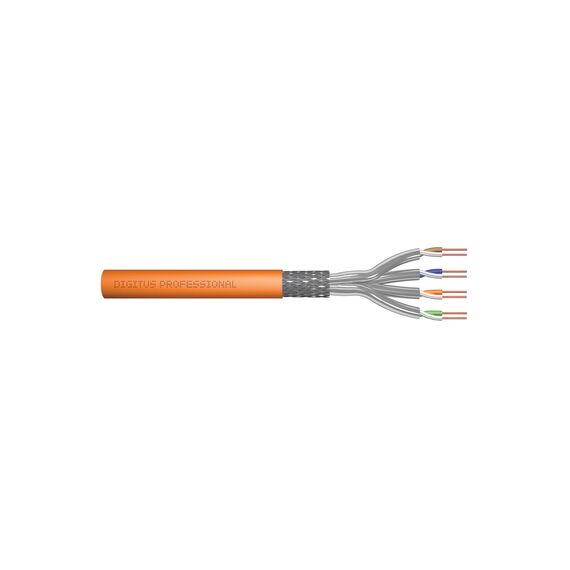

· Physical properties:· Conductor: Bare annealed copper, solid AWG 23/1
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: Copper braid
· Outer sheath: Cca-s1a d1 a1.acc. to EN 50575; LSZH
· Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
· Color: Orange (RAL 2008)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60 °C
· Operating temperature range: -20 °C up to +50 °C
· Installation temperature range: 0 °C up to +50 °C
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
· DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%
· Flame spread: EN 60332-3-24 (LSOH-PVC)
Special Fetures
· 10GBit Ethernet· 1200 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· CPR class Cca-s1a d1 a1
Product Specification
| Network Cable Type | Bulk cable - CAT 7a - IEEE 802.5/IEEE 802.3 |
| Technology | Shielded foiled twisted pair (SFTP) |
| Shielding Material | Aluminium foil with braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH)/flame-retardant halogen-free PVC (FRNC) |
| American Wire Gauge (AWG) | 23/1 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Features | Halogen-free, solid, flame retardant, bare copper conductors, PoE ready |
| Length | 500 m |
| Colour | Orange, RAL 2000 |
| Miscellaneous | |
| Compliant Standards | EN 50173-1, IEC 61156-5, EN 50288-4-1, IEC 60754-2, IEC 61034, IEC 60332-3-24, ISO/IEC 11801 Ed. 2, CPR - up to 1200 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - DK-1744-VH-5
Colour
orange
More Details
Product Code
04:365347
EAN Code
4016032441731
Manufacturer
Digitus
