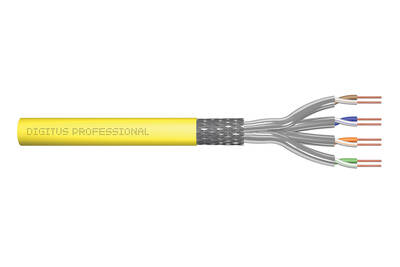

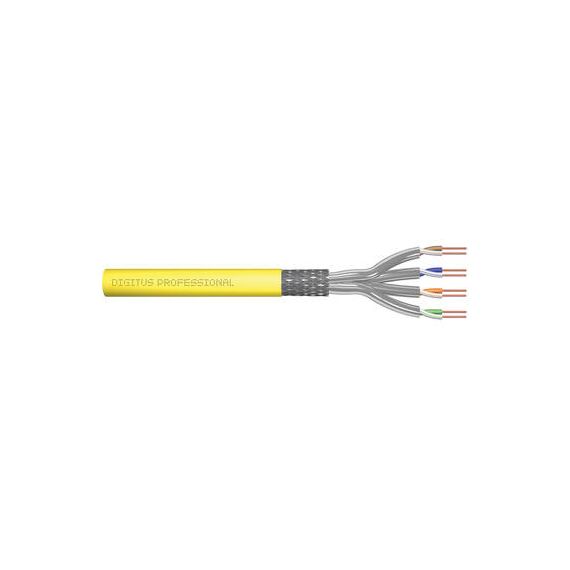

DIGITUS Professional - Bulk cable - 1000 m - SFTP, PiMF - CAT 7a - IEEE 802.5/IEEE 802.3 - halogen-free, riser, solid - yellow | DK-1743-A-VH-10

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 22/1
· System/s of AVCP: AVCP 3
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: Copper tinned braid
· Outer sheath: Dca-s1a d1 a1 acc. EN 50575; LSZH
· Outer sheath diameter (nominal): 0,60 mm (Dca); 0,60 mm (Cca)
· Outer sheath color: Yellow (RAL 1028)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60°C
· Operating temperature range: -20 °C up to +60 °C
· Temperature installation range: 0°C to +50°C
· Overall diameter Simplex (nominal): 7,8 mm (Dca); 7,8 mm (Cca)
· Weight (kg/km): 65 kg (Dca); 65 kg (Cca)
· Electrical properties:
· Impedance: 100±5 Ohm @ 1-1000 MHz
· Capacitance: 40 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%
· Flame spread: EN 60332-1-2 (LSOH-PVC)
· Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
· Smoke density EN 61034-2

Special Fetures

· 10GBit Ethernet
· 1500 MHz transmission frequency
· Permanent link certified
· PoE, PoE + , Power over Ethernet support
· CPR class Dca-s1a d1 a1

Product Specification

Network Cable Type	Bulk cable - CAT 7a - IEEE 802.5/IEEE 802.3
Technology	SFTP, PiMF
Shielding Material	Aluminium foil with braid
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	22/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Features	Halogen-free, riser, solid, flame retardant, PoE+ Ready, bare copper conductors, PoE ready
Length	1000 m
Weight	70 kg
Colour	Yellow
Miscellaneous
Compliant Standards	EN 50173-1, IEC 61156-5, EN 50288-4-1, IEC 60754-2, IEC 61034, IEC 60332-3-24, EN 50174-2, ISO/IEC 11801 Ed. 2, EN 50173-4 - up to 1500 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
