DIGITUS Professional / Bulk cable / 500 m / 8 mm / S/FTP, PiMF / simplex / CAT 7a / IEEE 802.5/IEEE 802.3 / halogen-free, riser, solid / sulfur yellow, RAL 1016 | DK-1743-A-VH-5-LD

Product Features

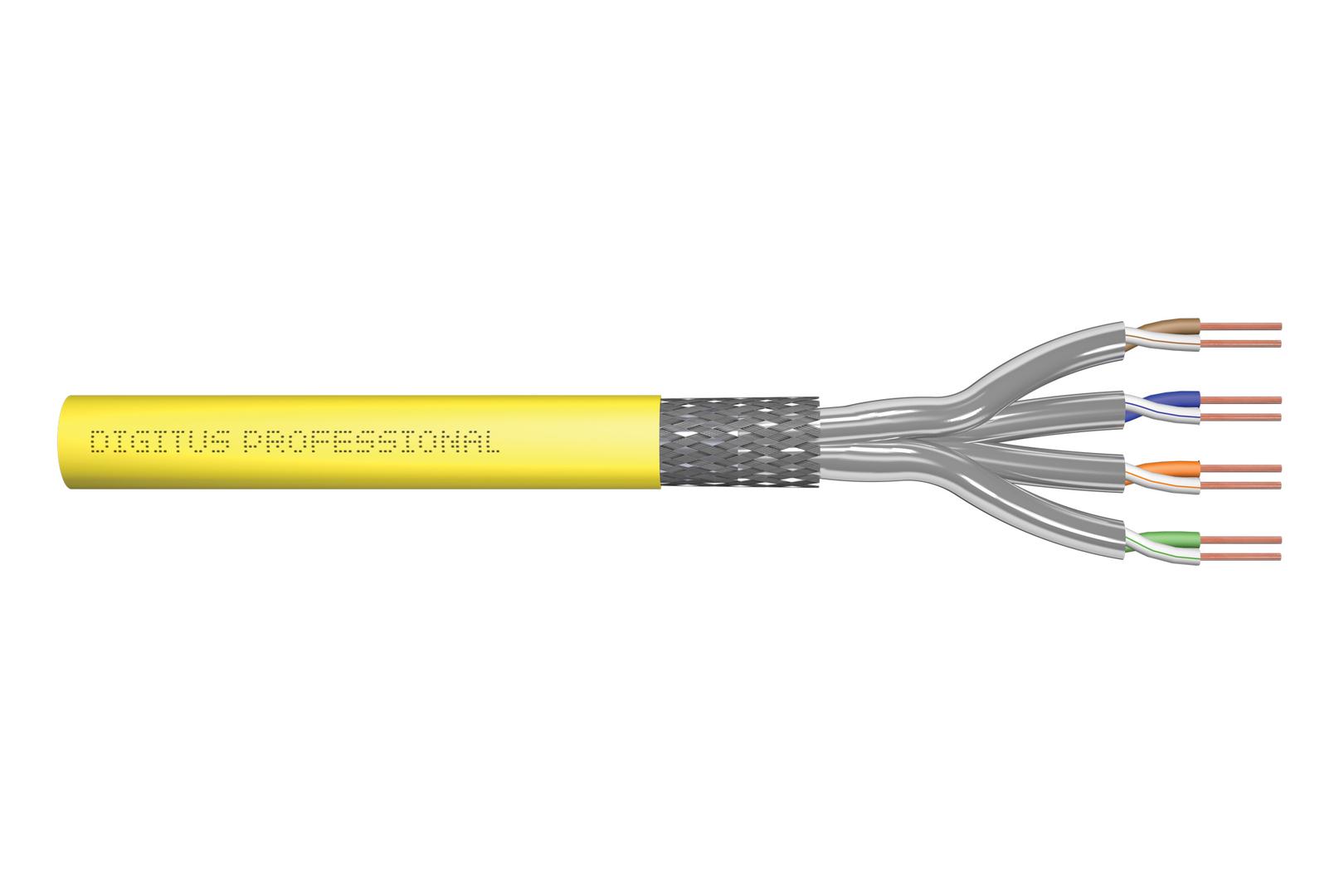

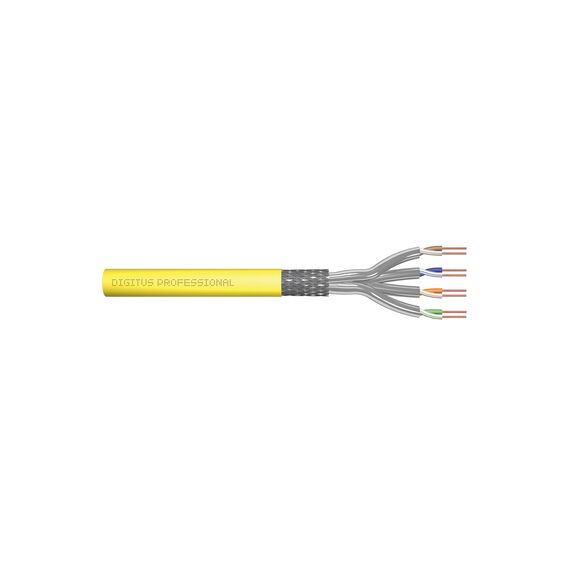

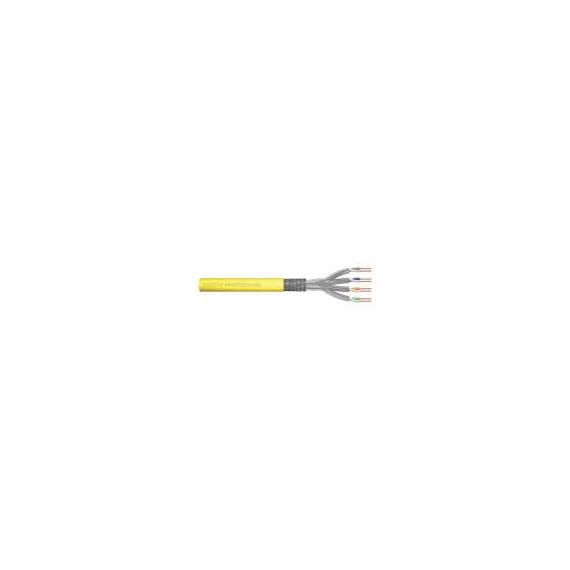

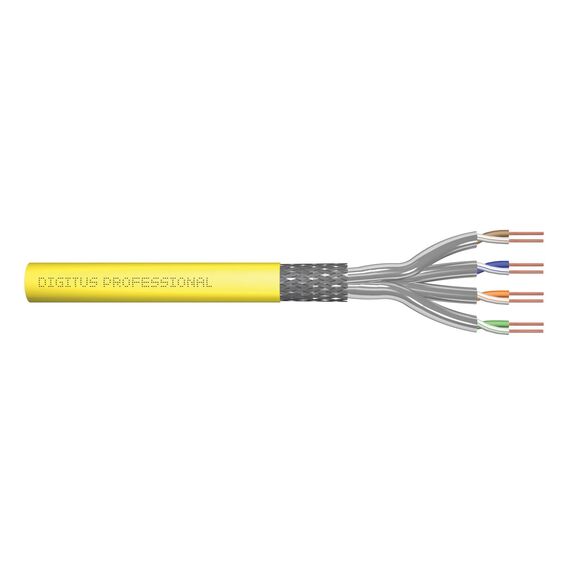

· Physical properties:
· Cable: Bare copper wire AWG 23/1
· System/s of AVCP: AVCP 3
· Insulation: SFS-PE (foamed polyethylene sheath)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: blue-white, orange-white, green-white, brown-white
· Shielding of the individual pairs: aluminum-covered polyester film, 100% coverage
· Overall shielding: Copper mesh
· Outer sheath: Halogen-free (FRNC-C/LSZH-3)
· Outer sheath thickness: 0.50 mm nominal
· Color: Sulfur yellow (RAL 1016)
· Length: 500 m
· Mechanical properties:
· Cable grip: 150 N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Transport and storage temperature range: -20 °C to +60 °C
· Operating temperature range: -20 °C to +60 °C
· Installation temperature range: 0 °C to +50 °C
· External diameter: 8.0 mm nominal
· Non-flammability: IEC 60332-3-24
· Halogen-free & smoke density: IEC 60754-2 & IEC 61034
· Fire load: 700 Mj/km
· Weight: 70 kg/km
· Weight: 70 kg/km
· Electrical properties:
· Average impedance: 100±5 ohm at 1-1250 MHz
· Capacity: 40 pF/m nominal @ 1 KHz
· Capacity unbalance (pair earth): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 Gohm x km min.
· Loop resistance: 147 ohm/km max. (2% max. non-balanced resistance)
· Operating voltage: 72 VDC max.
· Coupling attenuation: Grade 1 (CA type 1b)
· Phase delay: 450 nS/100 m max.
· Signal delay: 10 nS/100 m max.
· Segregation classification: d in accordance with EN 50174-2
· NVP: 79%
· Flame spread: EN 60332-1-2 (LSOH-PVC)
· Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
· Smoke density: EN 61034-2

Special Features

· 10 GBit Ethernet
· 1250 MHz transmission frequency
· Permanent link certified
· PoE, PoE+ , Power over Ethernet support
· BauPVO category Dca-s1a d1 a1

Product Specification

Network Cable Type	Bulk cable - CAT 7a - IEEE 802.5/IEEE 802.3
Technology	Simplex S/FTP, PiMF
Shielding Material	Metal foil with braid
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	23/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Features	Halogen-free, riser, solid, PoE+ Ready, bare copper conductors, PoE ready, Foam-Skin Polyethylene (SFS-PE) insulation
Length	500 m
Diameter	8 mm
Colour	Sulfur yellow, RAL 1016
Miscellaneous	Miscellaneous
Compliant Standards	ISO/IEC 11801, IEC 60754-2, IEC 61156-7, IEC 61034, IEC 60332-3-24, EN 50288-9-1, DIN EN 50288-4-1, DIN EN 50173 - up to 1250 MHz
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	53 cm
Shipping Depth	53 cm
Shipping Height	43.5 cm
Shipping Weight	33.5 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	25 years warranty
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
