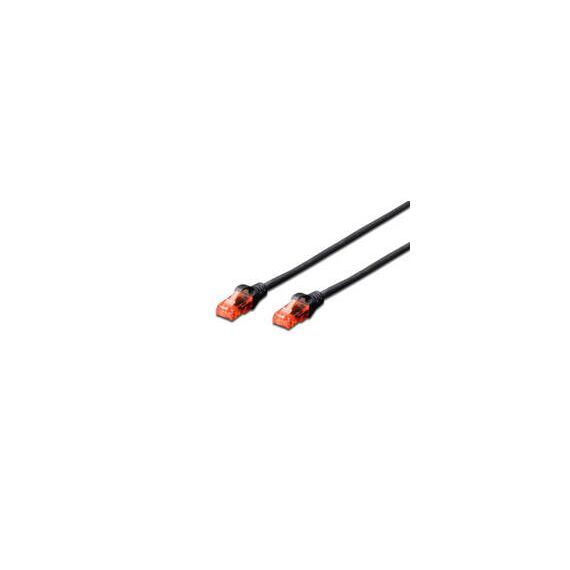

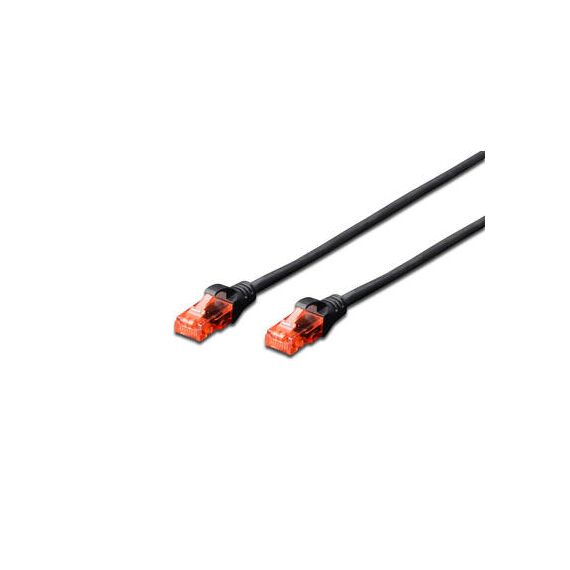

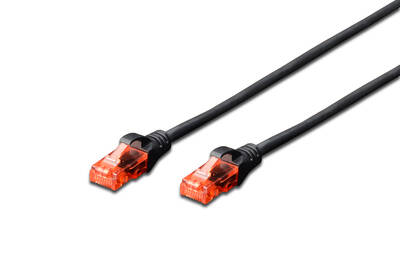

DIGITUS Professional / Patch cable / RJ-45 (M) to RJ-45 (M) / 25 cm / UTP / CAT 6 / IEEE 802.3 / halogen-free, molded, snagless / black | DK-1617-0025/BL

Product Features

· 2x RJ45 (8P8C) connectors
· Boots with kink protection, strain relief and latch protection
· Length marking on boot
· Conductor: Copper (Cu)

Special Features

· With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
· Transparent red colored plug for easy identification of Category 6 (250 MHz)
· Conductor: Copper (Cu)
· PoE+ ready

Product Specification

Network Cable Type	Patch cable - CAT 6 - IEEE 802.3
Technology	Unshielded twisted pair (UTP)
Wiring Scheme	T568B
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	26/7
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Plated Connector	Gold
Features	Halogen-free, molded, snagless, PoE+ Ready, strain relief, minimised Near-End Crosstalk (NEXT), length indication, kink protection, latch protection, poly bag package
Length	25 cm
Colour	Black
Connectivity	Connectivity
Connector	RJ-45 - male
Connector (Second End)	RJ-45 - male
Miscellaneous	Miscellaneous
Compliant Standards	IEC 60332-1, ISO/IEC 11801, TIA/EIA-568-B, IEC 61034, EN 50173, TIA/EIA 568B - up to 250 MHz
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
