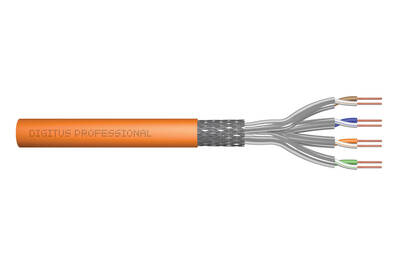

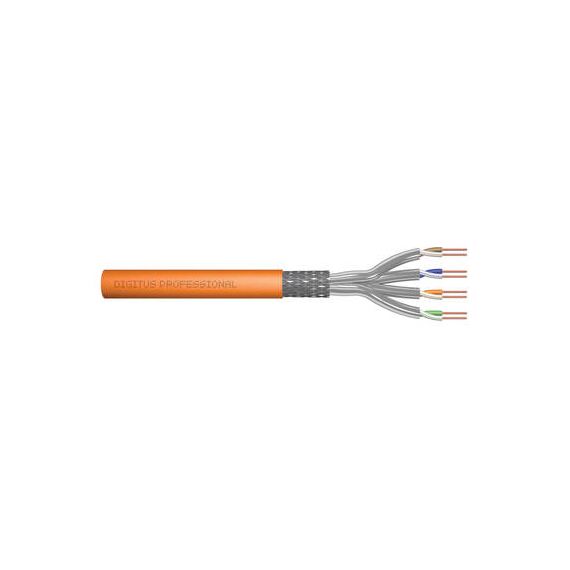

DIGITUS Professional - Bulk cable - 1000 m - 7.5 mm - S/FTP - simplex - CAT 7 - IEEE 802.5/IEEE 802.3 - halogen-free, solid - orange, RAL 2000 | DK-1744-VH-10

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 23/1
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: Copper braid
· Outer sheath: Cca-s1a d1 a1.acc. to EN 50575; LSZH
· Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
· Color: Orange (RAL 2008)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60 °C
· Operating temperature range: -20 °C up to +50 °C
· Installation temperature range: 0 °C up to +50 °C
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
· DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%
· Flame spread: EN 60332-3-24 (LSOH-PVC)

Special Fetures

· 10GBit Ethernet
· 1200 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· CPR class Cca-s1a d1 a1

Product Specification

Network Cable Type	Bulk cable - CAT 7 - IEEE 802.5/IEEE 802.3
Technology	Simplex S/FTP
Shielding Material	Aluminium foil with copper braid
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	23/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Conductor Resistance (per km)	190 Ohm
Features	Halogen-free, solid, PoE+ Ready, PoE ready, bare annealed copper conductors, drum package, Foam-Skin Polyethylene (SFS-PE) insulation
Length	1000 m
Diameter	7.5 mm
Colour	Orange, RAL 2000
Miscellaneous
Compliant Standards	ISO/IEC 11801, EN 50288-4-1, EN 50173, IEC 60332-3-24, EN 50174-2, EN 50575:2014, CPR Cca - up to 1200 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	50 °C
