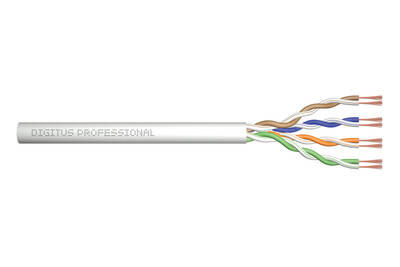

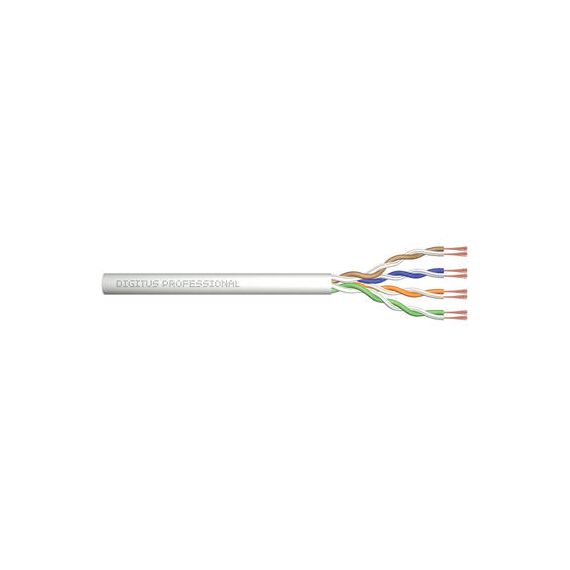

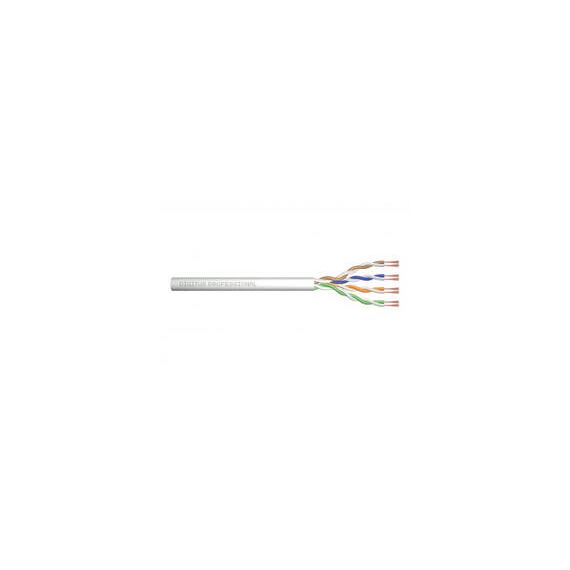

DIGITUS Professional - Bulk cable - 305 m - UTP - CAT 5e - grey | DK-1511-P-305-1

Product Features

· Insulation: HD-PE
· Outer sheath diameter: 0.55 mm nominal
· Overall diameter: 4.6 mm nominal
· Tensile loading: 150 N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -10 °C up to +75 °C
· Operating temperature range: -10 °C up to +60 °C
· Installation temperature range: 0 °C up to +50 °C
· DC loop resistance: 280 km
· Resistance unbalance 2%
· Insulation resistance: 2000M/km @500V
· Capacitance: nom. 48 nF/km @ 800 Hz
· Capacitance unbalance (pair-ground): 1500 nF/km
· Characeristic Impedance: 100 ± 15 Ohm @ 10-100 MHz
· NVP: 67%
· Propagation delay: nom. 555 ns/100 m
· Test voltage (DC 1 min) core/core: 1000V
· Coupling attenuation: 40 dB
· Mean impedance: 100±10 Ohm @ 10-100 MHz
· Capacitance: 48 pF/m nominal @ 800 Hz
· Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
· Insulation resistance: 2 GOhm x km min.
· DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: 40 dB
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 20 nS/100 m max.

Special Fetures

· Suitable for direct assembly of RJ45 connectors in order to produce patch cords
· Suitable for installations of class D cable lines, 100 MHz
· According to the norms ANSI/TIA 568-C; ISO/IEC 11801 2nd Ed.; EN 50173; EN 50288-3-1
· Conductor: Copper (Cu)
· PoE ready

Product Specification

Network Cable Type	Bulk cable - CAT 5e
Technology	Unshielded twisted pair (UTP)
Jacket Material	PVC
American Wire Gauge (AWG)	26/7
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Length	305 m
Colour	Grey
Miscellaneous
Compliant Standards	ISO/IEC 11801, EN 50173, EN 60811-404 - up to 100 MHz
Environmental Parameters
Min Operating Temperature	-10 °C
Max Operating Temperature	60 °C
