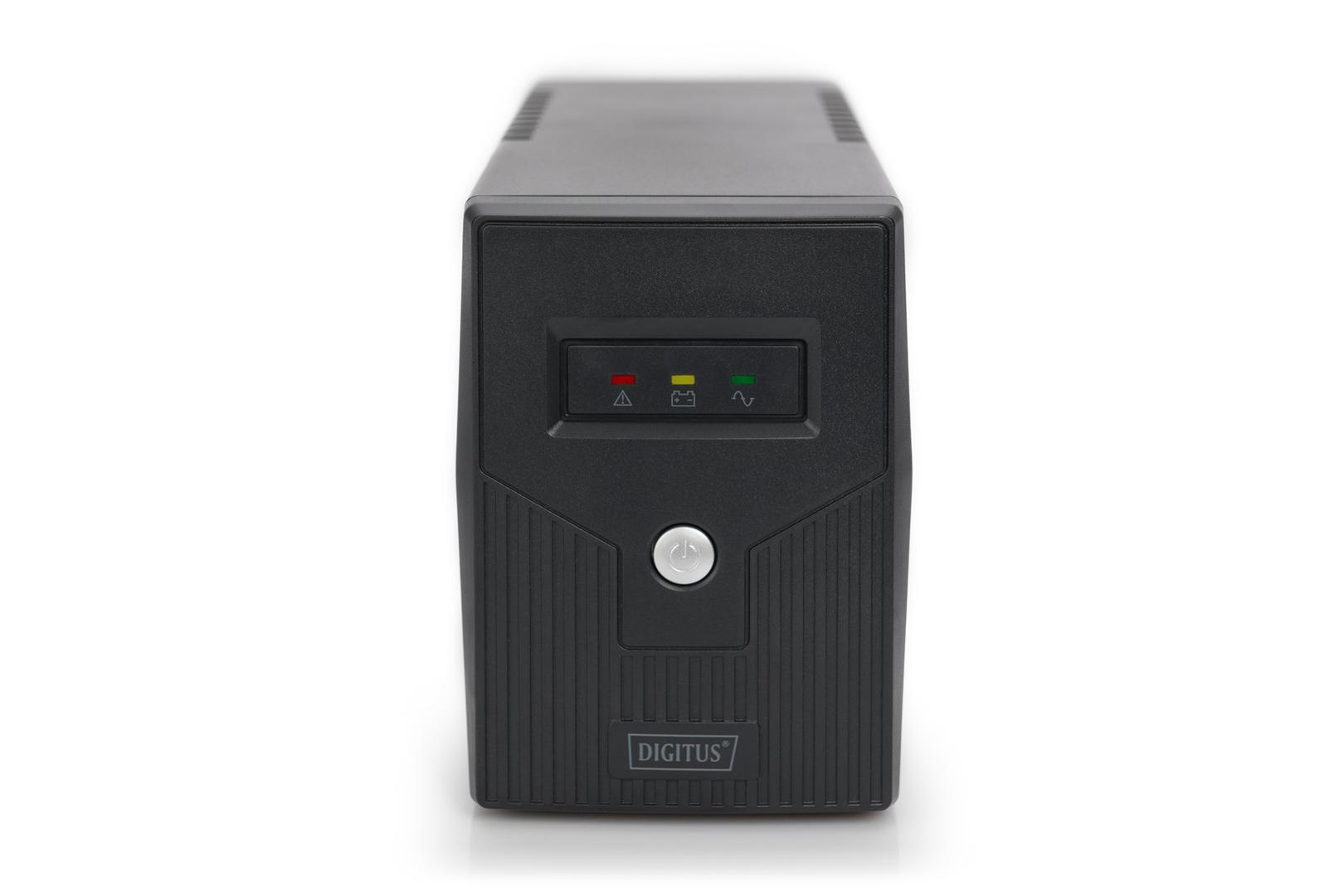

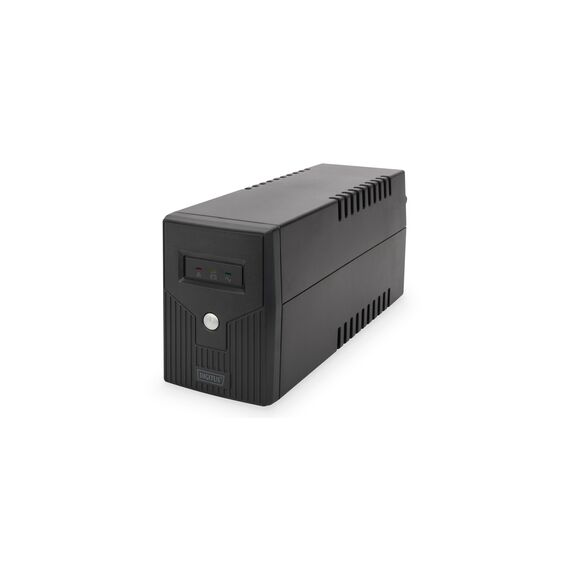

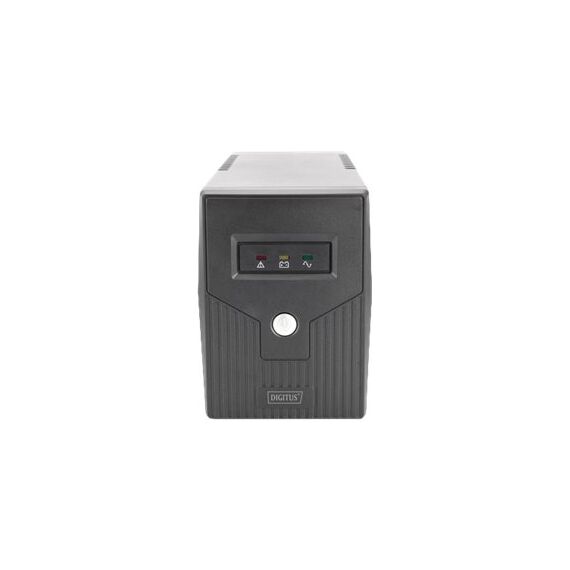

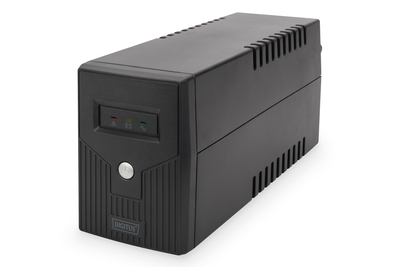

DIGITUS Professional DN-170063 - UPS - AC 230 V - 360 Watt - 600 VA - 7 Ah - USB - output connectors: 2 | DN-170063
DIGITUS Professional DN-170063 - UPS - AC 230 V - 360 Watt - 600 VA - 7 Ah - USB - output connectors: 2 | DN-170063
€112.86 inc. VAT
DN-170063
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

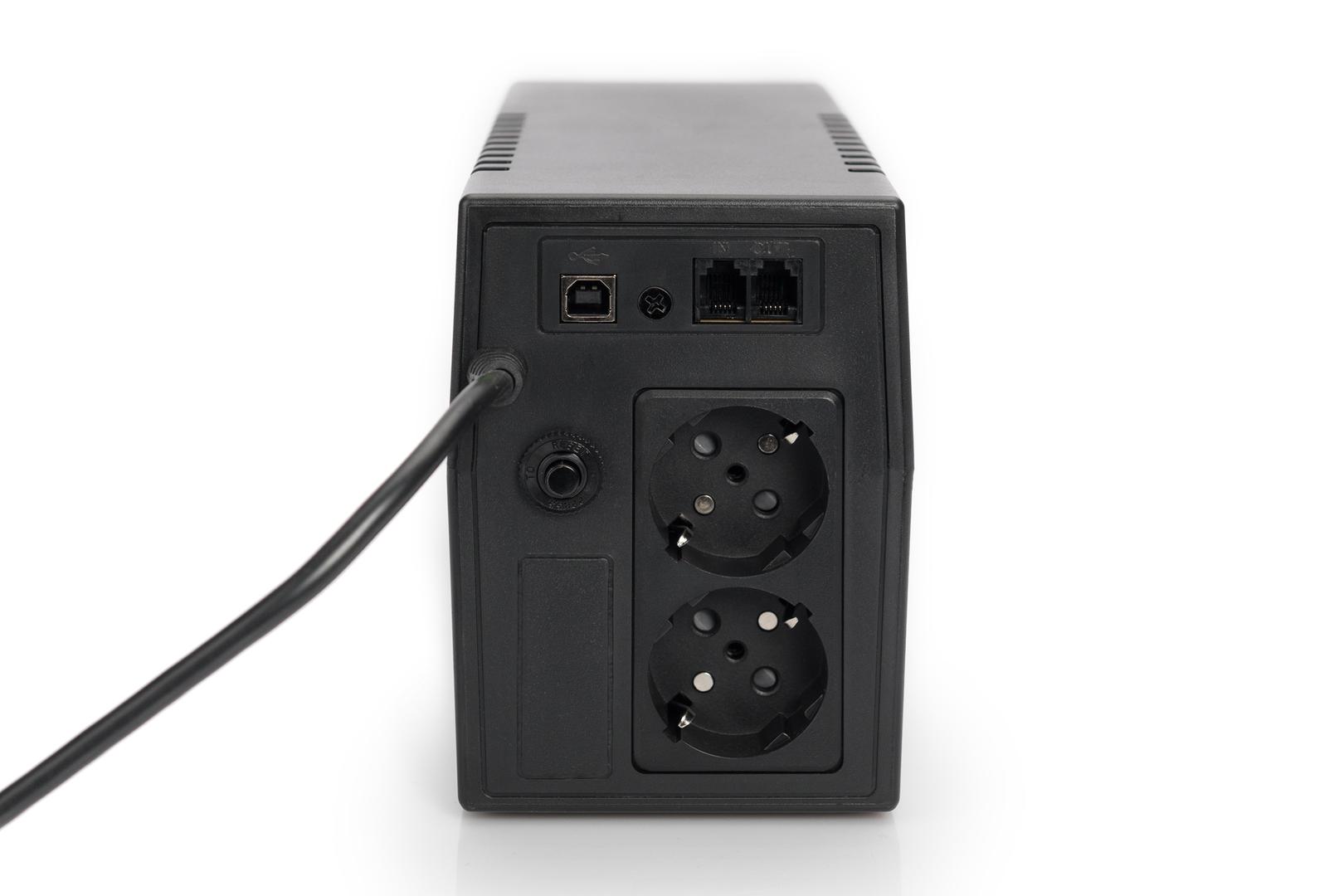

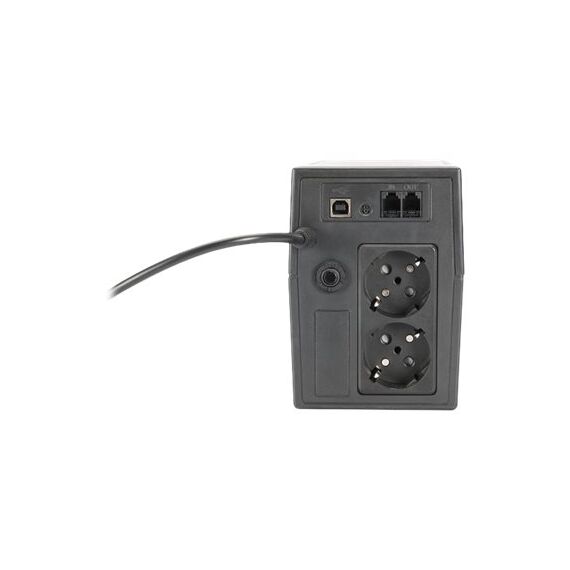

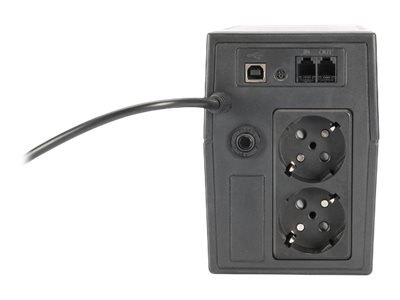

· Connection Type: 2x safety outlets, 2x RJ11, 1x USB 2.0 type B· Capacity: 600 VA/360 W
· Input voltage: 230 VAC
· Voltage range: 162-290 VAC
· Frequency range: 50 Hz (auto sensing)
· Output voltage: 230 VAC ± 10%
· AC voltage regulation (battery mode): 10%
· Frequency range (battery mode): 50 Hz ± 1%
· Typical transfer time: 2-6 ms
· Waveform (battery mode): Simulated sine wave
· Battery: 12V/7Ah x 1
· Typical recharge time: 6-8 hours to recover 90% of capacity
· Alarm sounds: Battery mode (sounding every 10 sec.), low battery (sounding every second), overload (sounding every 0.5 seconds), fault (continously sounding)
· Humidity: 0-95% RH @ 0 °C to +40 °C (non condensing)
· Noise level: Less than 40 dB
· Boost and buck AVR for voltage stabilization
· Auto restart while AC is recovering
· Dimensions (HxWxD): 142 x 101 x 298 mm
· Weight: 4.35 kg
Special Fetures
· Boost and buck AVR for voltage stabilization· Fast bridging times in case of power blackout
· Compact enclosure for space saving installation in your IT infrastructure
· Quick charging time
· Produce a low noise level under 40 dB
Product Specification
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 162 - 290 V |
| Frequency Provided | 50 Hz ± 1% |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 2 x power CEE 7/7 |
| Output Voltage | 230 V ± 10% - 50 Hz |
| Power Capacity | 360 Watt / 600 VA |
| Dataline Surge Protection | Phone line - RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Battery | |
| Quantity | 1 |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Recharge Time | 6 hours |
| Transfer Time | 2 ms |
| Networking | |

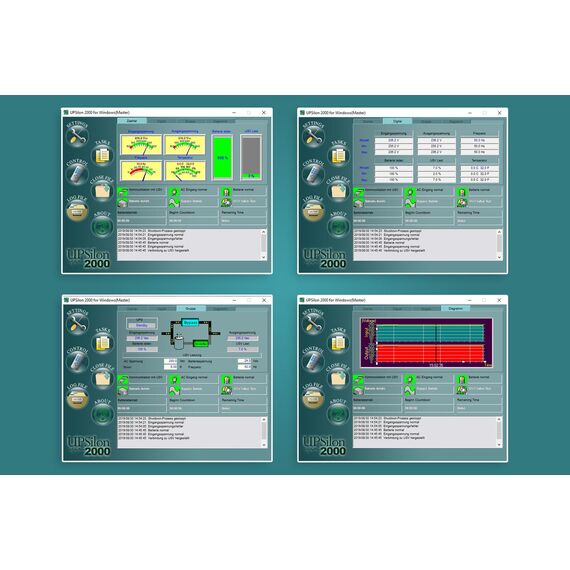

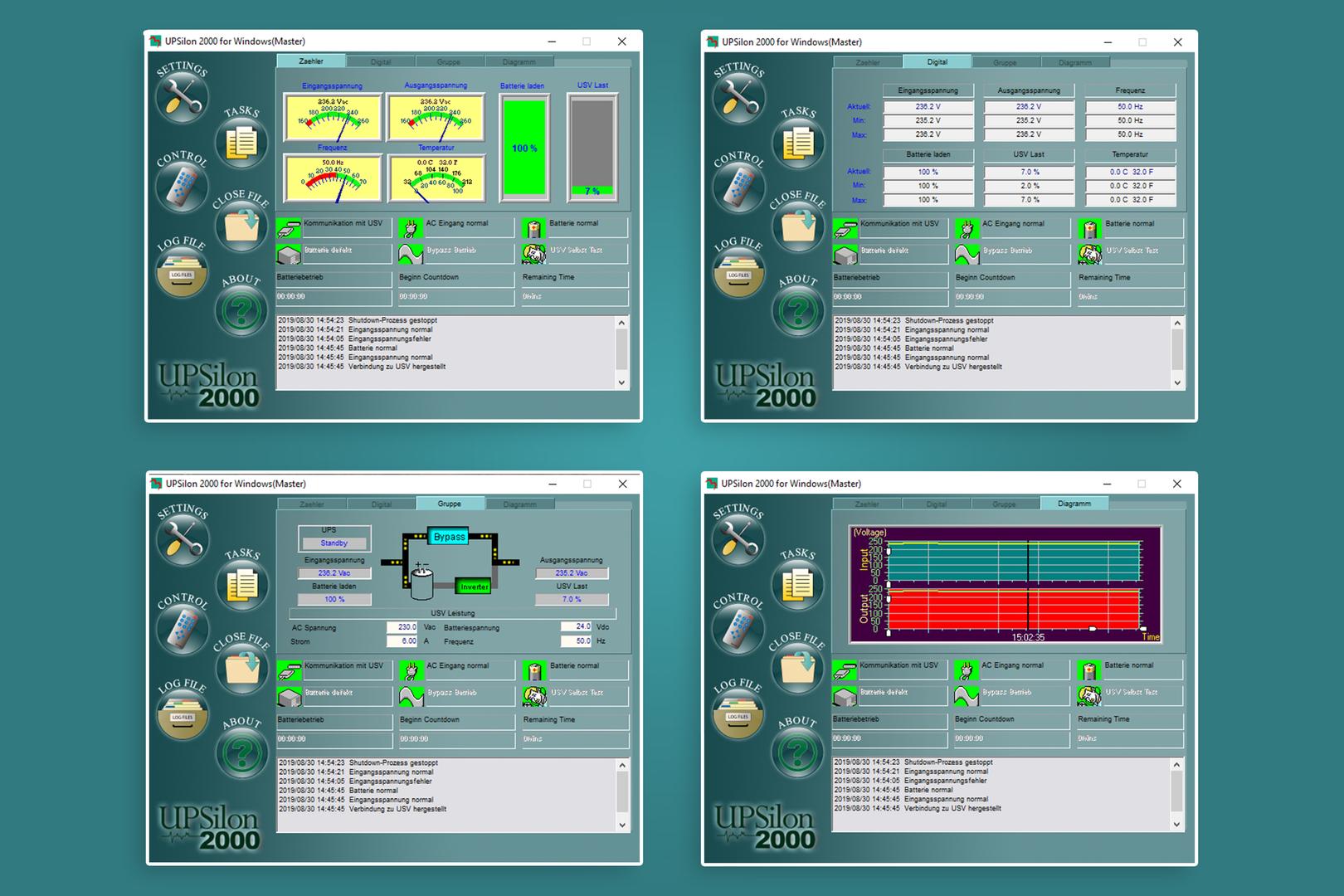

| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | Power cable - integrated |
| Features | Audible alarm, Automatic Voltage Regulation (AVR), LED indicators, overcharge protection, overload protection, cold-start function, buck operation, auto restart |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 40 dB |
| Dimensions & Weight | |
| Width | 10.1 cm |
| Depth | 29.8 cm |
| Height | 14.2 cm |
| Weight | 4.35 kg |
Features - Digitus - DN-170063
More Details
Product Code
5095785
EAN Code
4016032441342
Manufacturer
Digitus
