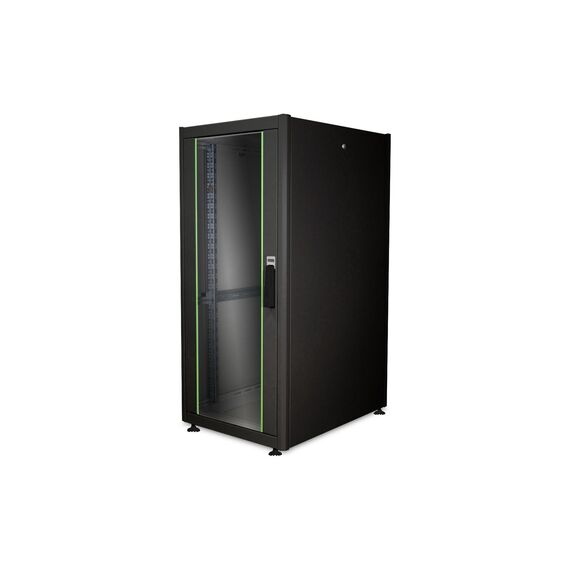

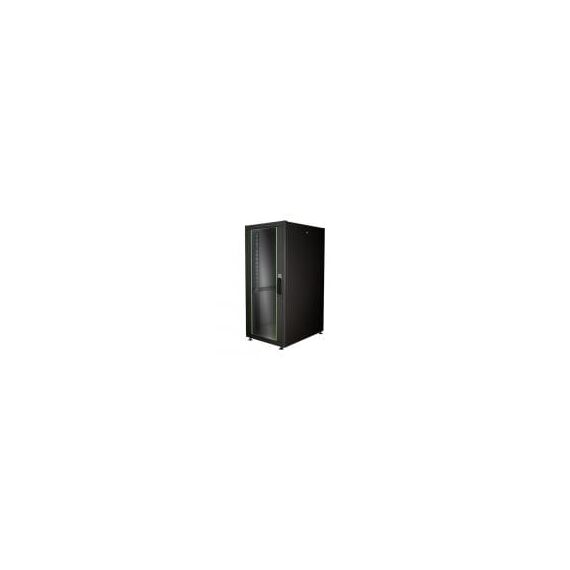

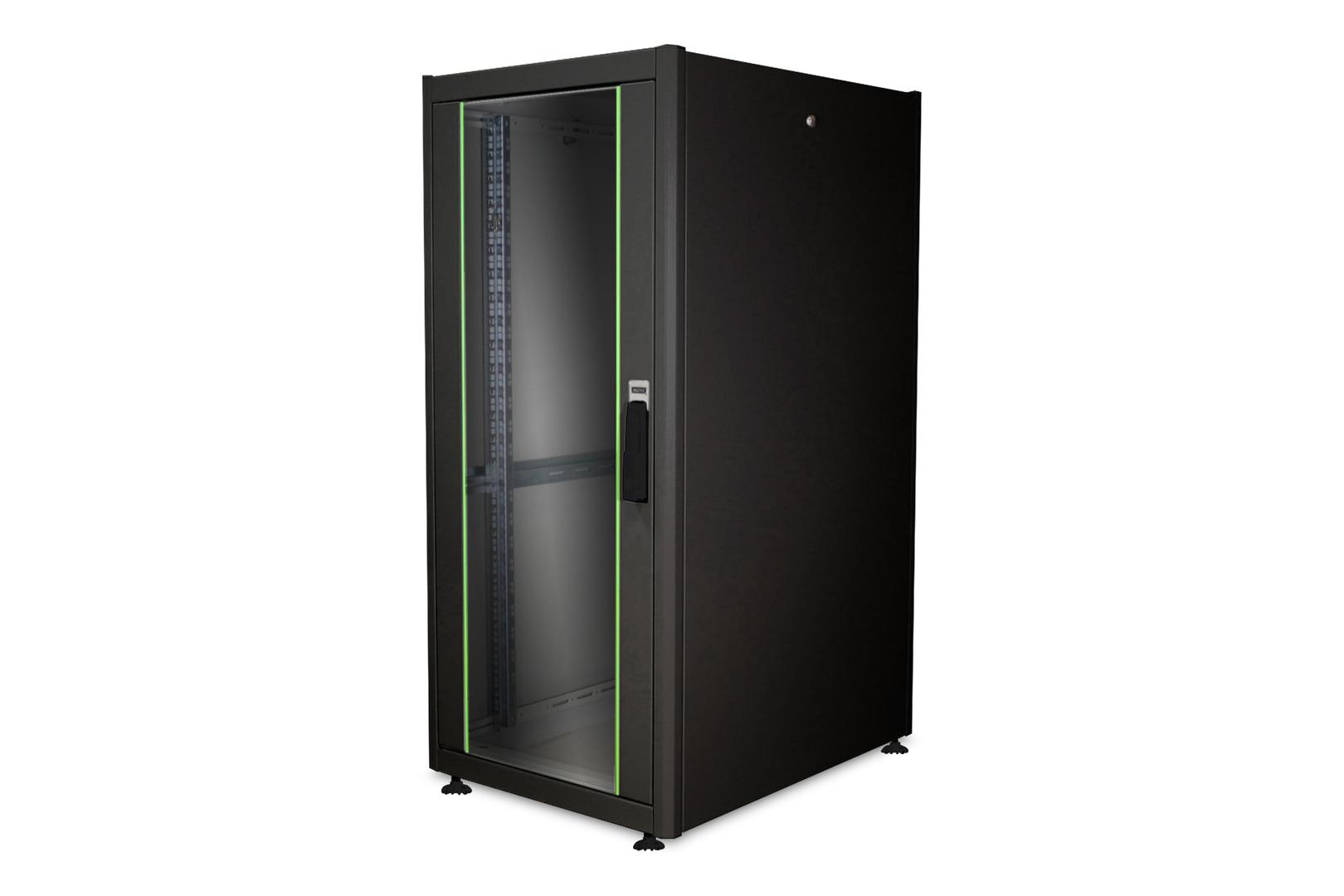

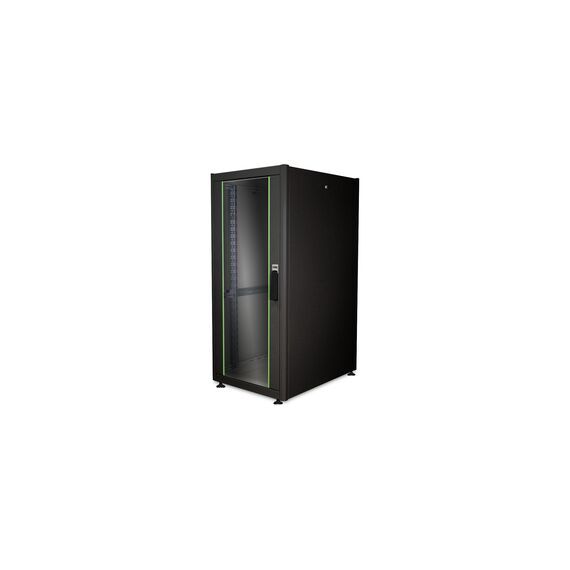

DIGITUS Professional Dynamic Basic Series DN-19 26U-6/8-DB - Rack cabinet - black, RAL 9005 - 26U - 19" | DN-19 26U-6/8-DB
Please sign in so that we can notify you about a reply
Product Features
· Safety class rating IP20· Complete metal frame front door with safety glass
· Lock system with pivot lever on front door
· 120° door opening angle on the front door
· 1-point-locking-mechanism on the front door
· Rear wall and side panels are lockable and detachable
· incl. 4 pieces of leveling feet already pre-configured under the rack
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Base with punched out cable entry, covered with screwed metal plate
· Roof with punched out cable entries with plastic covers
· Roof is prepared for fan units (punched out entries)
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 430-750 mm
Special Fetures
· Roof is prepared for fan units (punched out entries)· Lockable pivot lever on front door
· Base with punched out cable entry, covered with screwed metal plate
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 26U |
| Width | 60 cm |
| Depth | 80 cm |
| Height | 133 cm |
| Colour | Black, RAL 9005 |
| Miscellaneous | |
| Features | Glass front door |
| Compliant Standards | IP20 |
Features - Digitus - DN-19 26U-6/8-DB
More Details
Product Code
03:166911
EAN Code
4016032350293
Manufacturer
Digitus
