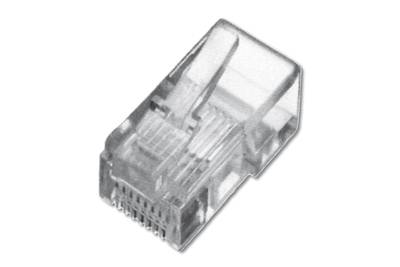

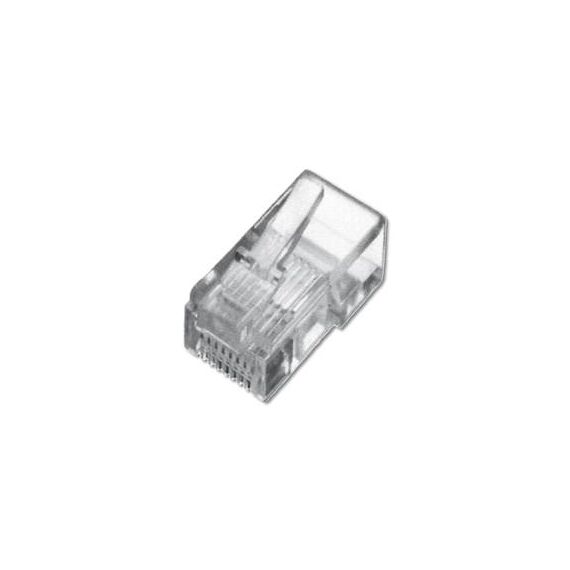

DIGITUS Professional / Network connector / RJ-45 (M) | A-MO 8/8 SR
A-MO 8/8 SR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Layout performance: CAT 5e, 10/100Base-T, 1GBase-T· Area of application: Patch cable assembly
· Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· UL certified
· Technical properties:
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Material connector body: Polycarbonat, clear
· Connector contact: Phosphor bronze, brass 0.6 gold-plated
· Flammability: UL 94V-2
· Physical properties:
· Insertion force: 30 N
· Diameter Cu-Conductor: AWG (27/7 ... 24/7)
· Operating temperature: -40 °C to +80 °C
· Current carrying capacity: 1A -1.5A at 50 °C
Product Specification
| Network Cable Type | Network connector |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
Features - Digitus - A-MO 8/8 SR
More Details
Product Code
04:97865
EAN Code
4016032065173
Manufacturer
Digitus
