DIGITUS Professional Unique DN-19 09-U-SW - Rack cabinet - black, RAL 9005 - 9U - 19" | DN-19 09-U-SW
DIGITUS Professional Unique DN-19 09-U-SW - Rack cabinet - black, RAL 9005 - 9U - 19" | DN-19 09-U-SW
€319.15 inc. VAT
DN-19 09-U-SW
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

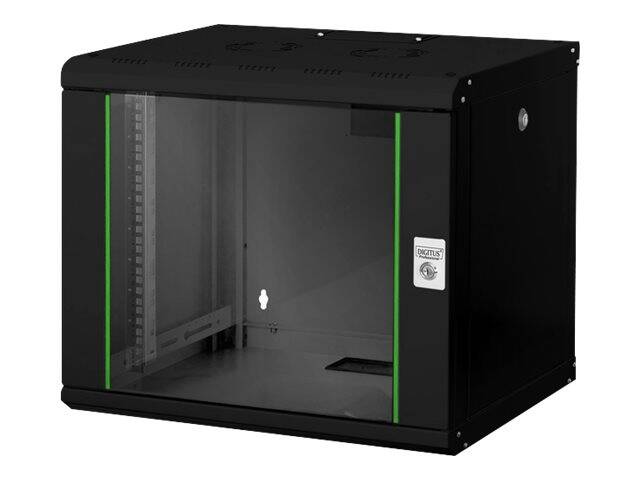

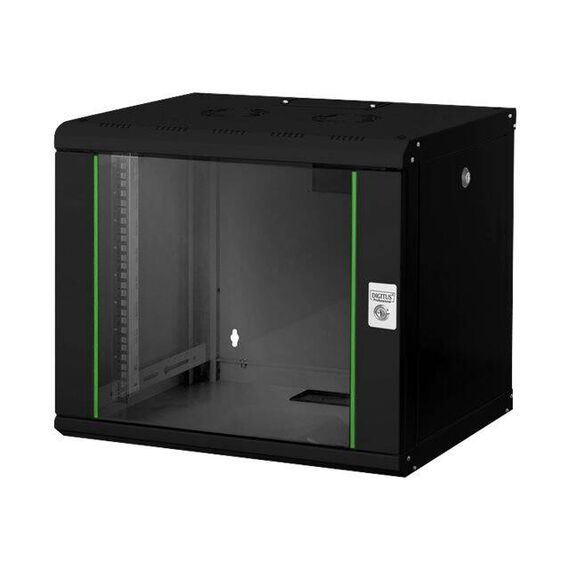

· Safety class rating IP20· Lockable safety-glass door with steel frame
· 210° door opening angle
· 1-point-locking-mechanism on the front door
· Side panels are lockable and removable
· 483 mm (19) profile rails mounted on the front side inside of the cabinet, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Max. installation depth: 370 mm
· Cable entry on the rear side and base with plastic cover and top with sliding cover
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 305-370 mm
Special Fetures
· Robust steel construction for sturdy wall mounting· Lockable safety-glass door with steel frame
· Side panels are lockable and removable
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 9U |
| Width | 60 cm |
| Depth | 45 cm |
| Height | 50.9 cm |
| Colour | Black, RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Features | Lockable doors, removable side panels, IP20 protection, 210° opening angle, passive ventilation, lockable side panels |
Features - Digitus - DN-19 09-U-SW
More Details
Product Code
5093849
EAN Code
4016032257653
Manufacturer
Digitus
