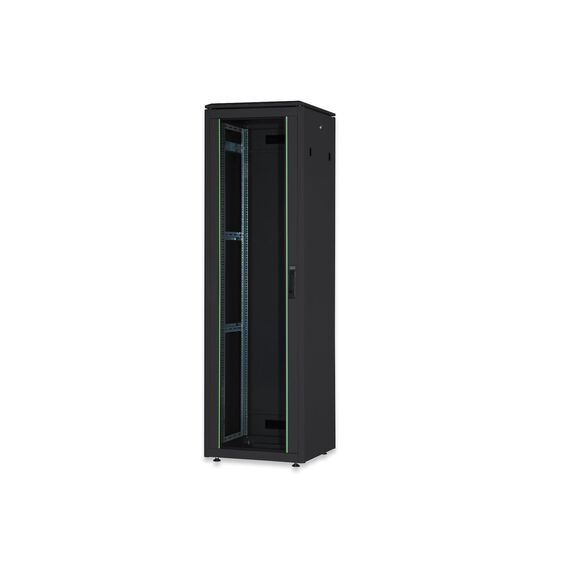

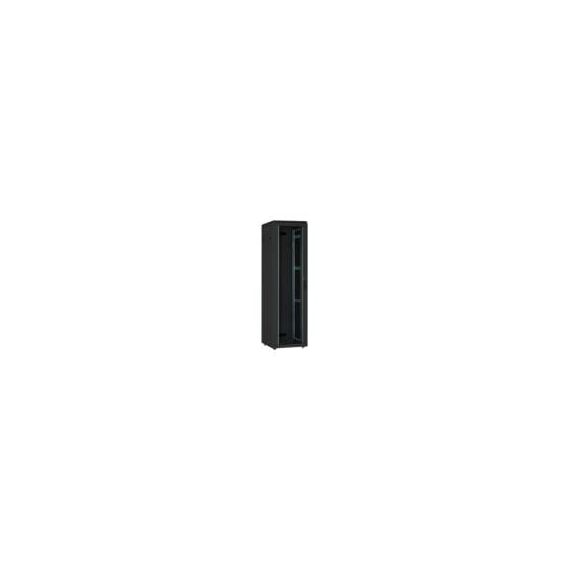

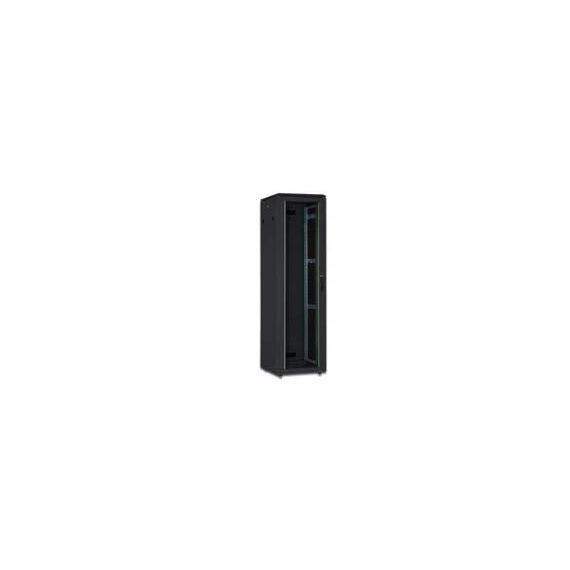

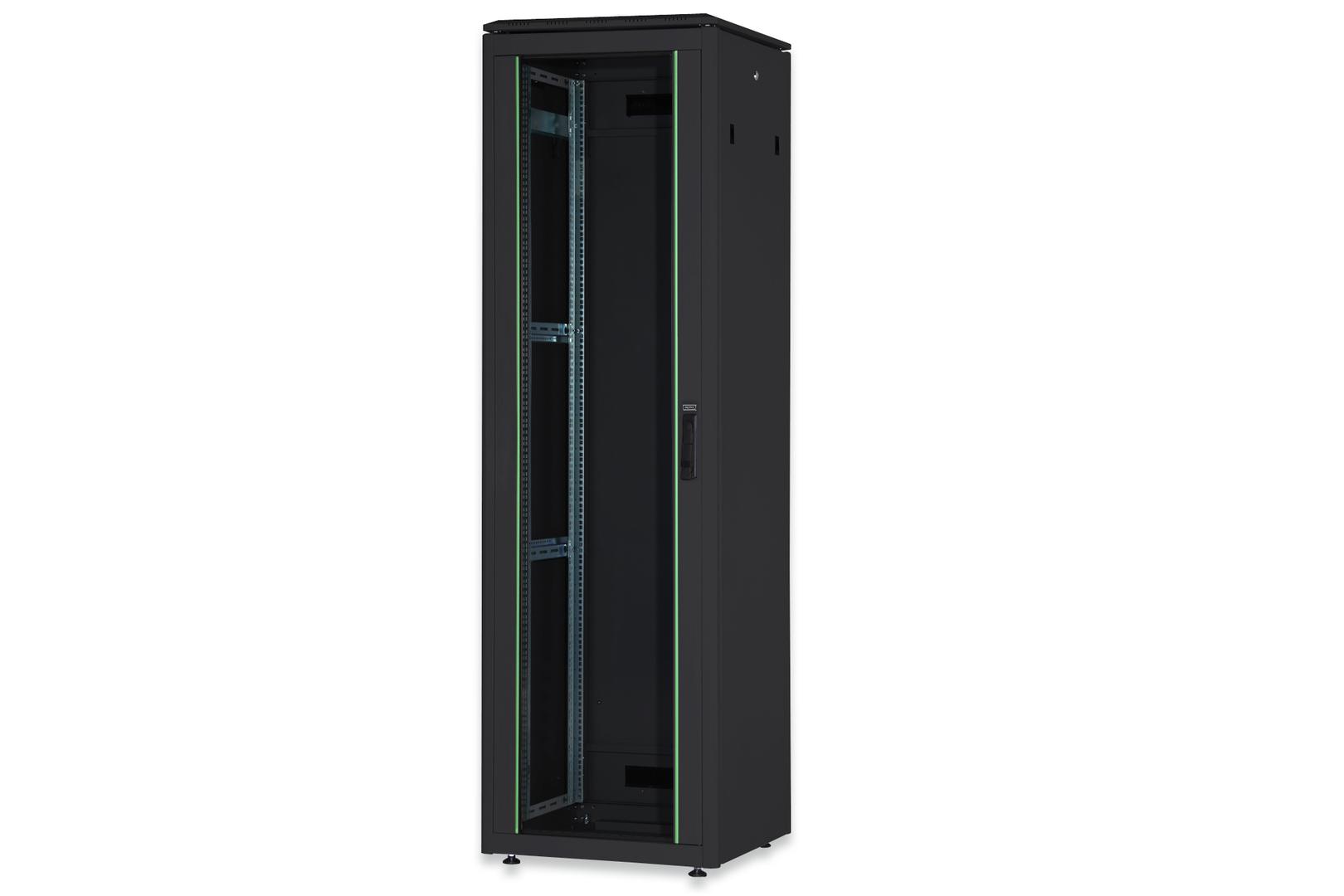

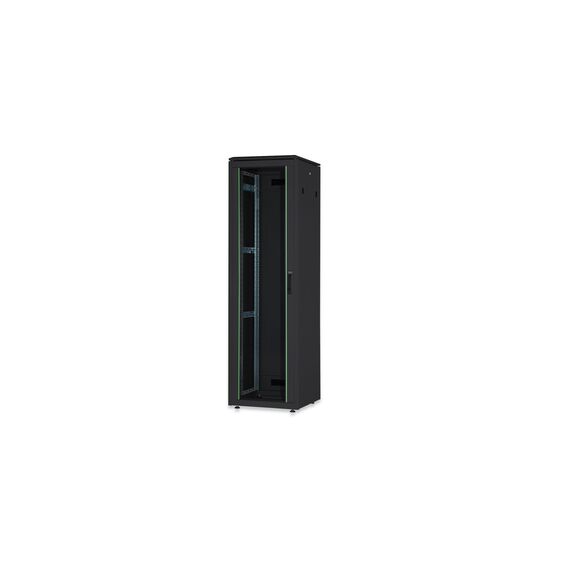

Digitus Unique DN-19 36U-6/6-B-1 - Rack - cabinet - black, RAL 9005 - 36U - 19" | DN-19 36U-6/6-B-1

Product Features

· Safety class rating IP20
· Lateral metal struts front door with safety glass
· Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
· 120° door opening angle on front- and rear doors
· Single wing opening rear door
· Side panels are lockable and removable
· 1-point-locking-mechanism on all doors
· incl. 4 pieces of leveling feet already pre-configured under the rack
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Built-in depth support bars for more stability
· Sliding cable entry with rubber sealing on the base
· Cable entry with brush strip at the top and bottom of the cabinet rear side
· Special roof construction for fan unit with added lid which can be unmounted
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 363-543 mm

Special Fetures

· Special roof construction for fan unit with added lid which can be unmounted
· Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
· Sliding cable entry with rubber sealing on the base

Product Specification

Product Type	Rack
Rack Type	Cabinet
Product Material	Powder-coated steel
Rack Size	19"
Height (Rack Units)	36U
Width	60 cm
Depth	60 cm
Height	178.7 cm
Colour	Black, RAL 9005
Miscellaneous
Weight Limit	600 kg
Features	Lockable rear door, adjustable depth, lockable side panel, removable side panel, glass door
Compliant Standards	IEC 297-1/2, IEC 917-2-1, IP40
