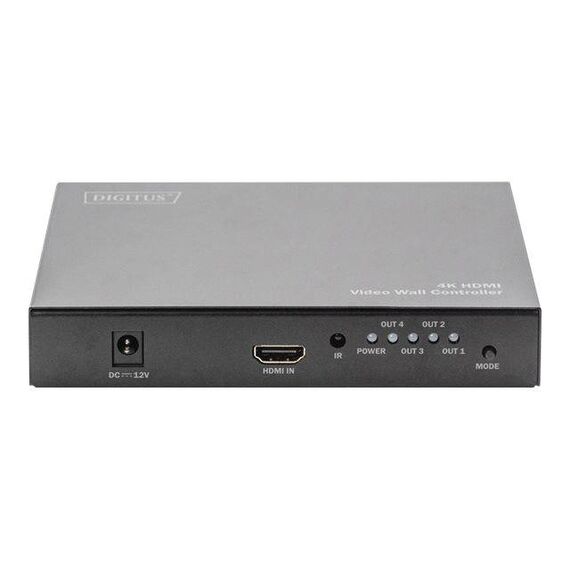

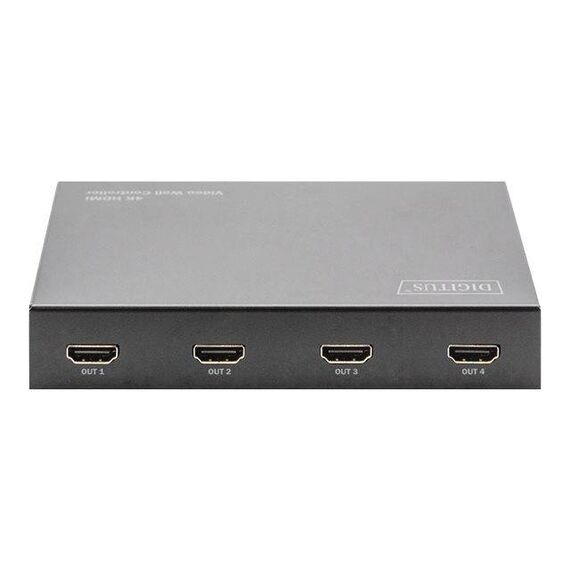

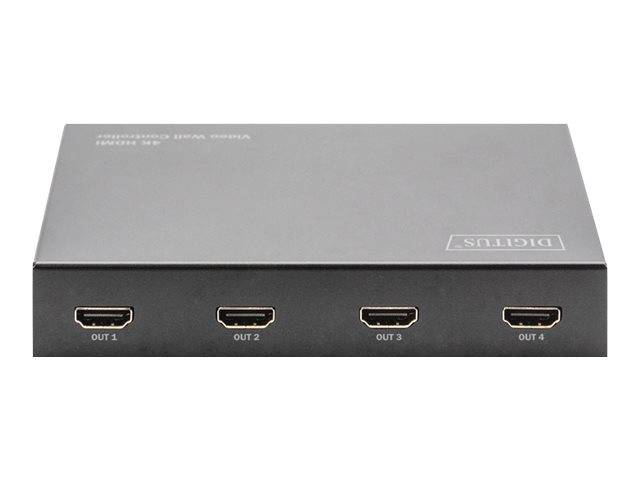

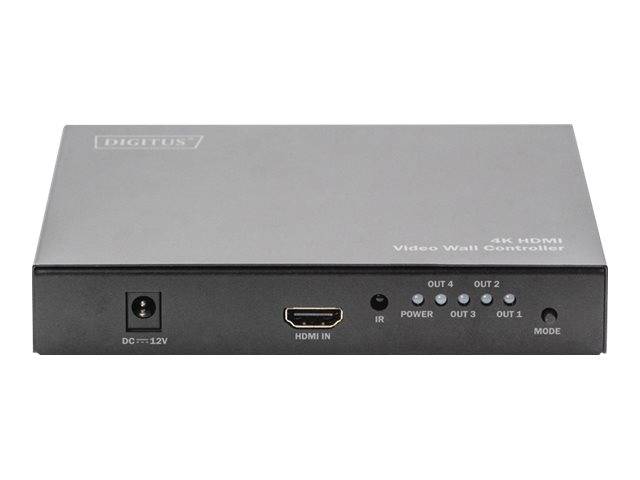

DIGITUS / Video wall controller / HDMI / HDMI / HDMI / 4 x HDMI / black | DS-43309

Product Features

· Resolution HDMI® Input: 1 x 4K / 60 Hz (3840 x 2160p / YUV 4:4:4)
· Resolution HDMI® Outputs: 4 x Full HD / 60 Hz (1920 x 1080p)
· Total bandwidth HDMI®: 18 Gbps (all channels)
· Additional input resolutions supported: 480i, 480p,576p,576i,720p,1080i, 1080p(50/60Hz),4K@24/25/30Hz,4k@50/60Hz
· Supports display formations: 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 (vertical x horizontal)
· Supports display splitter mode: 1x4
· Operating temperature: 0°C ~ 70°C
· Operating humidity: 5% - 90% RH (non-condensing)
· Power supply power adapter: 100 - 240 V AC / 0.65 A
· Power supply device: 12 V / 2 A
· Length of mains cable: ca. 1.2 m
· Case material: Metal
· Dimensions: W 11.5 x D 11.1 x H 2.7 cm
· Weight: 395 g
· Color: Black

Special Features

· Combine up to 4 displays into a video wall of your choice
· Ideal for all kinds of visualizations for display windows, trade fairs or advertising
· Works with any HDMI® Full HD display
· Supports various display formations (horizontal, vertical or combined)
· Supports splitter mode (4 displays with the same content)
· Supports up to 4K / 60 Hz HDMI® input signal (YUV 4:4:4)
· Supports up to 4 x Full HD / 60 Hz (1920 x 1080p) output signals
· Total bandwidth of 18 Gbps for smooth playback in excellent quality
· On Screen Display (OSD) for mode and port display
· High-quality image scaling

Product Specification

Device Type	Video wall controller
Bus Type	HDMI
Max Resolution	3840 x 2160 (4 x 1920 x 1080) at 60 Hz
Max Monitors Supported	4
Interfaces Details	HDMI input ¦ 4 x HDMI output
Features	LED indicators
System Requirements	System Requirements
Voltage Required	AC 100 - 240 V
Miscellaneous	Miscellaneous
Included Accessories	Remote control, power adapter
Width	11.5 cm
Depth	11.1 cm
Height	2.7 cm
Weight	395 g
Enclosure Colour	Black
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
Humidity Range Operating	5 - 90% (non-condensing)
