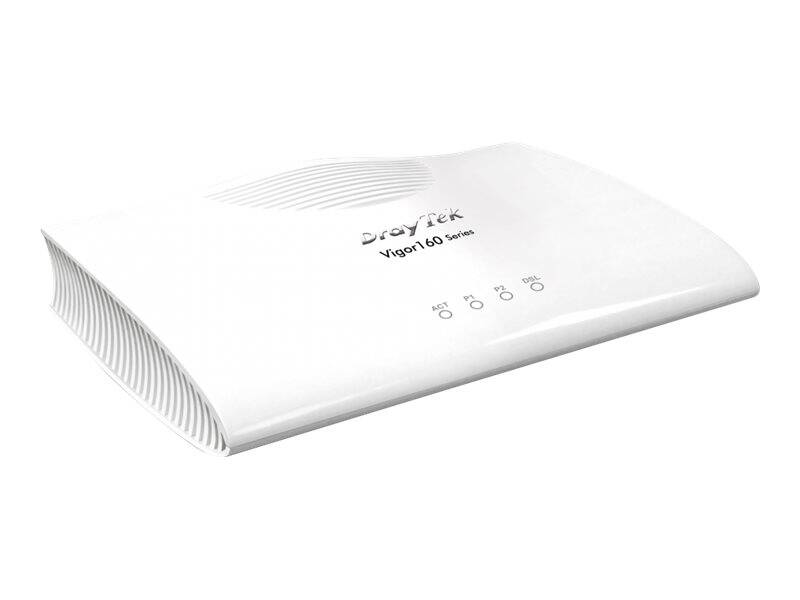

Draytek Vigor 166 / Router / DSL modem / 2-port switch / GigE / wall-mountable | V166-A-GEN2-DE-AT-CH
V166-A-GEN2-DE-AT-CH
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Router - 2-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput: 700 Mbps ¦ NAT throughput with hardware acceleration: 940 Mbps |
| Capacity | MTU: 1508 ¦ NAT sessions: 10000 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, FTP, DHCP, DDNS, DHCPv6, RTSP, IPv4, IPv6 |
| Routing Protocol | IGMP, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104 |
| Features | NAT support, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, ALG support, MAC address filtering, VPN passthrough, URL filtering, firmware upgradable, DDos attack prevention, DHCP server, port forwarding, reset button, anti-spoofing protection, IP-MAC binding, DHCP client, tagged VLAN, Diagnostic Function, IGMP proxy, NTP client, G.INP, loop diagnostic mode, DMZ support, Upstream Power Back-off (UPBO), multiple PVC support, downstream power back-off (DPBO), Point-to-Point Protocol (PPP), IPTV support, PPPoE relay, PPPoA relay |
| Built-in Devices | Led panel |
| Status Indicators | DSL |
| Line Properties | Line Properties |
| Framing Format | ANSI T1.413i2 |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2+, VDSL2, G.fast |
| Protocols & Specifications | Bell 212A, ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.997.1, ITU G.992.5, ITU G.993.1, ITU G.993.2, ITU G.992.3 |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 - RJ-11 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 230V |
| Power Consumption Operational | 6.6 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x RJ-11 phone cable ¦ 1 x network cable |
| Mounting Kit | Included |
| Localisation | Austria, Germany, Switzerland |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18.1 cm |
| Depth | 12.5 cm |
| Height | 4 cm |
| Weight | 280 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Draytek - V166-A-GEN2-DE-AT-CH
More Details
Product Code
04:358845
EAN Code
4710484742612
Manufacturer
Draytek
