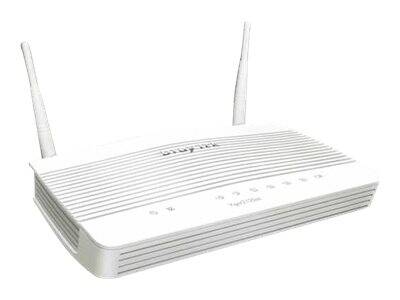

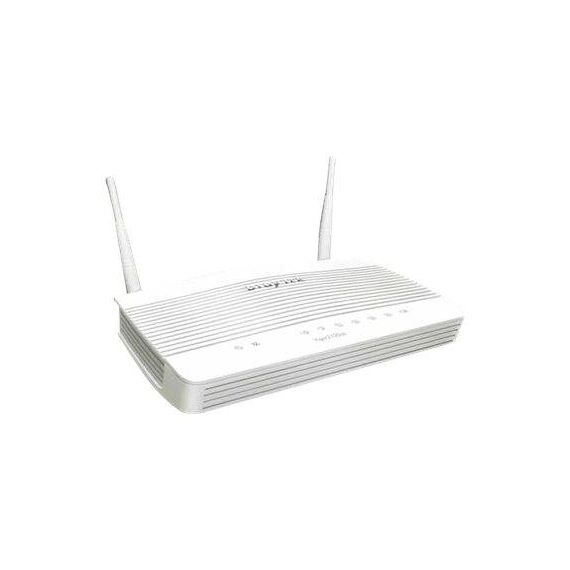

Draytek Vigor 2135AC / Wireless router / 4-port switch / GigE / Wi-Fi 5 | V2135AC-DE-AT-CH
V2135AC-DE-AT-CH
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Gigabit Ethernet WAN port
- 2 USB ports for 3G/4G backup or network storage
- 2 simultaneous VPN tunnels including maximum 2 SSL VPN tunnels
- SPI firewall with content filtering by application, URL keyword, and web category
- Bandwidth management and intelligent VoIP QoS to optimize call quality
- Central management for VigorAP
- Supports DrayDDNS
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Performance | NAT throughput: 500 Mbps ¦ NAT throughput with hardware acceleration: 800 Mbps |
| Capacity | IPv4 routes (static): 30 ¦ IPv6 routes (static): 40 ¦ IP route policies: 10 ¦ Concurrent SSL VPN tunnels: 2 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, Bonjour, DDNS, DHCPv6 |
| Routing Protocol | RIP-1, RIP-2, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, MD5, MPPE, AES, SSL, SHA-1, IKEv2 |
| Authentication Method | RADIUS, PAP, CHAP, X.509 certificates, MS-CHAP, MS-CHAP v.2 |
| Features | IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, E-mail alert, VPN passthrough, firmware upgradable, Access Control List (ACL) support, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), IPSec passthrough, DHCP server, static IP mode, SMS alert, reset button, bandwidth control, port triggering, 3G/4G USB Dongle Support, IP-MAC binding, DHCP client, IGMP proxy, Type of Service (ToS), DiffServ Code Point (DSCP) support, PPTP passthrough, L2TP passthrough, ARP inspection, DMZ support, port-based VLAN, PPPoE client, 2x2 MIMO technology, DHCP over IPSec |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Expansion / Connectivity | Expansion / Connectivity |

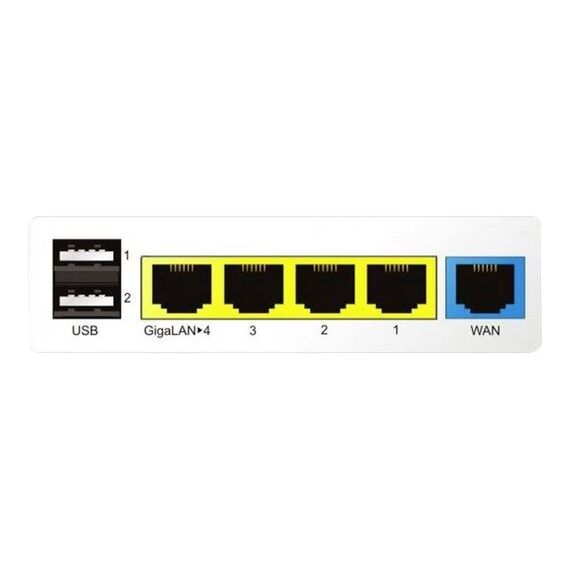

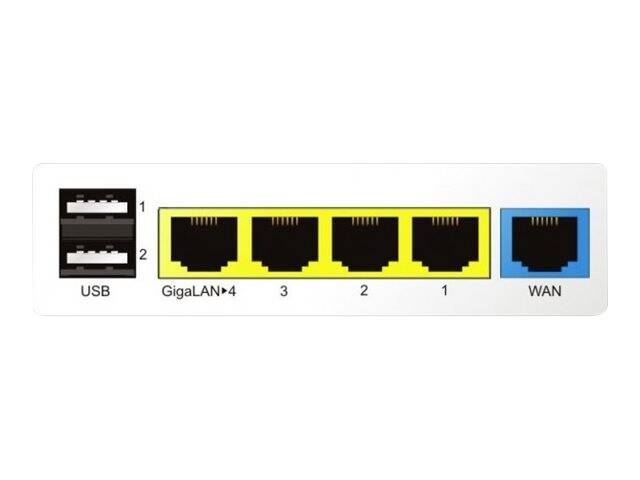

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ Antenna: 2 x SMA |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 2 |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Localisation | Austria, Germany, Switzerland |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20.7 cm |
| Depth | 13.1 cm |
| Height | 4.2 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Draytek - V2135AC-DE-AT-CH
More Details
Product Code
04:358464
EAN Code
4710484742063
Manufacturer
Draytek
