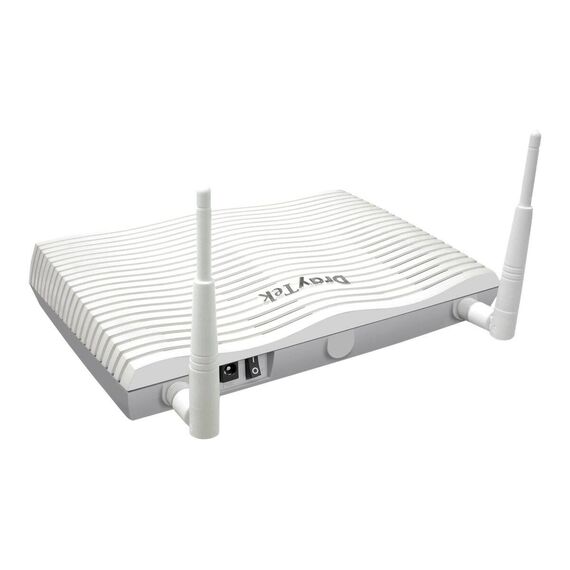

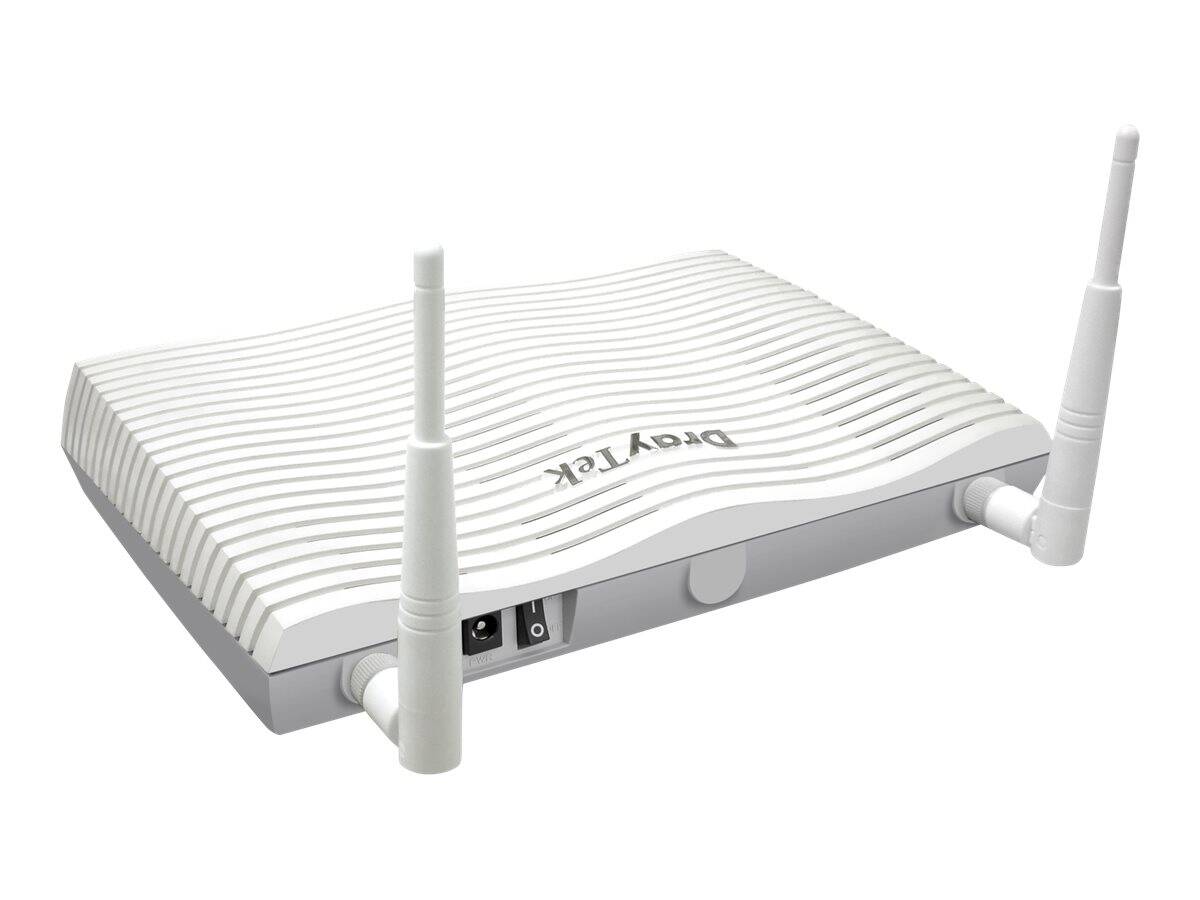

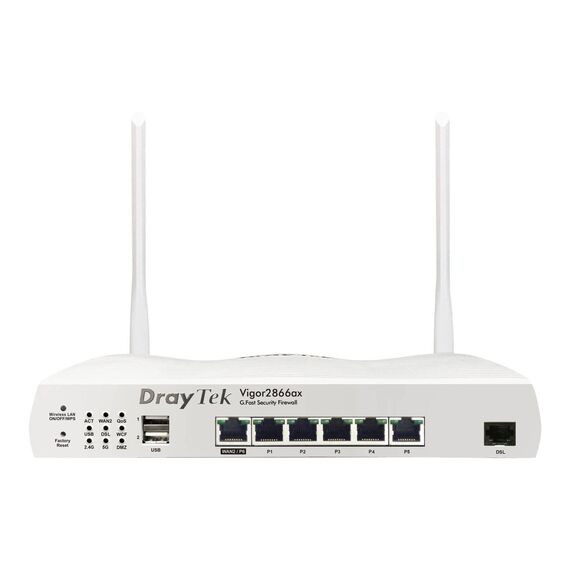

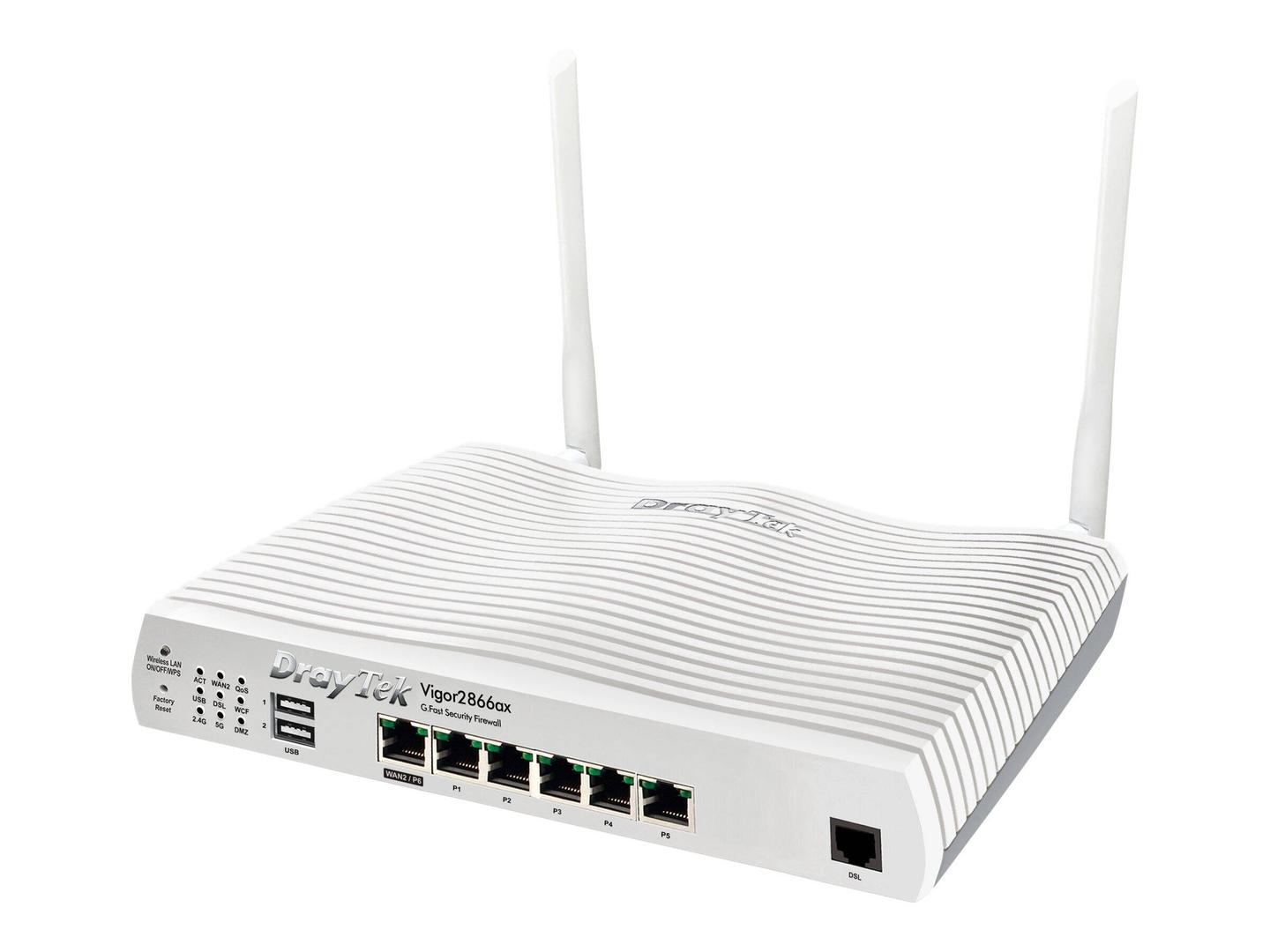

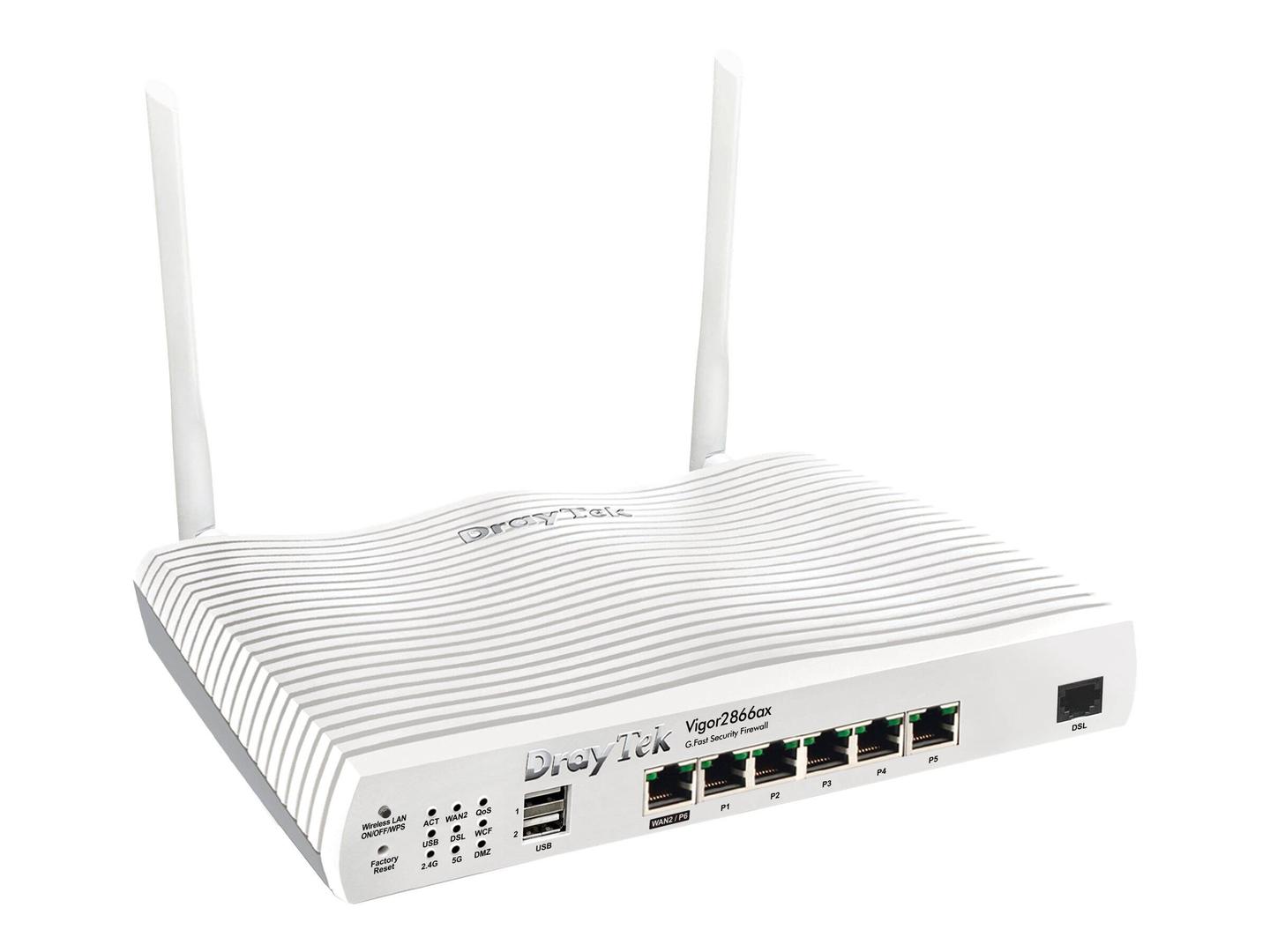

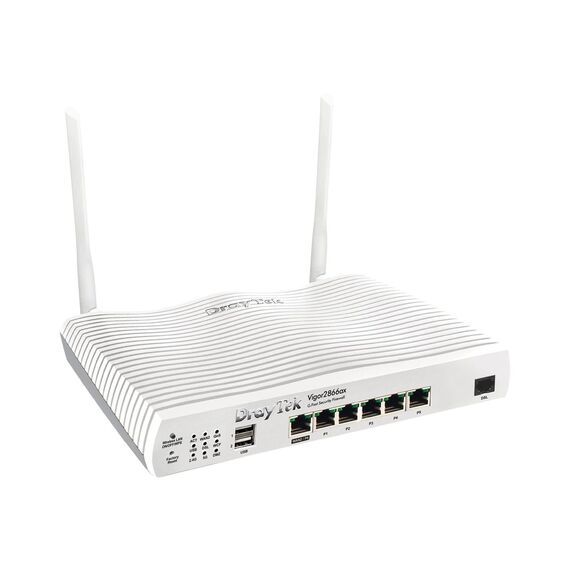

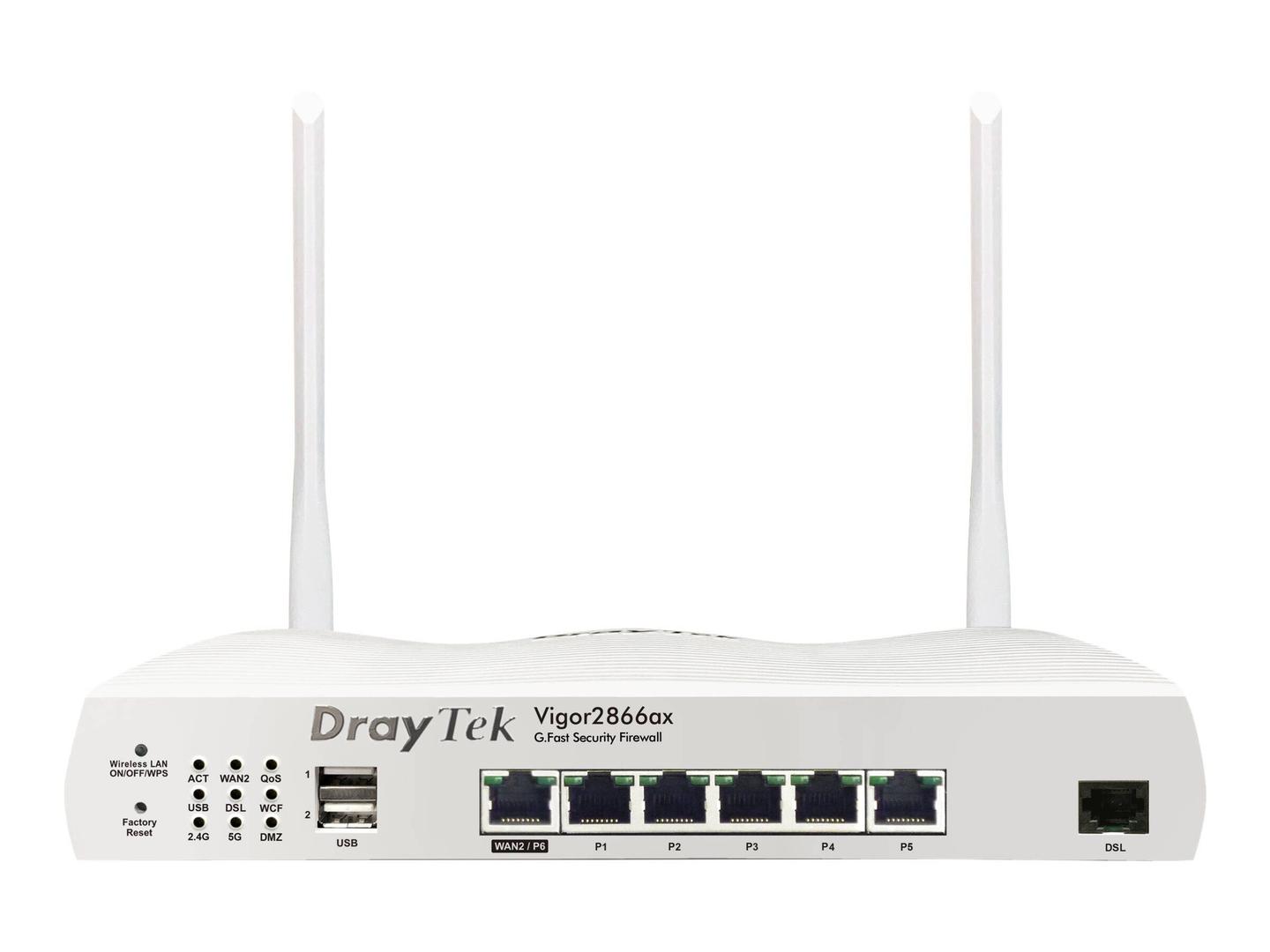

Draytek Vigor 2866ax / Wireless router / DSL modem / 6-port switch / GigE, PPP / WAN ports: 2 / Wi-Fi 6 / Dual Band / wall-mountable | V2866AX-DE-AT-CH
V2866AX-DE-AT-CH
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- G.Fast and Ethernet load balancer
Connect the Vigor 2866 to ultra-fast G.Fast and superfast VDSL2 FTTC with an integrated DSL modem. Load balance with Ethernet WAN and more for greater resiliency and higher throughput. - Robust SMB VPN router
Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support. - Wi-Fi 6 - AX3000 performance
Wi-Fi 6 provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low-latency gaming and handling 4K Ultra-HD streaming, without buffering. - 5+1 Gigabit LAN ports with VLANs
Link the Server, Computers, and Network Attached Storage directly, with up to six Gigabit LAN ports. VLANs allow for as many as eight separate networks with options for Hotspot Captive Portal. - Packed with features
Take advantage of DrayTek's rich feature set and useful functionality such as Quality of Service, Route Policy, VPN Matcher, DrayDDNS and more.
Special Features
- G.Fast and Ethernet load balancer
- Robust SMB VPN router
- Wi-Fi 6 - AX3000 performance
- 5+1 Gigabit LAN ports with VLANs
- Packed with features
Product Specification
| Device Type | Wireless router - 6-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | NAT throughput (with G.fast): 1.3 Gbps ¦ NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput (with VDSL2 35b): 300 Mbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput (total multi-WAN): 1.8 Gbps ¦ NAT throughput without hardware acceleration: 700 Mbps ¦ VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (hardware accelerated IPSec): 800 Mbps ¦ VPN throughput (SSL): 130 Mbps |
| Capacity | Hardware accelerated NAT sessions: 8000 ¦ NAT sessions: 60000 ¦ Concurrent VPN tunnels: 32 ¦ Concurrent SSL VPN tunnels: 16 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, Bonjour, DDNS |
| Routing Protocol | RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104 |
| Encryption Algorithm | DES, Triple DES, MPPE, AES, SSL, SHA-1, IKEv2, 256-bit SHA |
| Authentication Method | RADIUS, X.509 certificates, TACACS+, LDAP, internal user database, XAUTH authentication |
| Wi-Fi Rating | AX3000 |
| Features | Firewall protection, NAT support, VPN support, ARP support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, ALG support, port mirroring, E-mail alert, High Availability, Wireless Distribution System (WDS) support, URL filtering, firmware upgradable, MIMO technology, LAN-to-LAN bridging, Wi-Fi Multimedia (WMM) support, file sharing, Access Control List (ACL) support, IPSec NAT-Traversal (NAT-T), DHCP server, Multiple SSID support, SMS alert, reset button, bandwidth control, DNS server, port triggering, Stateful Packet Inspection Firewall (SPIF), 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, cloud managed, Generic Routing Encapsulation (GRE), Type of Service (ToS), DiffServ Code Point (DSCP) support, MU-MIMO technology, keyword filtering, band steering, failover protection, Web Filtering, policy based routing, Airtime Fairness, client isolation, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, multiple PVC support, DynDNS, WLAN scheduling, WPS button, OpenVPN pass-through, Brute Force Protection |
| Compliant Standards | IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP |
| Built-in Devices | Led panel |
| Status Indicators | WAN, DMZ, link/activity, USB, VPN, DSL |
| Line Properties | Line Properties |
| Framing Format | ANSI T1.413 |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b |
| Protocols & Specifications | ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A, ITU G.993.5 |
| Max Transfer Rate | 300 Mbps |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ USB 2.0: 2 x 4 pin USB Type A |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 2 |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 aerials |
| Cables Included | 1 x network cable - 2 m |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24.1 cm |
| Depth | 16.5 cm |
| Height | 4.4 cm |
| Weight | 780 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
