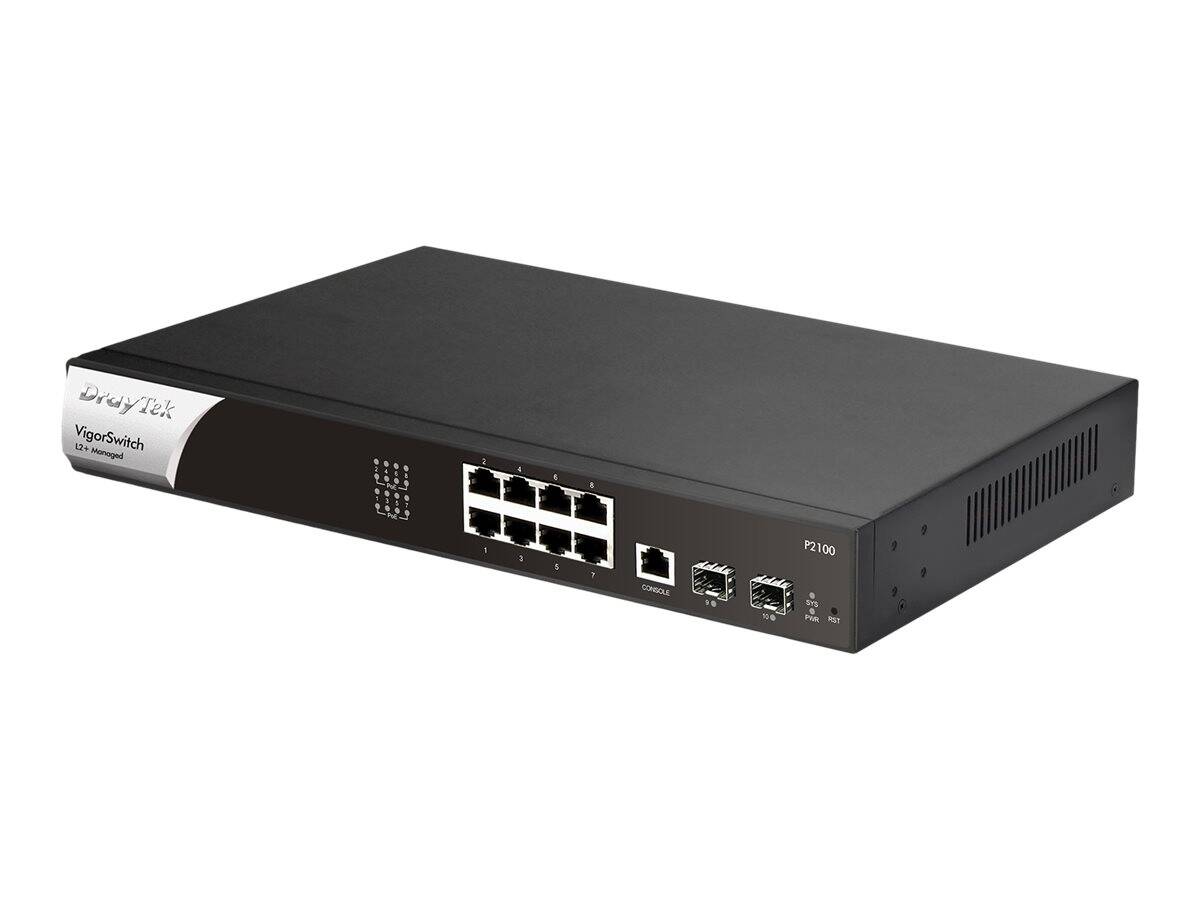

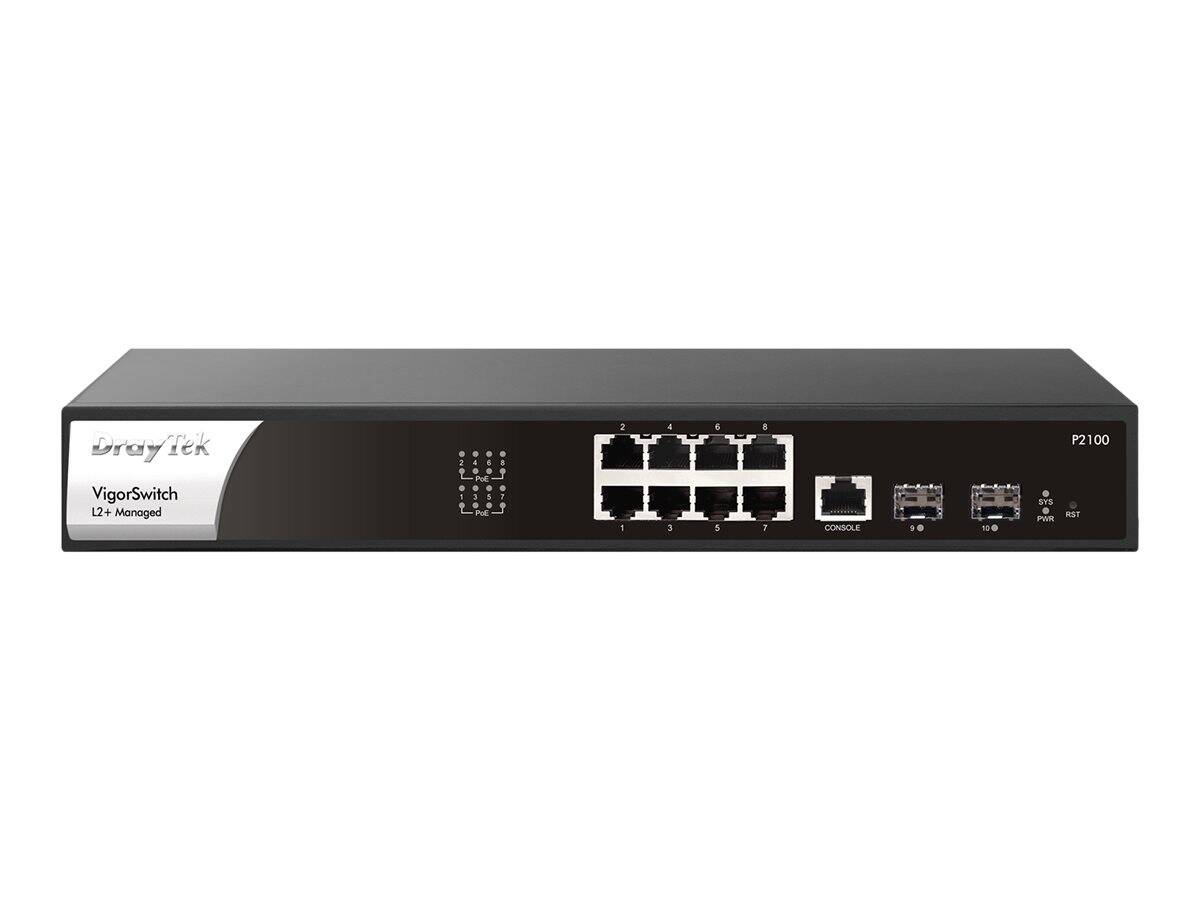

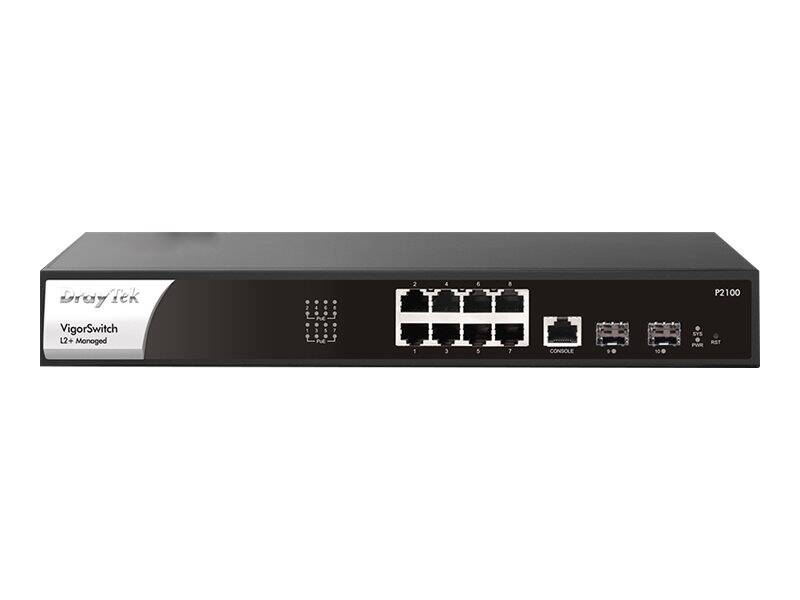

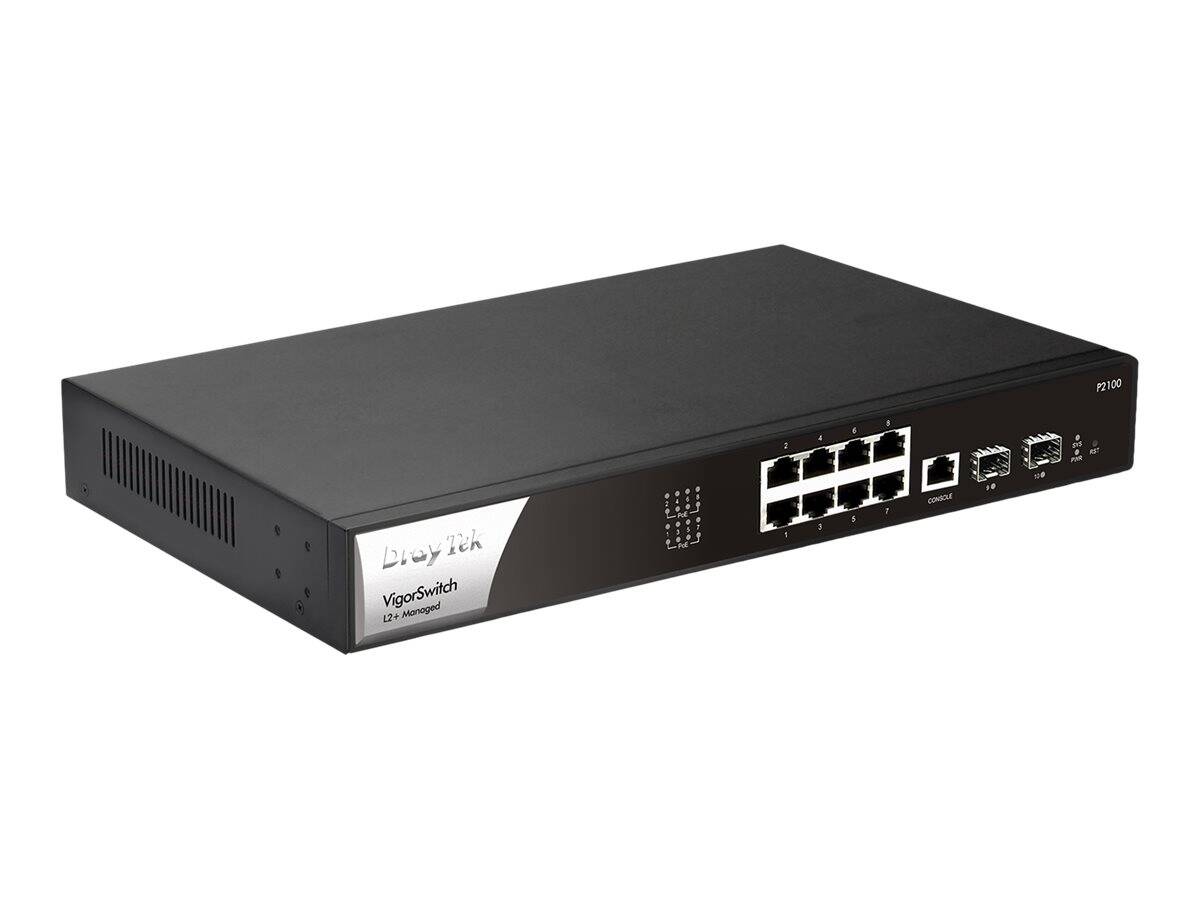

Draytek VigorSwitch P2100 - Switch - L2+ - Managed - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - desktop, rack-mountable - PoE+ (140 W) | VSWITCHP2100-DE-AT-CH
Please sign in so that we can notify you about a reply
Product Features
- PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule. - PoE device check
Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle. - Auto surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. - ONVIF-friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more - Wire-speed VLAN routing
Improve overall network performance by using VigorSwitch P2100 to route the inter-VLAN traffic directly and offload the router. - IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. - Access Control
VigorSwitch P2100 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts. - QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. - IPv6 Ready
VigorSwitch P2100 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. - Web-based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo - Multiple Admin accounts
Multiple Admin accounts with two levels of administrator privilege. - Central switch management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more - Energy-efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Special Fetures
- PoE (Power over Ethernet)
- PoE device check
- Auto surveillance & Voice VLAN
- ONVIF-friendly
- Wire-speed VLAN routing
- IP Conflict Prevention
- Access Control
- QoS (Quality of Service)
- IPv6 Ready
- Web-based GUI
- Multiple Admin accounts
- Central switch management
- Energy-efficient Ethernet
Product Specification
| Device Type | Switch - 10 ports - L2+ - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 140 W |
| Performance | Forwarding performance (64-byte packet size): 14.88 Mpps ¦ Switching capacity: 20 Gbps |
| Capacity | Virtual interfaces (VLANs): 256 ¦ QoS queues: 8 ¦ Total link aggregation groups: 4 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, static IP routing, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), internal user database |
| Features | Flow control, auto-negotiation, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, E-mail alert, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, IPv4 support, LLDP support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), port isolation, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), ONVIF support, DiffServ Code Point (DSCP) support, Protocol-based VLANs support, IP source guard, layer 2+ switching, Link Aggregation, scheduler, rate limit, Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, VLAN management, LLDP-MED, Private MIB, Guest VLAN, Denial of Service (DoS) protection, DSCP based CoS, MAC based VLAN, loopback detection, Unknown Storm Control, 4.1Mbit packet buffer, Address Conflict Detection, OpenVPN client, DSCP based QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP ¦ 1 x console RJ-45 management |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Miscellaneous | |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC |
| Dimensions & Weight | |
| Width | 31.9 cm |
| Depth | 20.8 cm |
| Height | 4.5 cm |
| Weight | 2.61 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Draytek - VSWITCHP2100-DE-AT-CH
General
8-Port
More Details
Product Code
04:458890
EAN Code
4710484742971
Manufacturer
Draytek
