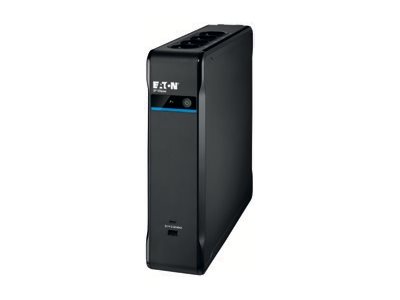

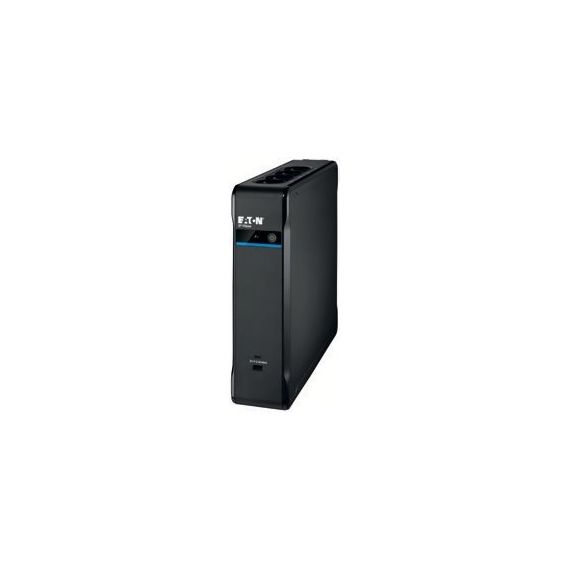

Eaton 3P Ellipse 1700 USB IEC / UPS / AC 220-240 V / 1040 Watt / 1700 VA / USB / output connectors: 8 | 3P1700UI
Eaton 3P Ellipse 1700 USB IEC / UPS / AC 220-240 V / 1040 Watt / 1700 VA / USB / output connectors: 8 | 3P1700UI
€471.05 inc. VAT
3P1700UI
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Effective protection against power surges
This UPS includes built-in surge suppression to safeguard connected devices from voltage spikes and fluctuations, ensuring longevity and performance. - Convenient remote management
The device features a USB management interface that allows users to monitor and manage the UPS remotely, providing convenience and ease of use. - Built for flexibility
With an external form factor, this UPS is easy to position in various environments, making it versatile for home or office setups. - Multiple compliance standards
The product adheres to various standards such as IEC 62040 series and RoHS, ensuring compliance with environmental and safety regulations. - User-friendly maintenance features
The UPS includes a replaceable battery and automatic battery test functionality, facilitating maintenance and consistent performance.
Special Fetures
- Power capacity of 1700 VA
- Compact design with fanless operation
- Quiet sound emission at 25 dB
- Replaceable battery for easy maintenance
- Compliant with multiple international standards
Product Specification
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | Off-line |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 184 - 264 V |
| Input Voltage Range (Adjustable) | AC 160 - 284 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 4 x IEC connector (surge) <br /> 4 x IEC connector (UPS and surge) <br /> 1 x 4 pin USB Type A <br /> 1 x 24 pin USB-C |
| Output Voltage | AC 230 V |
| Power Capacity | 1040 Watt / 1700 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 1 |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Features | Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker |
| Compliant Standards | IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB |
| Software / System Requirements | |
| Software Included | Eaton UPS Companion |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years <br /> Limited warranty - battery - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 25 dB |
| Dimensions & Weight | |
| Width | 8.1 cm |
| Depth | 30.5 cm |
| Height | 31.2 cm |
| Weight | 7.8 kg |
Features - Eaton Power Quality - 3P1700UI
More Details
Product Code
CO16891
EAN Code
3553340621451
Manufacturer
Eaton Power Quality
