Eaton 3P Ellipse 700 IEC / UPS / AC 220-240 V / 420 Watt / 700 VA / output connectors: 4 | 3P700I
Eaton 3P Ellipse 700 IEC / UPS / AC 220-240 V / 420 Watt / 700 VA / output connectors: 4 | 3P700I
€168.19 inc. VAT
3P700I
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient performance
Designed to operate within a temperature range of 0°C to 40°C, ensuring reliable functionality for various applications. - Quiet operation
The fanless design results in a low sound emission of 25 dB, making it suitable for noise-sensitive environments. - Flexible power options
Equipped with features such as a replaceable battery and cold-start function, accommodating various user needs. - Robust protection
Includes a circuit breaker for enhanced safety and surge suppression, protecting devices from electrical damage. - Compliance and safety
Meets various international safety and environmental standards, including IEC 62040-1 and RoHS certifications.
Special Features
- Operates quietly with a sound emission of 25 dB
- Provides output power of 420 watts for reliable support
- Includes replaceable battery and cold-start function
- Compliant with multiple safety and environmental standards
- Features surge suppression for added protection
Product Specification
| Device Type | UPS - external |
| Power Device | Power Device |
| UPS Technology | Off-line |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 184 - 264 V |
| Input Voltage Range (Adjustable) | AC 160 - 284 V |
| Frequency Required | 50/60 Hz |

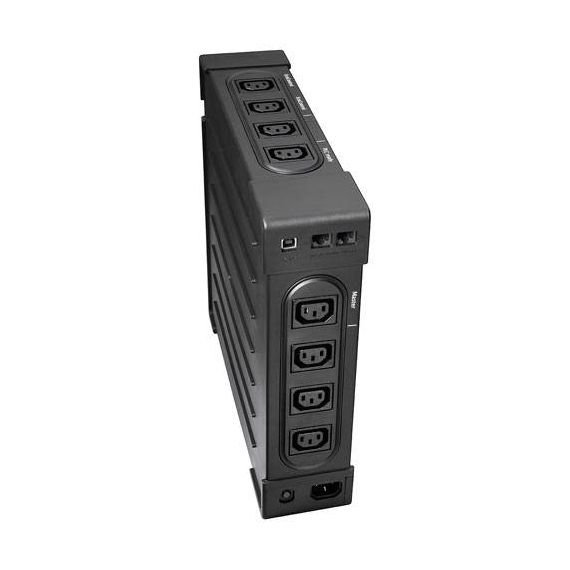

| Power Output Connectors Details | 1 x IEC connector (surge) 3 x IEC connector (UPS and surge) |
| Output Voltage | AC 230 V |
| Power Capacity | 420 Watt / 700 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | Battery |
| Quantity | 1 |
| Miscellaneous | Miscellaneous |
| Features | Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker |
| Compliant Standards | IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years Limited warranty - battery - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 25 dB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.1 cm |
| Depth | 23.5 cm |
| Height | 26.3 cm |
| Weight | 3.7 kg |
Features - Eaton Power Quality - 3P700I
More Details
Product Code
CO16869
EAN Code
3553340621291
Manufacturer
Eaton Power Quality
