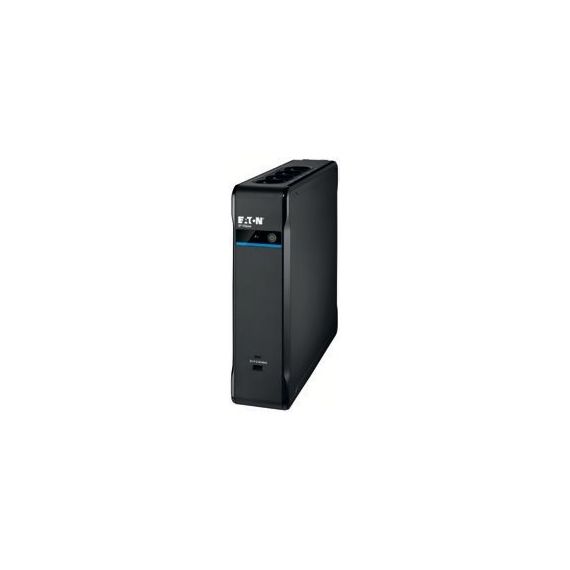

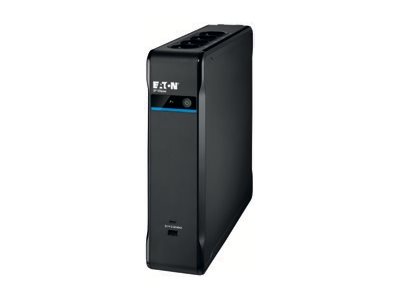

Eaton 3P Ellipse 900 USB DIN/IT / UPS / AC 220-240 V / 540 Watt / 900 VA / USB / output connectors: 4 | 3P900UD
Eaton 3P Ellipse 900 USB DIN/IT / UPS / AC 220-240 V / 540 Watt / 900 VA / USB / output connectors: 4 | 3P900UD
€238.96 inc. VAT
3P900UD
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Compact design
The external form factor of the Eaton 3P Ellipse allows for easy integration in various environments, providing flexibility without sacrificing space. - Advanced protection
Equipped with surge suppression and a circuit breaker, this UPS offers robust protection against power fluctuations and electrical surges, safeguarding connected devices. - Efficient power management
With a power output of 540 watts and an input voltage range adjustable from AC 160 to 284 V, this unit ensures devices receive consistent and stable power. - Easy monitoring
The management interface via USB allows for straightforward monitoring and management of the UPS status, facilitating proactive power management. - Reliable performance
The deep discharge protection and automatic battery test features ensure that the unit operates effectively, providing peace of mind during power outages.
Special Fetures
- Power capacity of 900 VA for reliable backup
- Quiet operation with sound emission at 25 dB
- Includes a replaceable battery for easy maintenance
- Equipped with surge suppression and circuit protection
- Compatible with a remote management interface via USB
Product Specification
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | Off-line |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 184 - 264 V |
| Input Voltage Range (Adjustable) | AC 160 - 284 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x DIN (surge) <br /> 3 x DIN (UPS and surge) <br /> 1 x 4 pin USB Type A <br /> 1 x 24 pin USB-C |
| Output Voltage | AC 230 V |
| Power Capacity | 540 Watt / 900 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 1 |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Features | Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker |
| Compliant Standards | IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKCA, CB, UKR |
| Software / System Requirements | |
| Software Included | Eaton UPS Companion |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years <br /> Limited warranty - battery - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 25 dB |
| Dimensions & Weight | |
| Width | 8.1 cm |
| Depth | 23.5 cm |
| Height | 26.3 cm |
| Weight | 4.4 kg |
Features - Eaton Power Quality - 3P900UD
More Details
Product Code
CO16888
EAN Code
3553340621352
Manufacturer
Eaton Power Quality
