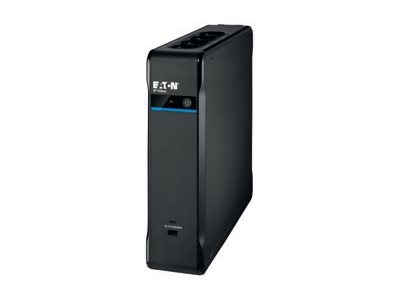

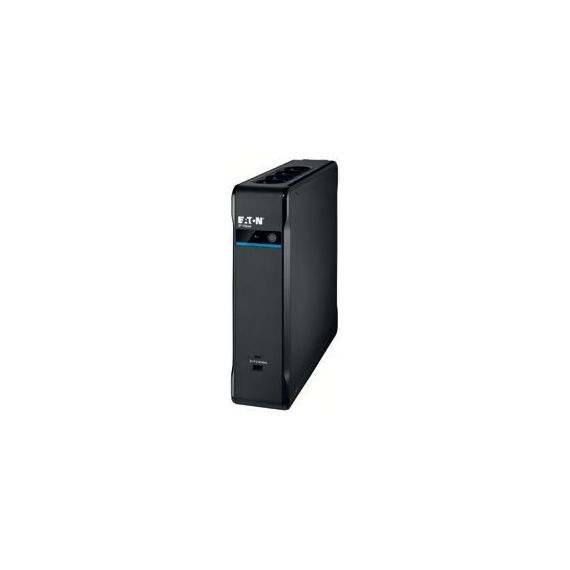

Eaton 3P Ellipse 900 USB IEC / UPS / AC 220-240 V / 540 Watt / 900 VA / USB / output connectors: 4 | 3P900UI

Product Features
- Reliable power protection
The Eaton 3P Ellipse UPS maintains a constant voltage of AC 230 V while providing a power output of 540 watts, ensuring that connected devices remain operational during outages or fluctuations. - Quiet operation
With a sound emission level of only 25 dB, this UPS remains unobtrusive, making it suitable for use in noise-sensitive environments such as offices or libraries. - Flexible connectivity
Equipped with four output connectors including two types of USB ports, this UPS allows for diverse device compatibility and easy management through its USB interface. - Enhanced protection features
The UPS is designed with surge suppression and includes circuit breaker protection, safeguarding connected devices from potential electrical damage. - Environmental compliance
This UPS complies with various standards including IEC 62040-3 and RoHS, reflecting a commitment to safety, performance, and environmental responsibility.
Special Fetures
- Power capacity of 900 VA for reliable performance
- Internal expansion slot for future upgrades
- Noise emission of only 25 dB for quiet operation
- Replaceable battery enhances longevity
- Compliance with multiple safety and environmental standards
Product Specification
Device Type | UPS - external |
Power Device | |
UPS Technology | Off-line |
Input Voltage | AC 220-240 V |
Input Voltage Range | AC 184 - 264 V |
Input Voltage Range (Adjustable) | AC 160 - 284 V |
Frequency Required | 50/60 Hz |
Power Output Connectors Details | 1 x IEC connector (surge) <br /> 3 x IEC connector (UPS and surge) <br /> 1 x 4 pin USB Type A <br /> 1 x 24 pin USB-C |
Output Voltage | AC 230 V |
Power Capacity | 540 Watt / 900 VA |
Surge Suppression | Yes |
Circuit Protection | Circuit breaker |
Battery | |
Quantity | 1 |
Networking | |
Remote Management Interface | USB |
Expansion / Connectivity | |
Interfaces | 1 x management (USB) - 4 pin USB Type B |
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Miscellaneous | |
Features | Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker |
Compliant Standards | IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKR, UKCA, CB |
Software / System Requirements | |
Software Included | Eaton UPS Companion |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years <br /> Limited warranty - battery - 2 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Sound Emission | 25 dB |
Dimensions & Weight | |
Width | 8.1 cm |
Depth | 23.5 cm |
Height | 26.3 cm |
Weight | 4.4 kg |
