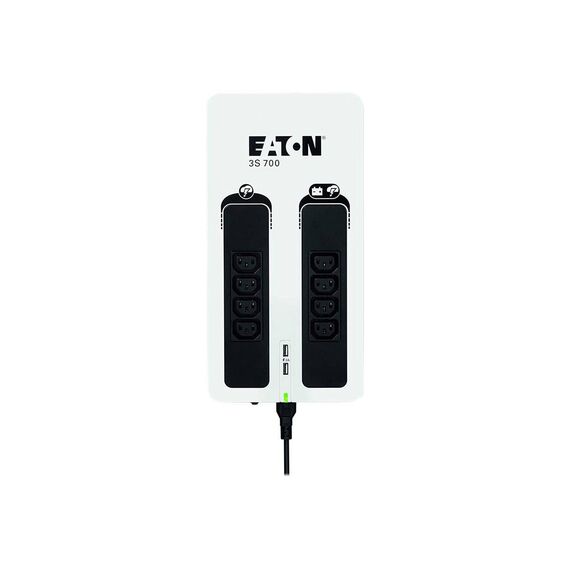

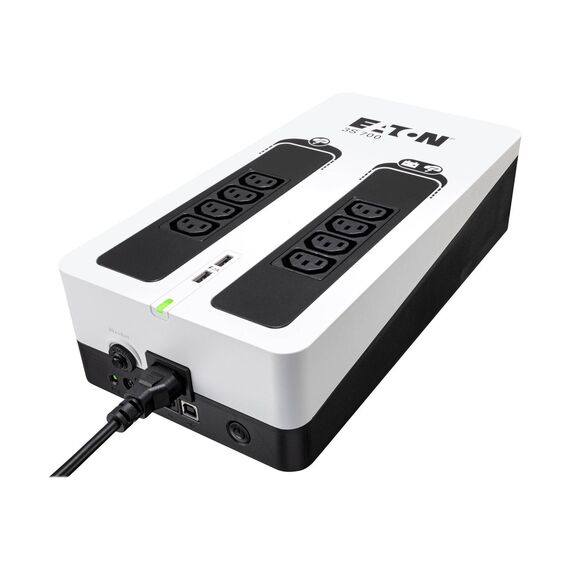

Eaton 3S 700 / UPS / AC 220-240 V / 420 Watt / 700 VA / 1-phase / USB / output connectors: 8 | 3S700I

Special Features

Power: 700 VA / 420 watts
8 IEC output sockets: 4 sockets with autonomy and surge arrester + 4 sockets with surge arrester only
Autonomy standard: 20 minutes
Inverter without fan, silent power surge protector (except audible alarm)
2 USB charger ports
1 USB port for software communication

Product Specification

Device Type	UPS - external
Power Device	Power Device
Input Voltage	AC 220-240 V
Input Voltage Range	AC 161 - 284 V
Frequency Provided	50/60 Hz
Input Wiring	1-phase
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60320 C14
Power Output Connectors Details	4 x power IEC 60320 C13 (surge) Â¦ 4 x power IEC 60320 C13 (UPS and surge) Â¦ 2 x 4 pin USB Type A 2 A
Output Voltage	AC 220/230/240 V 50/60 Hz
Max Electric Current	10 A
Power Capacity	420 Watt / 700 VA
Dataline Surge Protection	Network/phone line - 1 input line / 1 output line
Surge Suppression	Yes
Circuit Protection	Circuit breaker
Battery	Battery
Technology	Lead Acid
Networking	Networking
Remote Management Interface	USB
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x management (USB)
Miscellaneous	Miscellaneous
Cables Included	2 x power cable Â¦ USB cable
Features	On/off switch, reset button, deep discharge protection, cold-start function
Compliant Standards	CB, IEC 62040-3, IEC 62040-2, EAC, IEC 62040-1, IEC 62040-4, IEC 61643-11, CM, Ukraine
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	40 Â°C
Dimensions & Weight	Dimensions & Weight
Width	17 cm
Depth	33.5 cm
Height	8.6 cm
Weight	4 kg
