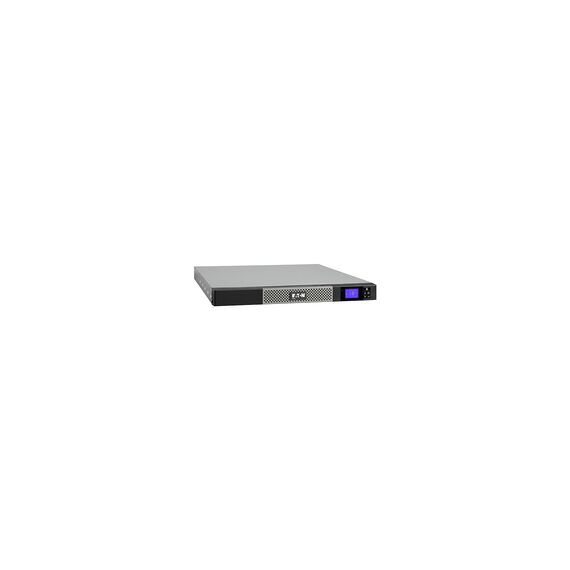

Eaton 5P 1150iR UPS ( rack-mountable ) AC 160-290 V 770 Watt 1150 VA RS-232, USB 6 Output Connector(s) 1U
5P1150IR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Eaton Power Quality 5P1150IR Eaton 5P 1150iR UPS ( rack-mountable ) AC 160-290 V 770 Watt 1150 VA RS-232, USB 6 Output Connector(s) 1U
The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.Feature list
| Output power capacity VA: | 1150 VA |
| Output power: | 770 W |
| Input operation voltage min: | 150 V |
| Input operation voltage max: | 294 V |
| Output operation voltage min: | 200 V |
| Output operation voltage max: | 240 V |
| Power supply input frequency: | 40/70 Hz |
| AC outlets quantity: | 6 |
| AC outlet types: | C13 coupler |
| Power plug: | C14 coupler |
| USB 2.0 ports quantity: | 1 |
| RS-232 ports: | 1 |
| Typical backup time at half load: | 12 min |
| Hot-swap battery: | Y |
| Automatic battery test: | Y |
| Form factor: | Rackmount |
| Rack mounting: | 1U |
| Colour of product: | Black, Grey |
| Display: | LCD |
| Waveform: | Sine |
| Noise level: | 40 dB |
| Operating temperature T-T: | 0 - 35 °C |
| Safety: | EN 62040-1, UL 1778 |
| Width: | 438 mm |
| Depth: | 509 mm |
| Height: | 43.2 mm |
| Weight: | 14600 g |
Features - Eaton Power Quality - 5P1150IR
More Details
Product Code
Y711602
EAN Code
0743172042927
Manufacturer
Eaton Power Quality
