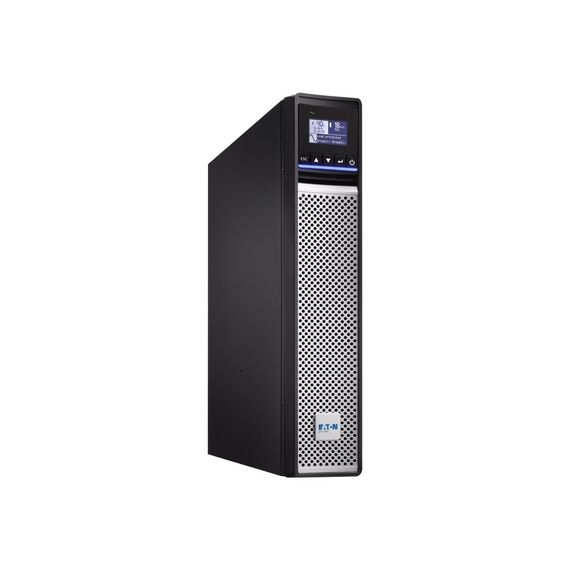

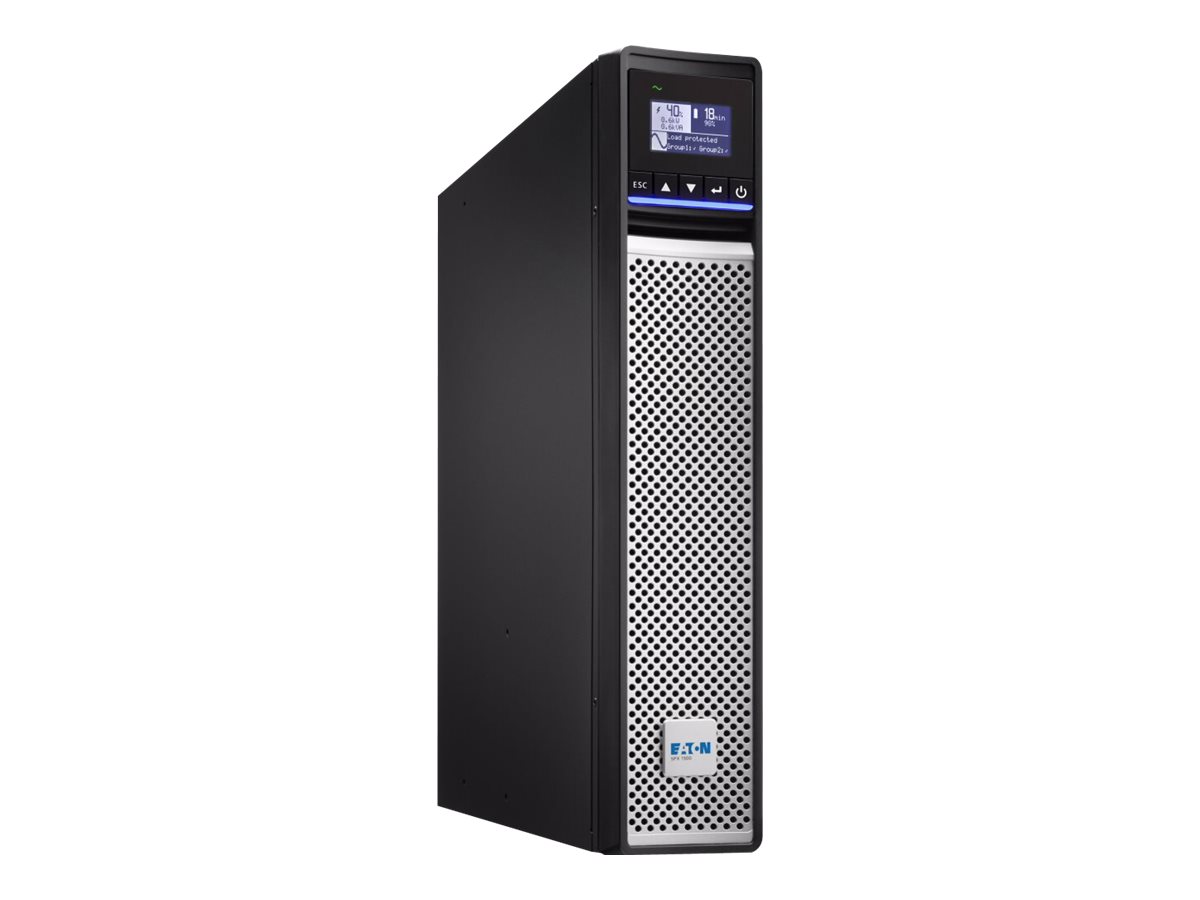

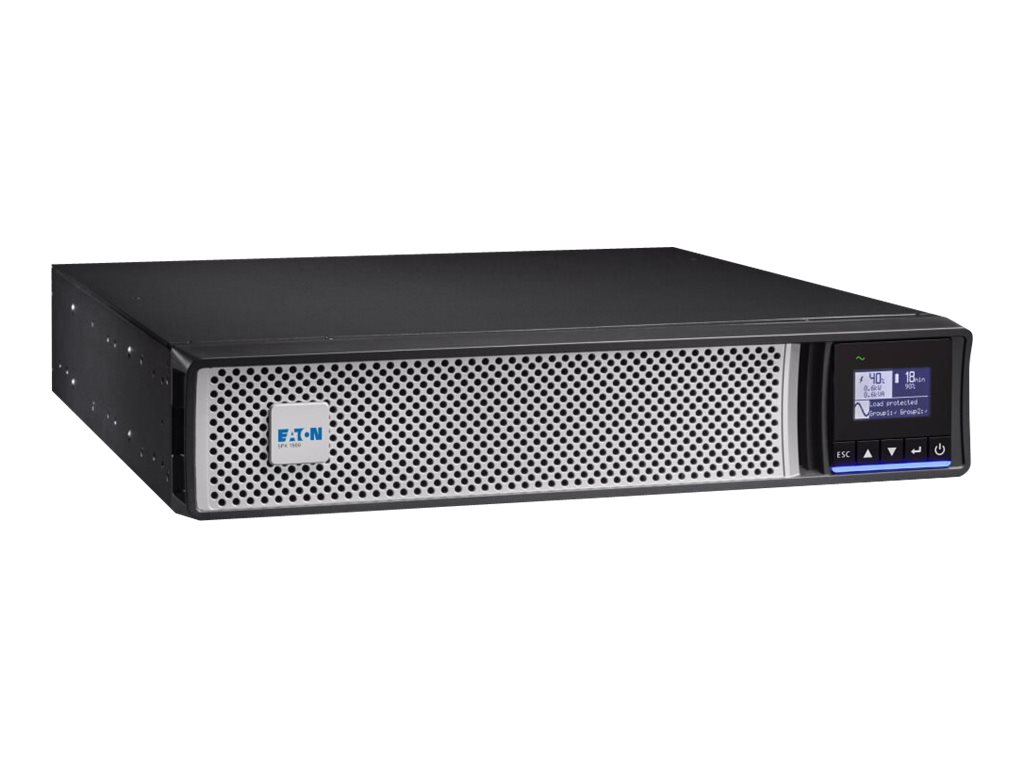

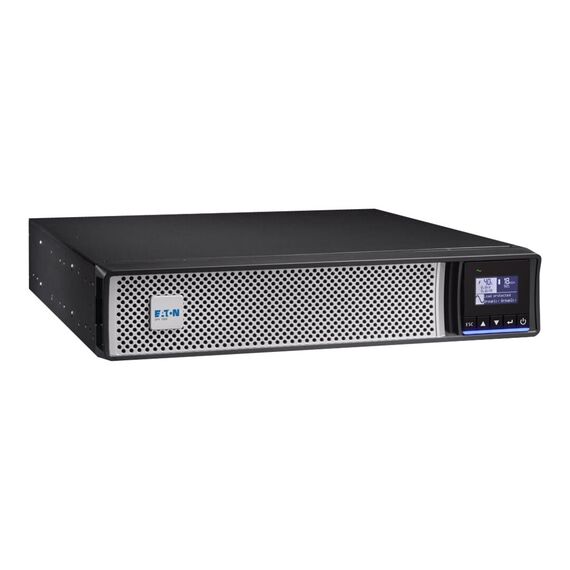

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external) - 1500 Watt - 1500 VA - RS-232, USB, Ethernet 10/100/1000 - output connectors: 8 - 2U | 5PX1500IRTNG2
Please sign in so that we can notify you about a reply
Special Fetures
- Automatic Voltage Regulation (AVR)
- Energy efficient, reduce energy and cooling costs
- Delivers clean sinewave output
- Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
- LCD display for real-time status and measurements
- Network card and rackmounting kit delivered as standard
- Long backup time with up to 4 optional EBM
- Meter energy consumption (down to the managed outlet groups)

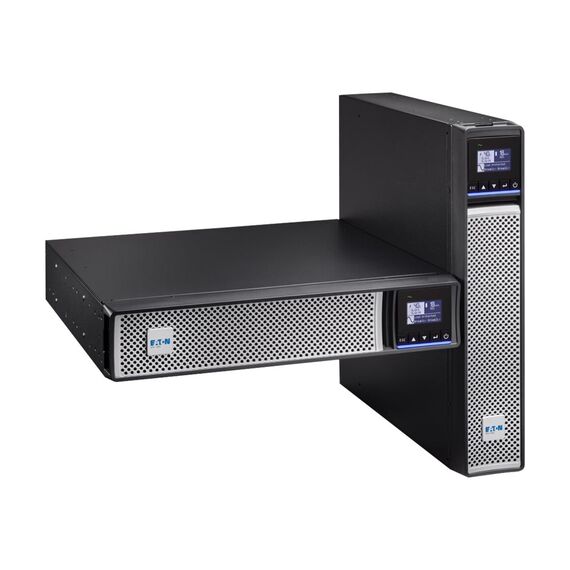

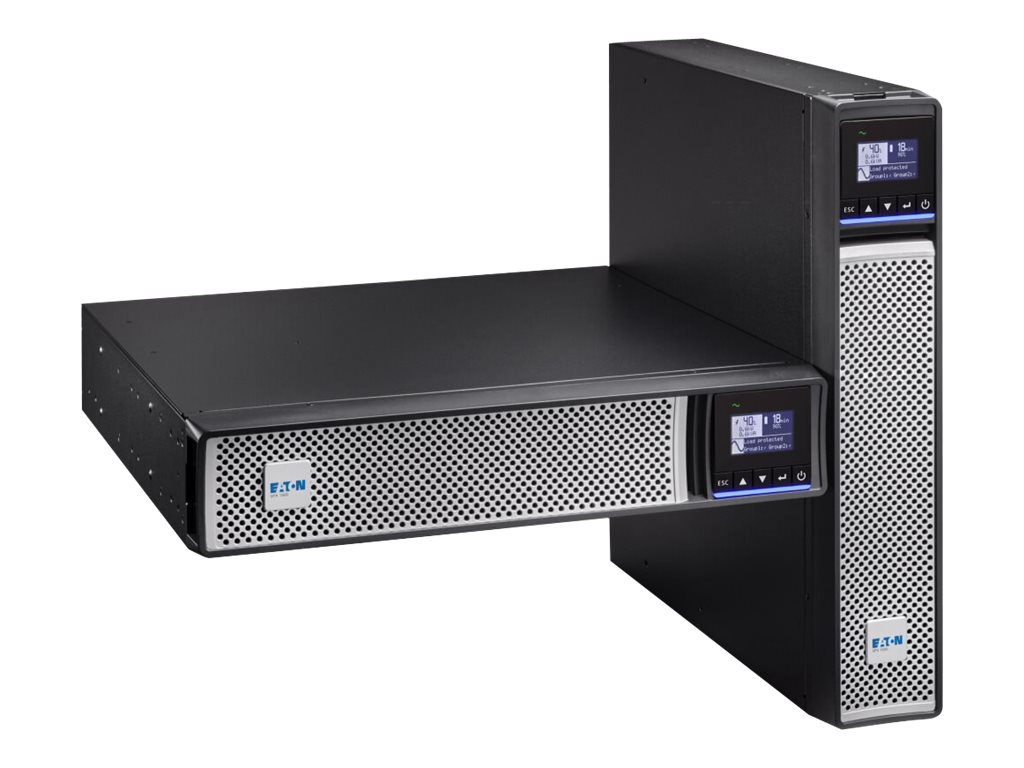

- Versatile product for rack or tower installation
- 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- 1 USB port + 1 serial port
Product Specification
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage Range | AC 160 - 294 V |
| Input Voltage Range (Adjustable) | AC 150 - 294 V |
| Frequency Provided | 50/60 Hz ± 0.1Hz |
| Frequency Required | 47 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Output Voltage | AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz |
| Power Capacity | 1500 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Battery | |
| Run Time (Up To) | 44 min at 300 Watts ¦ 24 min at 500 Watts ¦ 13 min at 800 Watts ¦ 7 min at 1200 Watts |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x Expansion Slot |
| Miscellaneous | |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| Features | Advance Battery Management (ABM), LCD display, hot-swappable batteries |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cTUVus, CSA 22.2, EN 62040-2, EAC, IEC 62040-1, EN 62040-1, UL 2900-1, IEC 62443-4-2, UKCA |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 40 dBA |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 44.8 cm |
| Height | 8.55 cm |
| Weight | 22.4 kg |
