Eaton 5SC 1000i / UPS / AC 230 V / 700 Watt / 1000 VA / RS-232, USB / output connectors: 8 / black | 5SC1000I


Hover over an image to enlarge

(Including VAT)
1 item(s)
Product Code:Y711790
EAN Code:0743172045164
Manufacturer:Eaton Power Quality

Free Store

Delivery within 2-4
business days

2 Years Warranty

Eaton 5SC 1000i / UPS / AC 230 V / 700 Watt / 1000 VA / RS-232, USB / output connectors: 8 / black | 5SC1000I


Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. It includes a LCD interface for real time status and measurement. This unit also possesses the Advanced Battery Management (ABM) technology that increases battery lifetime. It is line interactive with Automatic Voltage Regulation (AVR). With its 8 IEC outputs and compact design the 5SC fits anywhere easily.

Special Features

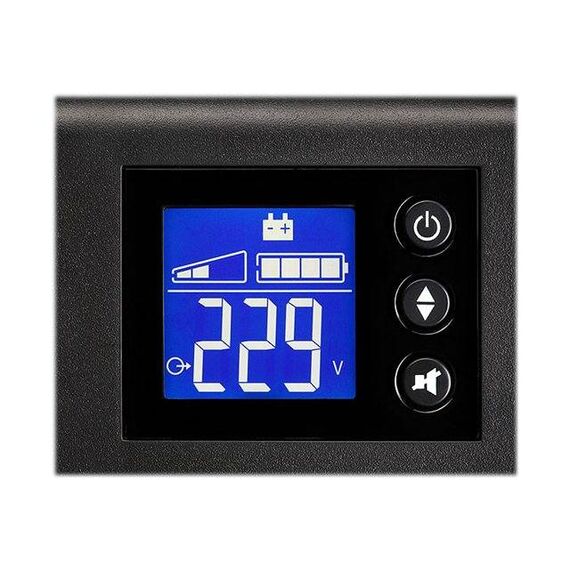

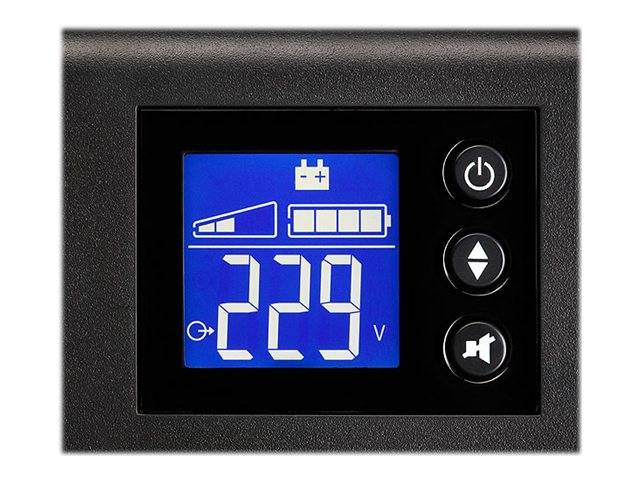

  • LCD interface clearly shows key information
  • Sinewave output for compatibility with today's small business servers
  • Compact design for easy integration even with space constraints and up to eight outlets for better flexibility
  • Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
  • Serial and USB ports are HID compliant for automatic integration into major OS
  • Eaton Intelligent Power software delivered as standard is compatible with all major operating systems

Product Specification

Device Type UPS - external
Colour Black
UPS Technology Line interactive
Input Voltage AC 230 V
Input Voltage Range AC 184 - 276 V
Frequency Provided 50/60 Hz
Frequency Required 50/60 Hz

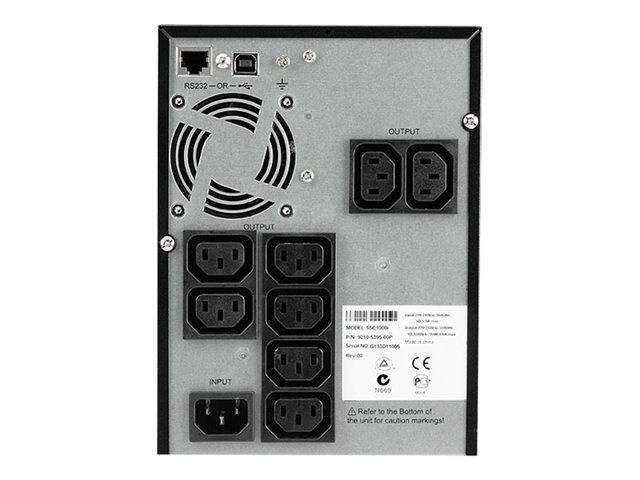

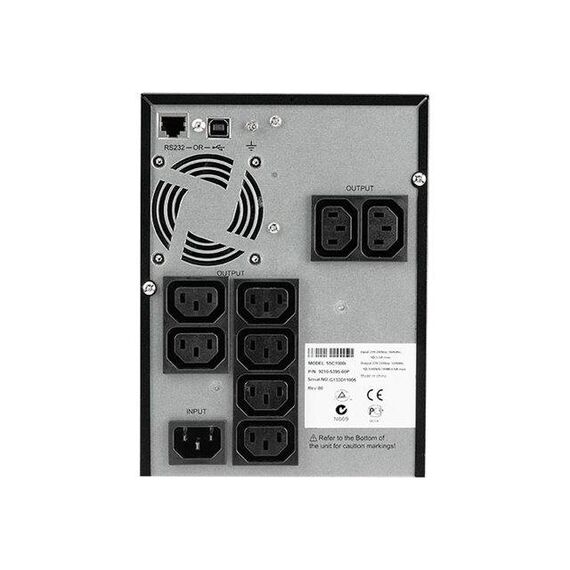

Input Connectors 1 x power IEC 60320 C14
Power Output Connectors Details 8 x power IEC 60320 C13
Output Voltage AC 230 V + 6% / - 10% - 50/60 Hz
Power Capacity 700 Watt / 1000 VA
Output Waveform Sinewave
Efficiency 97%
Run Time (Up To) 5 min at full load ¦ 13 min at half load ¦ 9 min at 70% load
Remote Management Interface RS-232, USB
Interfaces 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)
Features Advance Battery Management (ABM), LCD display, deep discharge protection
Compliant Standards UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Service & Support Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature 0 °C
Max Operating Temperature 35 °C
Sound Emission 40 dB
Width 15 cm
Depth 34 cm
Height 21 cm
Weight 11.1 kg
